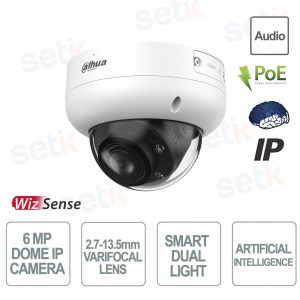

Dahua 6MP Dome IP Camera with 2.7–13.5mm Varifocal Lens, Advanced AI and Smart Dual Light IP67

Dahua 6MP Dome IP Camera with 2.7–13.5mm Varifocal Lens, Advanced AI and Smart Dual Light IP67
BEST PRICE -56% New

IPC-HDBW3649R-ZS-IL - is an IP dome camera with 6MP resolution that offers clear images even in low light conditions thanks to the 1/2.7" CMOS sensor and Smart Dual Light technology with a range of up to 50 meters . Equipped with a 2.7 mm to 13.5 mm vari-focal motorized lens, it guarantees a field of view from 114° to 32°, ideal for professional video surveillance. It supports advanced AI functions such as face detection, perimeter protection and SMD 4.0 to reduce false alarms, with H.265+ compression that optimizes space and bandwidth. Thanks to IP67 certification, integrated microphone and PoE power supply, it is a safe and versatile solution for indoor and outdoor installations. Dahua

Technical Data Sheet

Reference: IPC-HDBW3649R-ZS-IL

Brand: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

IPC-HDBW3649R-ZS-IL | 6MP POE DOME IP CAMERA - 2.7-13.5MM LENS - IP67 PROTECTION


Dahua

The Dahua IPC-HDBW3649R-ZS-IL is a 6MP IP dome camera with a 2.7–13.5 mm varifocal motorized lens, capable of delivering clear images even in low light conditions thanks to Smart Dual Light technology with a range of up to 50 meters. Equipped with advanced AI for face detection, perimeter protection and SMD 4.0, it guarantees reliable security and false alarm reduction. Certified IP67, with a built-in microphone and PoE support, it is an ideal solution for professional video surveillance installations, both indoor and outdoor.

Main specifications:

- 6MP resolution (3288 × 1850) up to 30 fps

- Motorized vari-focal lens 2.7–13.5 mm, FOV 114°–32°

- Smart Dual Light with IR and warm light up to 50 m

- AI: Face Detection, Perimeter Protection, SMD 4.0

- H.265+/H.264+ compression for bandwidth and storage savings

- IP67, built-in microphone, MicroSD support up to 512GB

Further details

Resolution:
The camera offers a maximum resolution of 6MP (3288 × 1850) at up to 30 fps , ensuring clear and detailed images even in low light conditions thanks to the 1/2.7" CMOS sensor.
Optics :
Equipped with a 2.7–13.5 mm vari-focal motorized lens , with F1.4 aperture, it provides a field of view that varies from 114° to 32° , allowing both wide and detailed shots according to needs .
Intelligence :
It supports advanced video analytics (IVS) functions such as perimeter protection, intrusion detection, tripwire, loitering detection and stay detection , reducing false alarms thanks to deep learning algorithms .

Face Detection:
Facial detection technology enables optimized snapshots, face recognition, image enhancement, and saving faces as ID photos, with configurable capture strategies.
Xinghan Large-Scale AI Models-Vision:
Based on next-generation AI models, this technology leverages the integration of edge algorithms and NPU computing power. It enables joint inference across multiple tasks , optimizing resource consumption and improving accuracy in real-time analytics .
Smart Dual Light:
With intelligent illumination, the camera uses basic IR for night vision, activating white LED light upon target detection to record key events in color up to 50 meters away , reducing light pollution .
Audio:
It integrates a built-in microphone with audio compression (G.711a, G.711Mu, PCM, G.726, G.723), enabling synchronized video/audio recording for comprehensive surveillance.
Network camera:
It is an IP camera with PoE support , compatible with standard protocols such as ONVIF and equipped with advanced security (HTTPS encryption, 802.1x, trusted boot). It supports storage on microSD up to 512 GB , NAS or FTP, and can be managed via SmartPSS, DSS software or mobile app .

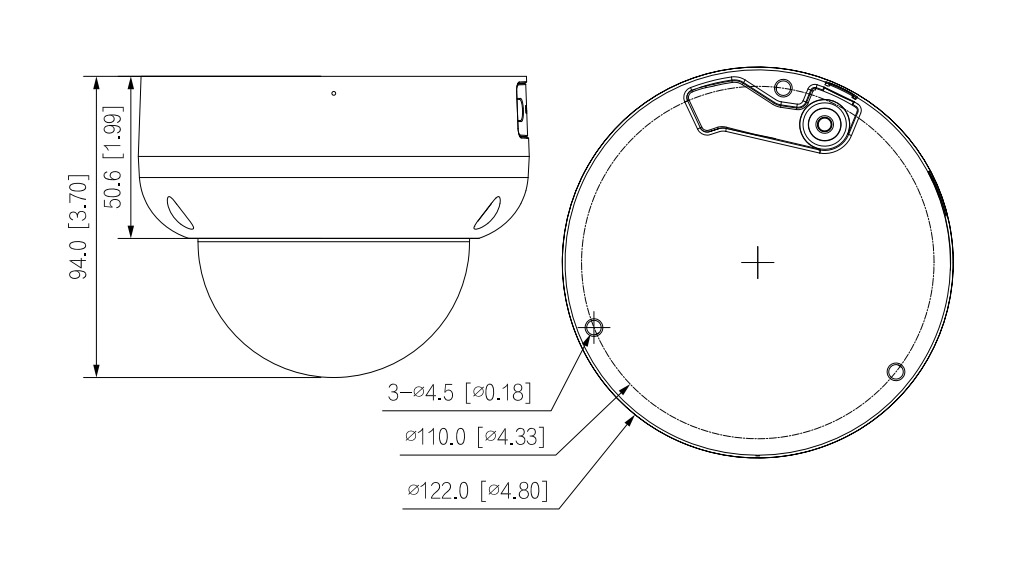

IPC-HDBW3649R-ZS-IL dimensions

Technical data sheet

IPC-HDBW3649R-ZS-IL

Room

Image Sensor

1/2.7" CMOS

Max. Resolution

3288 (H) × 1850 (V)

ROM

256 MB

RAM

1 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.005 lux@F1.4 (Color, 30 IRE)
0.0005 lux@F1.4 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

﹥56 dB

Illumination Distance

Up to 50 m (164.04 ft) (IR)
Up to 50 m (164.04 ft) (Warm light)

Illuminator On/Off Control

Auto; Manual

Illuminator Number

4 (Multi-core (IR + warm) light)

Pan/Tilt/Rotation Range

Pan: 0°–355°; Tilt: 0°–80°; Rotation: 0°–355°

Lens

Lens Type

F

Lens Mount

M12

Focal Length

2.8 mm

Max. Openings

F1.4

Field of View

H: 110°; V: 58°; D: 132°

Iris Control

Fixed

Close Focus Distance

1.4 m (4.59 ft)

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection

Face Detection (Full Image)

Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.

SMD

SMD 4.0

AcuPick

Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.

TO THE SSA

Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+
*includes SmartCodec Technology,Smart H.264+ /H.265+

Video Frame Rate

Main stream: 3288 × 1850@(1–25/30 fps)
sub stream: 1920 × 1080@(1–25/30 fps)
Third stream: 1920 × 1080@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

12 VDC/PoE (802.3af)

Dual Power Backup

When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.

Power Consumption

Basic: 2.6W (12 VDC); 3.3W (PoE)
Max. (H.265 + WDR + warm light + intelligence on): 7.2 W (12 VDC); 9.4W (PoE)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

≤95% (RH), non-condensing

Protection

IP67

Structure

Casing Material

Metal

Product Dimensions

94.0 mm × Φ122.0 mm (3.70" × Φ4.80")

Net Weight

560 g (1.23 lb)

Gross Weight

740 g (1.63 lb)

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
