The IPC-HDW2249T-S-LED-PRO is a 2.8 mm fixed lens camera offering Full HD 2MP resolution and clear images even in low light conditions thanks to WizColor and AI-ISP technology. Equipped with advanced artificial intelligence, it supports human and vehicle detection, perimeter protection, and SMD Plus to reduce false alarms. The built-in microphone enables synchronized audio-video recording, while the rugged design with IP67 protection makes it suitable for indoor and outdoor installations. With H.265 codec and PoE support, it ensures efficiency, bandwidth savings, and professional reliability. Dahua
LIQUIDACION TOTAL ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>
IPC-HDW2249T-S-LED-PRO | 2MP IP CAMERA WITH 2.8mm FIXED LENS - PERIMETER PROTECTION - WIZCOLOR

The Dahua IPC-HDW2249T-S-LED-PRO camera with a 2.8 mm fixed lens guarantees Full HD 2MP images thanks to its CMOS sensor and WizColor technology, which ensures vivid colors even at night. It supports AI functions such as SMD Plus and perimeter protection for accurate recognition of people and vehicles, reducing false alarms. Equipped with a built-in microphone, H.265 compression, and IP67 protection, it is ideal for indoor and outdoor installations, combining professional quality and efficiency.
Main specifications:
- Full HD 2MP resolution (1920×1080)
- 2.8mm fixed optics, 101° viewing angle
- WizColor and AI-ISP for color images even at night
- AI with SMD Plus and perimeter protection
- Audio with built-in microphone
- IP67 protection and PoE support
Further details
✅ Network Camera:

Technical data sheet
MODEL | IPC-HDW2249T-S-LED-PRO |
Room | |
Image Sensor | 1/2.9" CMOS |
Max. Resolution | 1920 (H) × 1080 (V) |
ROM | 128 MB |
RAM | 256 MB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
Min. Illumination | 0.0006 lux@F1.0 |
S/N Ratio | > 56 dB |
Illumination Distance | Up to 30 m (98.43 ft) (Warm light) |
Illuminator On/Off Control | Auto/Manual |
Illuminator Number | 2 (Warm light) |
Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
Lens | |
Lens Type | Fixed-focal |
Mount Type | M12 |
Focal Length | 2.8 mm |
Max. Openings | F1.0 |
Field of View | H: 101°; V: 53°; D: 119° |
Iris Type | Fixed |
Close Focus Distance | 1.1 m (3.61 ft) |
Intelligence | |
IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human); |
SMD | SMD Plus |
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Video | |
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
Smart Codec | Smart H.265+/ Smart H.264+ |
Video Frame Rate | Main stream: 1920 × 1080@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
Streaming Capability | 2 stream |
Resolution | 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
Bit Rate Control | CBR; VBR |
Video Bit Rate | H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps |
Day/Night | Color/B/W |
BLC | Yes |
HLC | Yes |
WDR | 120 dB |
White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
Gain Control | Manual/Auto |
Noise Reduction | 3D NR |
Motion Detection | OFF/ON (4 areas, rectangular) |
Region of Interest (RoI) | Yes (4 areas) |
Smart Lighting | Yes |
Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower) |
Mirror | Yes |
Privacy Masking | 4 areas |
LDC | Yes |
Audio | |
Built-in MIC | Yes, built-in Mic |
Audio Compression | G.711a; G.711Mu; PCM; G.726 |
Alarm | |
Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception |
Network | |
Network | RJ-45 (10/100 Base-T) |
SDK and API | Yes |
Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration |
Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI |
User/Host | 20 (Total bandwidth: 48 M) |
Storage | FTP; SFTP; Micro SD card (support max. 256GB); NAS |
Browser | IE Chrome Firefox |
Management Software | Smart PSS Lite; DSS; DMSS |
Mobile Client | Android; iOS |
Cyber Security | Video encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;Generation and importing of X.509 certification;HTTPS;Trusted boot;Trusted execution;Trusted upgrade |
Certification | |
Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
Power | |
Power Supply | 12V DC; POE |
Power Consumption | Basic: 1.5W (12VDC); 1.9W (PoE); Max. : 4.7 W (12 VDC); 5.7 W (PoE) (H.265+ intelligence on + WDR + illuminator intensity) |
Environment | |
Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Operating Humidity | ≤95% (RH), non-condensing |
Strorage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Storage Humidity | ≤95% (RH), non-condensing |
Protection | IP67 |
Structure | |
Casing Material | Inner core: Metal; Cover: Plastic |

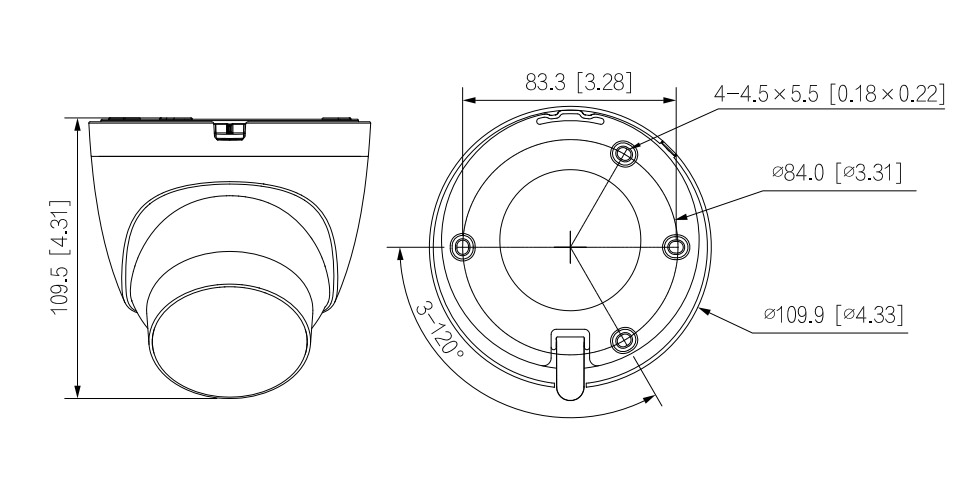

Product Dimensions | 109.5 mm × Φ109.9 mm (4.31" × Φ4.33") |
Net Weight | 0.40 kg (0.88 lb) |
Gross Weight | 0.57 kg (1.26 lb) |
