IPC-HDW2249T-S-LED-PRO - è una telecamera con ottica fissa da 2.8 mm offre una risoluzione Full HD 2MP e immagini nitide anche in condizioni di scarsa illuminazione grazie alla tecnologia WizColor e AI-ISP. Dotata di intelligenza artificiale avanzata, supporta il rilevamento di persone e veicoli, protezione perimetrale e SMD Plus per ridurre i falsi allarmi. Il microfono integrato consente la registrazione audio-video sincronizzata, mentre il design robusto con protezione IP67 la rende adatta a installazioni interne ed esterne. Con codec H.265 e supporto PoE, assicura efficienza, risparmio di banda e affidabilità professionale. Dahua
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>
IPC-HDW2249T-S-LED-PRO | TELECAMERA IP 2MP OTTICA FISSA 2.8mm - PERIMETER PROTECTION -WIZCOLOR

La telecamera Dahua IPC-HDW2249T-S-LED-PRO con ottica fissa da 2.8 mm garantisce immagini Full HD 2MP grazie al sensore CMOS e alla tecnologia WizColor che assicura colori vividi anche di notte. Supporta funzioni AI come SMD Plus e protezione perimetrale per il riconoscimento accurato di persone e veicoli, riducendo i falsi allarmi. Dotata di microfono integrato, compressione H.265 e protezione IP67, è ideale per installazioni interne ed esterne, unendo qualità professionale ed efficienza.
Specifiche principali:
- Risoluzione Full HD 2MP (1920×1080)
- Ottica fissa 2.8 mm, angolo di visione 101°
- WizColor e AI-ISP per immagini a colori anche di notte
- AI con SMD Plus e protezione perimetrale
- Audio con microfono integrato
- Protezione IP67 e supporto PoE
Ulteriori dettagli
✅ Network Camera:

Scheda tecnica
| MODEL | IPC-HDW2249T-S-LED-PRO |
| Camera | |
| Image Sensor | 1/2.9" CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| ROM | 128 MB |
| RAM | 256 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.0006 lux@F1.0 |
| S/N Ratio | > 56 dB |
| Illumination Distance | Up to 30 m (98.43 ft) (Warm light) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (Warm light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.0 |
| Field of View | H: 101°; V: 53°; D: 119° |
| Iris Type | Fixed |
| Close Focus Distance | 1.1 m (3.61 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human); |
| SMD | SMD Plus |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Video Frame Rate | Main stream: 1920 × 1080@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Streaming Capability | 2 stream |
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR; VBR |
| Video Bit Rate | H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps |
| Day/Night | Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Manual/Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest(RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in Mic |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration |
| Interoperability | ONVIF (Profile S & Profile G &Profile T); CGI |
| User/Host | 20 (Total bandwidth: 48 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
| Browser | IE Chrome Firefox |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | Android;iOS |
| Cyber Security | Video encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;Generation and importing of X.509 certification;HTTPS;Trusted boot;Trusted execution;Trusted upgrade |
| Certification | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Power | |
| Power Supply | 12V DC; POE |
| Power Consumption | Basic: 1.5 W (12 VDC); 1.9 W (PoE); Max. : 4.7 W (12 VDC); 5.7 W (PoE) (H.265+ intelligence on + WDR + illuminator intensity) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Strorage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Structure | |
| Casing Material | Inner core: Metal; Cover: Plastic |

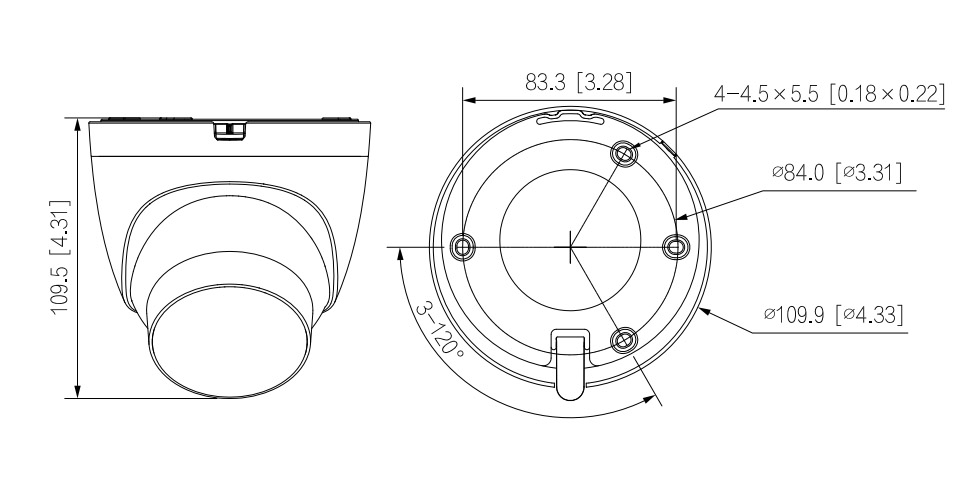

| Product Dimensions | 109.5 mm × Φ109.9 mm (4.31" × Φ4.33") |
| Net Weight | 0.40 kg (0.88 lb) |
| Gross Weight | 0.57 kg (1.26 lb) |
