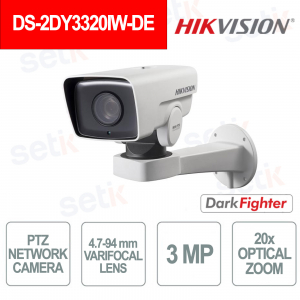

Hikvision DS-2DY3320IW-DE 3MP 20× Zoom IR PTZ Camera

Hikvision DS-2DY3320IW-DE 3MP 20× Zoom IR PTZ Camera

 
Optic calculation
EN PROMOCIÓN -35% nuevo

DS-2DY3320IW-DE - PTZ camera with 1/2.8" CMOS sensor and 4.7 mm to 94 mm lens with 20× optical zoom offers high definition images up to 3MP (2048×1536) , ideal for surveillance of large areas and precise details at long distances. Thanks to IR illumination up to 100 meters , Digital WDR and 3D DNR, it guarantees clear vision even in low light conditions. The 360° PTZ function allows flexible control with 300 presets and automatic scans, while smart functions such as intrusion detection and line crossing detection improve security efficiency. With PoE support, H.265 compression and IP66 protection, it represents a reliable and professional solution for roads, stations, parks and critical infrastructures. Hikvision

Technical Data Sheet

referencia : DS-2DY3320IW-DE

brand : Hikvision

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

DS-2DY3320IW-DE – PTZ BULLET CAMERA WITH VARIFOCAL LENS AND 20x ZOOM NETWORK CAMERA - DARKFIGHTER

Hikvision

The Hikvision DS-2DY3320IW-DE PTZ camera is equipped with a 1/2.8" CMOS sensor and 3MP (2048×1536) resolution, ensuring sharp and detailed images. The 4.7 mm to 94 mm lens with 20× optical zoom allows you to monitor large areas and capture details from long distances. Thanks to IR illumination up to 100 m, Digital WDR and 3D DNR, it ensures clear vision even in low light conditions. The PTZ function with 360° rotation and up to 300 presets offers maximum operational flexibility, while the smart intrusion detection and line crossing detection functions improve security. With PoE support, H.265 compression and IP66 protection, it represents a reliable solution for outdoor applications and critical infrastructures.

Main features:

- 4.7 – 94 mm lens with 20× optical zoom and 16× digital zoom

- 3MP resolution (2048×1536) with 1/2.8" CMOS sensor

- IR illumination up to 100m with Smart IR

- 360° PTZ with 300 presets and automatic scans

- Smart functions: intrusion detection, line crossing, motion detection

- H.265 compression and IP66 protection

Further details

✅ Optics:
 The camera integrates a lens with a variable focal length from 4.7 mm to 94 mm , capable of offering detailed images of both large areas and distant subjects.
✅ Resolution:
 Thanks to the 1/2.8" CMOS sensor, it reaches a maximum resolution of 3MP (2048 × 1536) , ensuring sharp and detailed images even in difficult conditions.
✅ Optical Zoom :
 The 20× optical zoom , combined with the 16× digital zoom , allows you to capture details from long distances while maintaining high visual quality.
✅ PTZ Camera :
 It supports continuous 360° rotation and tilt from -40° to +30°, with up to 300 configurable presets, auto scan and smart tracking functions for flexible and dynamic control.
✅ Audio :
 It features audio input and output, allowing integration with external microphones and speakers for two-way listening and communication functions.
✅ Network camera:
 Compatible with advanced network protocols (IPv4/IPv6, HTTP, HTTPS, RTSP, ONVIF), supports H.265/H.264 compression to optimize bandwidth and storage, with management of up to 32 users and 20 live channels.
✅  Event :
 It integrates intelligent detection such as intrusion detection, line crossing and region entrance/exit detection, with the possibility of sending notifications, triggering recordings or automatic alarms.
✅ DarkFighter Technology :
Designed for low-light scenarios, DarkFighter technology allows you to capture bright, detailed images even in minimal light levels (down to 0.01 Lux in black/white).

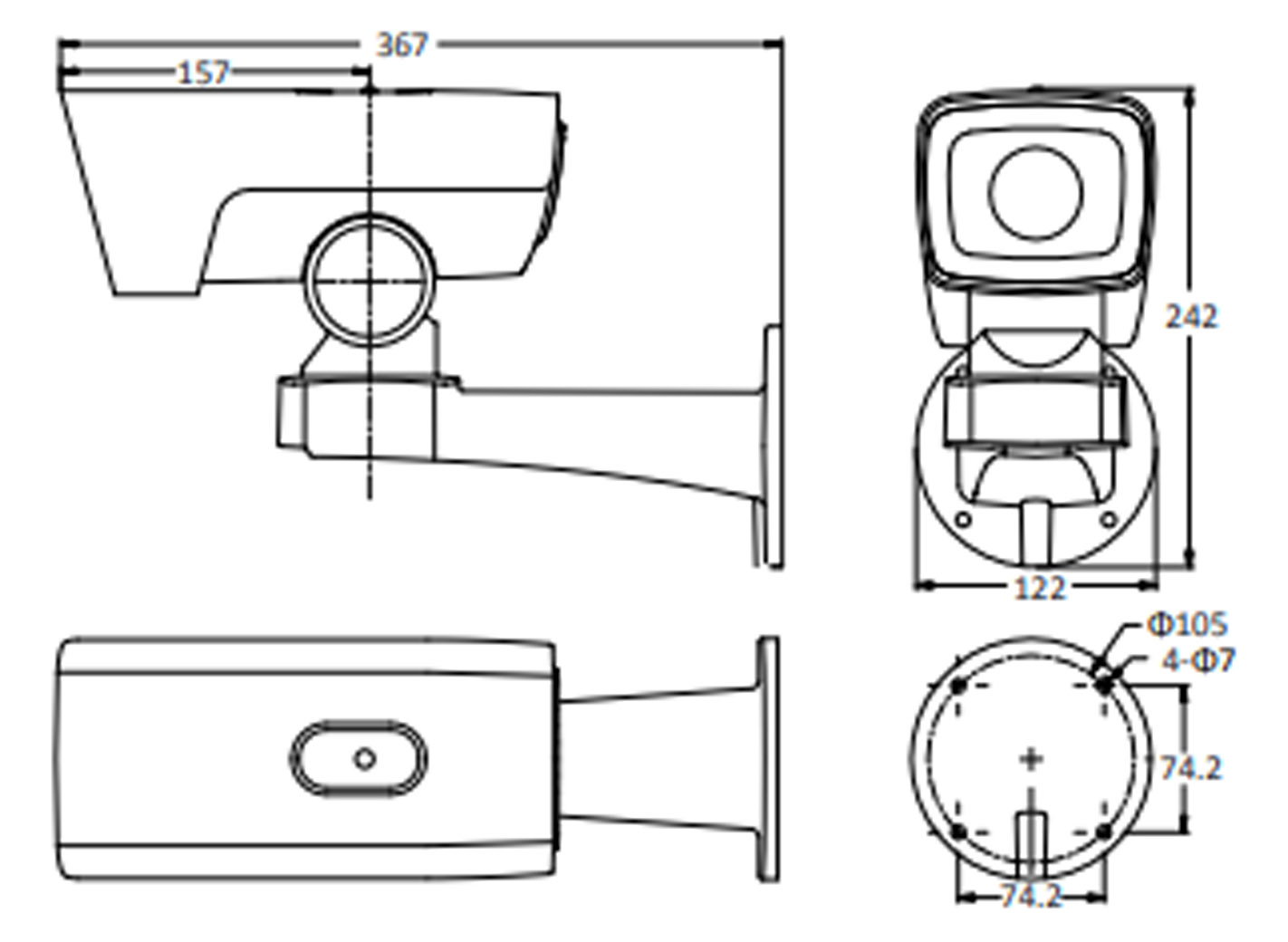

DS-2DY3320IW-DE dimensions

Technical data sheet

DS-2DY3320IW-DE
Room
Image Sensor 1/1.8" progressive scan CMOS
Max. Resolution 2048 × 1536
Min. Illumination Color: 0.05 Lux @(F1.6, AGC ON), B/W: 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR
Shutter Time 1/1 s to 1/30,000 s
Day & Night IR cut filter
Zoom 20x optical, 16x digital
Lens
Focal Length 4.7 mm to 94 mm
FOV 58.3° to 3.2° (Wide-Tele)
Focus Auto, semi-auto, manual
Openings Max. F1.6
Zoom Speed Approx. 2.7 s (Optical Lens, Wide-Tele)
Illuminator
Supplement Light Type IR
Supplement Light Range Up to 100 m
Smart Supplement Light Yes
PTZ
Movement Range (Pan) 360° endless
Movement Range (Tilt) From -40° to 30°
Pan Speed Configurable, from 0.5°/s to 50°/s. Preset speed 50°/s
Tilt Speed Configurable, from 0.5°/s to 25°/s. Preset speed 25°/s
Proportional Pan Yes
Presets 300
Preset Freezing Yes
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Park Action Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
Scheduled Task Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Status Display Yes
Scheduled Task Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust
Power-off Memory Yes
Video
Main Stream 50Hz: 25fps (2048×1536, 1920×1080, 1280×960, 1280×720)
50fps (1280×960, 1280×720)
60Hz: 30fps (2048×1536, 1920×1080, 1280×960, 1280×720)
60fps (1280×960, 1280×720)
Sub-Stream

50Hz: 25fps (704×576, 640×480, 352×288)
60Hz: 30fps (704×576, 640×480, 352×288)
Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 10 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
Video Compression

Main stream: H.265/H.264/H.264+/H.265+
Substream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
H.264 Type

Baseline Profile/Main Profile/High Profile
Region of Interest (ROI)

Main stream, sub-stream and third stream respectively support two fixed areas
Audio
Audio Compression

G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Network
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
Simultaneous Live View

Up to 20 channels
API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
User/Host

Up to 32 users
3 user levels: administrator, operator, and user
Security

User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Network Storage

NAS (NFS, SMB/CIFS), ANR
Client

iVMS-4200, iVMS-4500, iVMS-5200
Web Browser

IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+
Image Settings

Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Wide Dynamic Range (WDR)

Digital WDR
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask

8 programmable privacy masks
Regional Exposure

Yes
Regional Focus

Yes
Interface
Ethernet Interface 1 RJ45 10M/100M Ethernet Interface; PoE (802.3at, class4)
On-Board Storage Built-in memory card slot, support MicroSD/SDHC/SDXC, up to 128GB
Audio 1 input, 1 output
Alarm 1 input, 1 output
Event
Smart Event Intrusion Detection, Line Crossing Detection, Region Exiting Detection, Region Entrance Detection
Alarm Linkage Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
General
Power

12 VDC, 1.6 A and PoE (802.3at), 42.5 to 57 VDC, 0.6 A, Class4
Max. 19W, including max. 9.2W for IR
Dimension

367 mm × 122 mm × 242 mm (14.45" × 4.80" × 9.53")
Weight

Approx. 3 kg (6.61 lb)
Operating Conditions

Working Temperature: Outdoor: -30°C to 65°C (-22°F to 149°F)
Working Humidity: ≤ 95%
Language

33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Approval
Protection

IP66 Standard; 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
