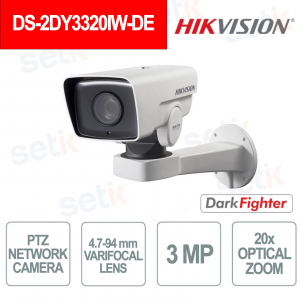

DS-2DY3320IW-DE – TELECAMERA PTZ BULLET OTTICA VARIFOCALE CON ZOOM 20x NETWORK CAMERA - DARKFIGHTER

La telecamera PTZ Hikvision DS-2DY3320IW-DE è dotata di sensore CMOS da 1/2.8" e risoluzione 3MP (2048×1536), garantendo immagini nitide e dettagliate. L’ottica da 4.7 mm a 94 mm con zoom ottico 20× consente di sorvegliare ampie aree e catturare particolari a lunga distanza. Grazie all’illuminazione IR fino a 100 m, al Digital WDR e al 3D DNR assicura una visione chiara anche in condizioni di scarsa luminosità. La funzione PTZ con rotazione a 360° e fino a 300 preset offre massima flessibilità operativa, mentre le funzioni smart di intrusion detection e line crossing detection migliorano la sicurezza. Con supporto PoE, compressione H.265 e protezione IP66, rappresenta una soluzione affidabile per applicazioni in esterni e infrastrutture critiche.
Caratteristiche principali:
- Ottica 4.7 – 94 mm con zoom ottico 20× e digitale 16×
- Risoluzione 3MP (2048×1536) con sensore CMOS 1/2.8"
- Illuminazione IR fino a 100 m con Smart IR
- PTZ 360° con 300 preset e scansioni automatiche
- Funzioni smart: intrusion detection, line crossing, motion detection
- Compressione H.265 e protezione IP66
Ulteriori dettagli
La telecamera integra un’ottica con lunghezza focale variabile da 4.7 mm a 94 mm, capace di offrire immagini dettagliate sia su ampie aree che su soggetti distanti.
Grazie al sensore CMOS da 1/2.8", raggiunge una risoluzione massima di 3MP (2048 × 1536), garantendo immagini nitide e ricche di dettagli anche in condizioni difficili.
Lo zoom ottico 20×, combinato allo zoom digitale 16×, consente di catturare particolari a lunga distanza mantenendo alta la qualità visiva.
Supporta rotazione continua a 360° e tilt da -40° a +30°, con fino a 300 preset configurabili, funzioni di scan automatico e smart tracking per un controllo flessibile e dinamico.
Dispone di ingresso e uscita audio, permettendo l’integrazione con microfoni e altoparlanti esterni per funzioni di ascolto e comunicazione bidirezionale.
Compatibile con protocolli di rete avanzati (IPv4/IPv6, HTTP, HTTPS, RTSP, ONVIF), supporta compressione H.265/H.264 per ottimizzare banda e storage, con gestione fino a 32 utenti e 20 canali live.
Integra rilevamento intelligente come intrusion detection, line crossing e region entrance/exit detection, con possibilità di inviare notifiche, attivare registrazioni o allarmi automatici.
Progettata per scenari con scarsa illuminazione, la tecnologia DarkFighter consente di catturare immagini luminose e dettagliate anche con livelli minimi di luce (fino a 0.01 Lux in bianco/nero).

Scheda tecnica
DS-2DY3320IW-DE | |
Camera | |
Image Sensor | 1/1.8" progressive scan CMOS |
Max. Resolution | 2048 × 1536 |
Min. Illumination | Color: 0.05 Lux @(F1.6, AGC ON), B/W: 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR |
Shutter Time | 1/1 s to 1/30,000 s |
Day & Night | IR cut filter |
Zoom | 20x optical, 16x digital |
Lens | |
Focal Length | 4.7 mm to 94 mm |
FOV | 58.3° to 3.2° (Wide-Tele) |
Focus | Auto, semi-auto, manual |
Aperture | Max. F1.6 |
Zoom Speed | Approx. 2.7 s (Optical Lens, Wide-Tele) |
Illuminator | |
Supplement Light Type | IR |
Supplement Light Range | Up to 100 m |
Smart Supplement Light | Yes |
PTZ | |
Movement Range (Pan) | 360° endless |
Movement Range (Tilt) | From -40° to 30° |
Pan Speed | Configurable, from 0.5°/s to 50°/s. Preset speed 50°/s |
Tilt Speed | Configurable, from 0.5°/s to 25°/s. Preset speed 25°/s |
Proportional Pan | Yes |
Presets | 300 |
Preset Freezing | Yes |
Patrol Scan | 8 patrols, up to 32 presets for each patrol |
Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
Park Action | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan |
Scheduled Task | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
PTZ Status Display | Yes |
Scheduled Task | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust |
Power-off Memory | Yes |
Video | |
Main Stream | 50Hz: 25fps (2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 50fps (1280 × 960, 1280 × 720) 60Hz: 30fps (2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 60fps (1280 × 960, 1280 × 720) |
Sub-Stream |
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) |
Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 10 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) |
Video Compression |
Main stream: H.265/H.264/H.264+/H.265+ |
H.264 Type |
Baseline Profile/Main Profile/High Profile |
Region of Interest (ROI) |
Main stream, sub-stream and third stream respectively support two fixed areas |
Audio | |
Audio Compression |
G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
Network | |
Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour |
Simultaneous Live View |
Up to 20 channels |
API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK |
User/Host |
Up to 32 users |
Security |
User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering |
Network Storage |
NAS (NFS, SMB/CIFS), ANR |
Client |
iVMS-4200, iVMS-4500, iVMS-5200 |
Web Browser |
IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+ |
Image | |
Image Settings |
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
Wide Dynamic Range (WDR) |
Digital WDR |
Image Enhancement | BLC,HLC,3D DNR |
Privacy Mask |
8 programmable privacy masks |
Regional Exposure |
Yes |
Regional Focus |
Yes |
Interface | |
Ethernet Interface | 1 RJ45 10 M/100 M Ethernet Interface; PoE (802.3at, class4) |
On-Board Storage | Built-in memory card slot, support MicroSD/SDHC/SDXC, up to 128 GB |
Audio | 1 input, 1 output |
Alarm | 1 input, 1 output |
Event | |
Smart Event | Intrusion Detection, Line Crossing Detection, Region Exiting Detection, Region Entrance Detection |
Alarm Linkage | Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc. |
General | |
Power |
12 VDC, 1.6 A and PoE (802.3at), 42.5 to 57 VDC, 0.6 A, Class4 |
Dimension |

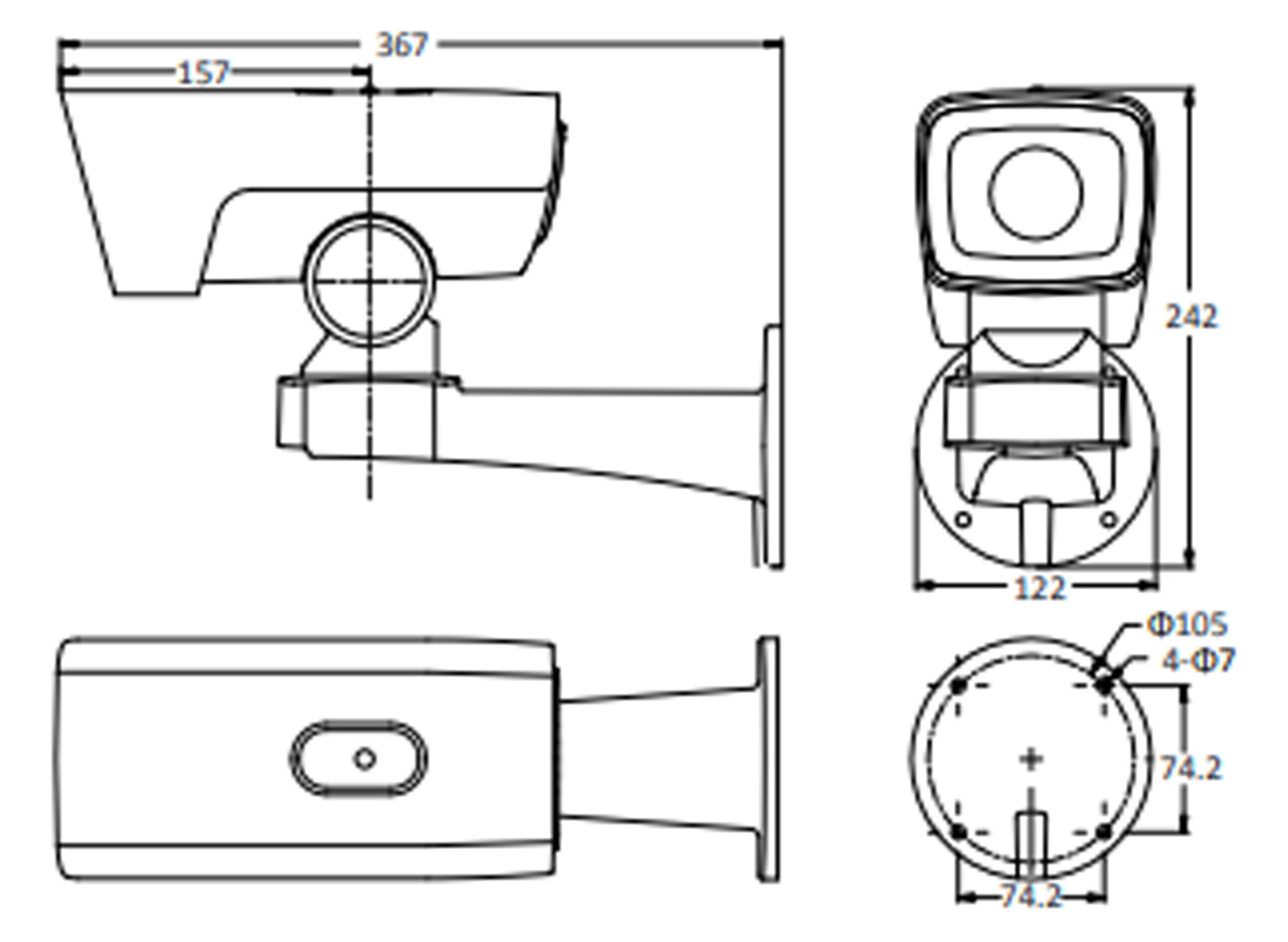

367 mm × 122 mm × 242 mm (14.45" × 4.80" × 9.53") |
Weight |
Approx. 3 kg (6.61 lb) |
Operating Conditions |
Working Temperature: Outdoor: -30°C to 65°C (-22°F to 149°F) |
Language |
33 languages |
Approval | |
Protection |
IP66 Standard; 6000V Lightning Protection, Surge Protection and Voltage Transient Protection |
