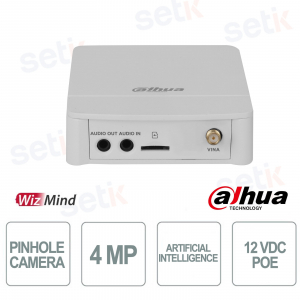

Dahua IPC-HUM8441E-E1 4MP Pinhole WizMind Camera with AI, Face Detection, and People Counting

Dahua IPC-HUM8441E-E1 4MP Pinhole WizMind Camera with AI, Face Detection, and People Counting

 
Optic calculation
-56% nuevo

The IPC-HUM8441E-E1 is a 4MP camera and a professional video surveillance solution from the WizMind series, designed for discreet applications such as banks and commercial spaces. Thanks to the 1/2.7" CMOS sensor with pinhole lens, it offers high definition images up to 2688×1520 at 60fps , even in low light conditions. It supports advanced AI with face detection, perimeter protection, people counting and object recognition, reducing false alarms and improving security. The 120dB WDR, 3D NR and AI H.265/H.264 encoding functions ensure optimized video quality and bandwidth savings. Powered via PoE or 12VDC , with microSD support up to 512GB, it guarantees flexible and reliable installation. Dahua

Technical Data Sheet

referencia : IPC-HUM8441E-E1

brand : Dahua

EAN: 6939554941528

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

IPC-HUM8441E-E1 | 4MP PINHOLE CAMERA

Dahua

The Dahua IPC-HUM8441E-E1 camera is a 4MP pinhole model with a 1/2.7" CMOS sensor, designed for discreet video surveillance applications such as banks and sensitive areas. Thanks to the pinhole lens and integrated AI technologies, it offers high-definition images up to 2688×1520 at 60fps, with intelligent face detection, perimeter protection, people counting and smart object detection functions. It supports H.265/H.264 AI encoding to reduce bandwidth and storage consumption, with PoE or 12VDC power supply and up to 512GB of microSD memory.

Main specifications:

- 1/2.7" 4MP CMOS sensor with pinhole lens

- Resolution up to 2688×1520 @60fps

- Integrated AI: Face Detection, People Counting, Perimeter Protection

- WDR 120dB, 3D NR, ROI and AI H.265/H.264 encoding

- 12VDC/PoE power supply with dual backup and microSD up to 512GB

Further details

✅ Resolution:
Equipped with a 1/2.7" CMOS sensor with a maximum resolution of 4MP (2688×1520) at 50/60fps, it ensures clear images even in low light conditions thanks to 120dB WDR and 3D NR technology that reduces video noise.
✅ AI Coding :
It uses advanced AI H.265/H.264 encoding algorithms with CBR, VBR and ABR modes, ensuring a perfect balance between image quality and storage optimization, significantly reducing bandwidth consumption .
✅ Perimeter Protection :
Thanks to deep learning, the perimeter protection function accurately distinguishes between people and vehicles, drastically reducing false alarms related to intrusions, unauthorized crossings, illegal parking or suspicious behavior such as loitering .
✅ Face Detection:
Detect and track faces in real-time, automatically capturing the best image and enabling the extraction of optimized attributes and snapshots, ideal for access control systems and advanced analytics .
✅ People Counting :
With deep learning algorithms, it allows an accurate counting of people entering, exiting or present in an area, generating detailed daily, monthly or annual reports, useful for statistics and space management .
IPC-HUM8441E-E1 dimensions

Technical data sheet

IPC-HUM8441E-E1

Room

Image Sensor

1/2.7" CMOS

Max. Resolution

2688 (O) × 1520 (V)

ROM

256 MB

RAM

1 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.005 lux@F2.0 (Color, 30 IRE)
0.0005 lux@F2.0 (B/W, 30 IRE)

S/N Ratio

>56 dB

Intelligence

IVS (Perimeter Protection)

Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection.

Smart Object Detection

Smart abandoned object; smart missing object

AcuPick

Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animals and motor vehicles, and search through live and recorded videos to quickly locate targets.

Face Detection

Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.

People Counting

Tripwire people counting and people counting in area; generating and exporting reports (day/month/year); queue management; 4 rules can be set for tripwire, people counting in area and queue management.

Privacy Protection

Mosaics can be automatically placed over the face or body of a person to protect their privacy

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)
AI Coding AI H.265; AI H.264
Video Frame Rate Main stream: 2688 × 1520@(1–50/60 fps)
sub stream: 1920 × 1080@(1–25/30 fps)
third stream: 1920 × 1080@(1–25/30 fps)
*High frame rate of main stream is supported under monitoring mode only
Note: AI/WDR cannot be enabled at the same time as high frame rate.
Streaming Capability 3 streams
Resolution 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control VBR;CBR;ABR
Video Bit Rate H.264: 3 kbps–16384 kbps;
H.265: 3 kbps–16384 kbps
Day/Night Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation (SSA) Yes
White Balance Car; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Audio
Audio Compression G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; missingobject; abandoned object; parking detection; loitering detection; people gathering; scene changing; audio detection; voltage detection; external alarm; face detection; people counting; people number error detection; security exception
Network
Network Port RJ-45 (10/100 Base-T)
SDK and API Yes
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Bonjour; Auto Registration
Interoperability ONVIF (Profile S & Profile G & Profile T); CGI; P2P; Milestones; Genetec
User/Host 20 (Total bandwidth: 64 M)
Storage FTP; SFTP; Micro SD card (support max. 512GB); NAS
Browser IE: IE8, IE9, and IE11
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS; DoLynk Care
Mobile Client iOS;Android
Security Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning
Certification
Certifications CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
Port
Audio Input 1 channel (3.5mm JACK port)
Audio Output 1 channel (3.5mm JACK port)
Alarm Input 2 channels in: wet contact, 5 mA 3–5 VDC
Alarm Output 2 channels out: dry contact, 1,000 mA 30 VDC/500 mA 50 VAC
Power
Power Supply 12 VDC; PoE (802.3af)
Dual Power Backup When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.
Power Consumption Basic: 4.8W (12VDC); 6W (PoE);
Max.: 6.7W (12VDC); 8.6 W (PoE) (High frame rate + Intelligence on + WDR)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

≤95% (RH), non-condensing

Structure

Casing Material

Metal

Product Dimensions

110 mm × 83 mm × 24 mm (4.33" × 3.27" × 0.94") (L × W × H)

Net Weight

210 g (0.46 lb)

Gross Weight

646 g (1.42 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
