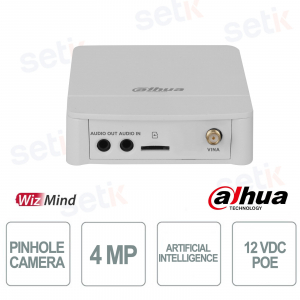

IPC-HUM8441E-E1 | TELECAMERA PINHOLE 4MP

La telecamera Dahua IPC-HUM8441E-E1 è un modello pinhole da 4MP con sensore CMOS 1/2.7", progettata per applicazioni di videosorveglianza discreta come banche e aree sensibili. Grazie all’ottica pinhole e alle tecnologie AI integrate, offre immagini ad alta definizione fino a 2688×1520 a 60fps, con funzioni intelligenti di rilevamento volti, protezione perimetrale, conteggio persone e smart object detection. Supporta codifica AI H.265/H.264 per ridurre il consumo di banda e storage, con alimentazione PoE o 12VDC e memoria fino a 512GB su microSD.
Specifiche principali:
- Sensore CMOS 1/2.7" da 4MP con ottica pinhole
- Risoluzione fino a 2688×1520 @60fps
- AI integrata: Face Detection, People Counting, Perimeter Protection
- WDR 120dB, 3D NR, ROI e codifica AI H.265/H.264
- Alimentazione 12VDC/PoE con backup doppio e microSD fino a 512GB
Ulteriori dettagli

Scheda tecnica
IPC-HUM8441E-E1 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor |
CMOS da 1/2,7" |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution |
2688 (O) × 1520 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM |
256 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM |
1 GB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination |
0.005 lux@F2.0 (Color, 30 IRE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio |
>56 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligence |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IVS (Perimeter Protection) |
Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Object Detection |
Smart abandoned object; smart missing object |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AcuPick |
Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animal and motor vehicles, and search through live and recorded videos to quickly locate targets. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection |
Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
People Counting |
Tripwire people counting and people counting in area; generating and exporting report (day/month/year); queue management; 4 rules can be set for tripwire, people counting in area and queue management. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Privacy Protection |
Mosaics can be automatically placed over the face or body of a person to protect their privacy |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AI Coding | AI H.265; AI H.264 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate | Main stream: 2688 × 1520@(1–50/60 fps) sub stream: 1920 × 1080@(1–25/30 fps) third stream: 1920 × 1080@(1–25/30 fps) *High frame rate of main stream is supported under monitoring mode only Note: AI/WDR cannot be enabled at the same time as high frame rate. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Streaming Capability | 3 streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution | 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate Control | VBR;CBR;ABR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate | H.264: 3 kbps–16384 kbps; H.265: 3 kbps–16384 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night | Color/B/W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR | 120 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scene Self-adaptation (SSA) | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance | Auto; natural; street lamp; outdoor; manual; regional custom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control | Auto/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction | 3D NR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motion Detection | OFF/ON (4 areas, rectangular) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Region of Interest (RoI) | Yes (4 areas) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Defog | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mirror | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Privacy Masking | 4 areas | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; missing object; abandoned object; parking detection; loitering detection; people gathering; scene changing; audio detection; voltage detection; external alarm; face detection; people counting; people number error detection; security exception | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port | RJ-45 (10/100 Base-T) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SDK and API | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Bonjour; Auto Registration | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI; P2P; Milestone; Genetec | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User/Host | 20 (Total bandwidth: 64 M) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage | FTP; SFTP; Micro SD card (support max. 512 GB); NAS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser | IE: IE8, IE9, and IE11 Chrome Firefox |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Management Software | Smart PSS; DSS; DMSS; DoLynk Care | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Client | iOS;Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input | 1 channel (3.5mm JACK port) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output | 1 channel (3.5mm JACK port) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Input | 2 channels in: wet contact, 5 mA 3–5 VDC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output | 2 channels out: dry contact, 1,000 mA 30 VDC/500 mA 50 VAC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | 12 VDC; PoE (802.3af) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | Basic: 4.8 W (12 VDC); 6 W (PoE); Max.: 6.7 W (12 VDC); 8.6 W (PoE) (High frame rate + Intelligence on + WDR) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
≤95% (RH) , non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity |
≤95% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing Material |
Metal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
110 mm × 83 mm × 24 mm (4.33" × 3.27" × 0.94") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
210 g (0.46 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
646 g (1.42 lb) |
