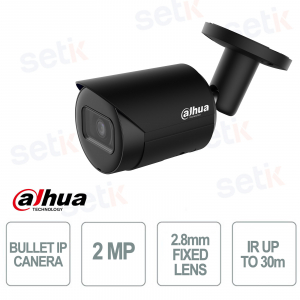

Dahua IPC-HFW2230S-S-S2-B 2MP 2.8mm Black Starlight and IR 30m Camera

Dahua IPC-HFW2230S-S-S2-B 2MP 2.8mm Black Starlight and IR 30m Camera
-56% nuevo

IPC-HFW2230S-S-S2-B - is a black bullet IP camera with 2.8mm lens offering 2MP Full HD resolution (1920 × 1080) with a 1/2.8" CMOS sensor, ensuring clear images even in low light conditions thanks to Starlight technology. It supports H.265 compression to optimize bandwidth and storage, while the integrated IR LEDs allow night vision up to 30 meters . Equipped with intelligent functions such as IVS (intrusion and tripwire) and IP67 protection, it ensures reliability even in outdoor environments. PoE power simplifies installation and storage is expandable via microSD card up to 256 GB. A compact and elegant solution for professional and residential video surveillance. Dahua

Technical Data Sheet

referencia : IPC-HFW2230S-S-S2-B

brand : Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

IPC-HFW2230S-S-S2-B | 2MP IP BULLET CAMERA WITH 2.8mm FIXED LENS

Dahua

The black Dahua IPC-HFW2230S-S-S2-B network camera with 2.8mm fixed lens offers Full HD 2MP (1920×1080) images thanks to the 1/2.8" CMOS sensor and Starlight technology, which ensures clear videos even in low light conditions. The built-in IR illuminator guarantees night vision up to 30 meters, while H.265 compression reduces bandwidth and storage space use. Intelligent IVS functions allow intrusion and tripwire detection, improving active protection. The IP67 certified casing ensures resistance to water and dust, while PoE power supply simplifies installation.

Main specifications:

- 2.8mm wide-angle fixed lens

- Full HD 2MP resolution (1920×1080)

- IR night vision up to 30m

- Starlight technology for low light

- IVS functions: intrusion and tripwire

- PoE power supply and IP67 protection

Further details

Optics :
The 2.8mm fixed lens offers a wide field of view (107° horizontal), ideal for monitoring large areas with a single camera, reducing blind spots and optimizing surveillance.
Resolution:
Equipped with a 1/2.8" CMOS sensor, this camera guarantees Full HD 2MP (1920 × 1080) images at 25/30 fps, with H.265 compression that reduces bandwidth consumption and storage space.
Starlight :
Thanks to Starlight technology, the camera captures clear, colorful videos even in low light conditions, making it ideal for low-light environments.
IVS :
It integrates intelligent video analytics features such as intrusion and tripwire , improving security with accurate event detection and reducing false alarms.

Network Camera:
Being an IP camera, it supports PoE power supply, microSD storage up to 256 GB and IP67 protection, which makes it resistant to water and dust, perfect for both indoor and outdoor installations.

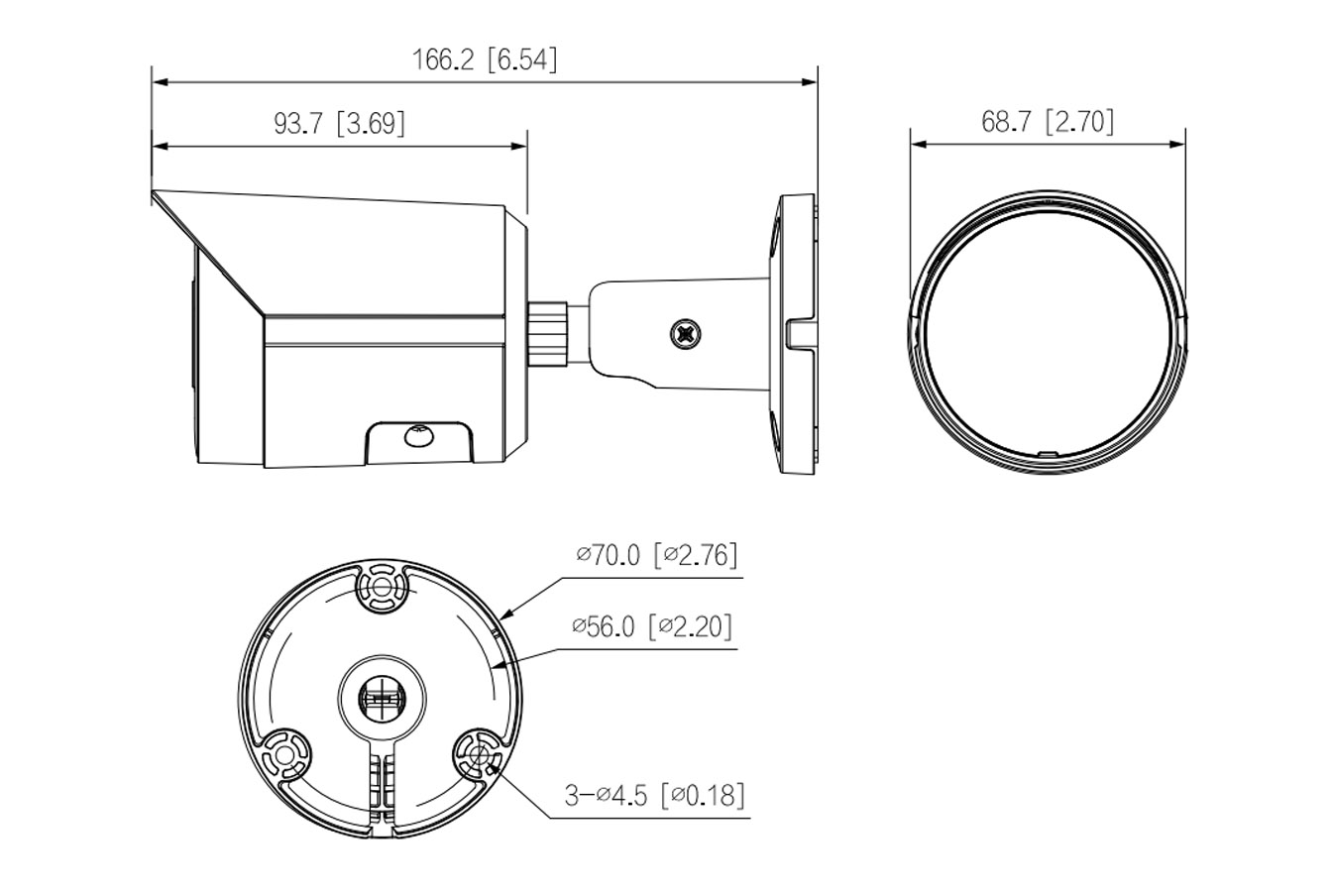

IPC-HFW2230S-S-S2-B dimensions

Technical data sheet

Model IPC-HFW2230S-S-S2-B
Room
Image Sensor 1/2.8" CMOS
Max. Resolution 1920 (H) × 1080 (V)
ROM 128 MB
RAM 128 MB
Scanning System Progressive
Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination 0.005 Lux@F1.6 (Color, 30 IRE)
0.0005 Lux@F1.6 (B/W, 30 IRE)
0 lux (illuminator on)
S/N Ratio >56 dB
Illumination Distance 30 m (98.43 ft) (IR)
Illuminator On/Off Control Auto/Manual
Illuminator Number 1 (IR LED)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm
Max. Openings F1.6
Field of View Horizontal: 107°; Vertical: 56°; Diagonal: 127°
Iris Type Fixed
Close Focus Distance 0.7 m (2.30 ft)
Smart Event
IVS Tripwire; intrusion
Video
Compression H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
AI Coding AI H.265; AI H.264
Video Frame Rate

Main stream: 1920 × 1080@1–25/30 fps
Substream:
704 × 576 @ 1–25 fps
704 × 480 @ 1–30 fps
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Resolution 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control

CBR/VBR

Video Bit Rate H.264: 32 kbps–6144 kbps;
H.265: 12 kbps–6144 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR DWDR
White Balance Car; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto; manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Lighting Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Alarm
Alarm No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motor detector; video tampering; tripwire; intrusion; audio detector; voltage detector; SMD; security except; external alarm(Only - AS supports)
Network
Ethernet RJ-45 (10/100 Base-T)
SDK and API Yes
Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour

Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestones
User/Host 20 (Total bandwidth: 48 M)
Storage

FTP; SFTP; Micro SD card (support max. 256GB); NAS

Browser IE; Chrome; Firefox
Management Software Smart PSS Lite; DSS; DMSS
Smartphone iOS; Android
Cyber Security Video encryption; firmware encryption; configuration encryption; Digests; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Certifications
Certifications

CE-LVD: EN 62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B

Power
Power Supply 12 VDC (±30%); PoE (802.3af)
Power Consumption

Basic: 1.8W (12V DC); 2.5W (PoE)
Max. (ICR + H.265 + max. resolution + main stream + IR intensity + DWDR + IVS): 3.9 W (12 V DC); 4.7W (PoE)

Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95%
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Ingress Protection IP67
Structure
Casing Metal
Dimensions 166.2 mm × Φ70 mm (6.54" × Φ2.76")
Net Weight 0.48 kg (1.06 lb)
Gross Weight 0.57 kg (1.26 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
