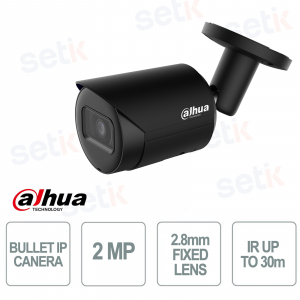

IPC-HFW2230S-S-S2-B | TELECAMERA BULLET IP 2MP OTTICA FISSA 2.8mm

La telecamera di rete Dahua IPC-HFW2230S-S-S2-B in colore nero con ottica fissa da 2.8mm offre immagini in Full HD 2MP (1920×1080) grazie al sensore CMOS 1/2.8" e alla tecnologia Starlight, che assicura video chiari anche in condizioni di scarsa luminosità. L’illuminatore IR integrato garantisce visione notturna fino a 30 metri, mentre la compressione H.265 riduce l’uso di banda e spazio di archiviazione. Le funzioni intelligenti IVS permettono il rilevamento di intrusioni e tripwire, migliorando la protezione attiva. La scocca con certificazione IP67 assicura resistenza ad acqua e polvere, mentre l’alimentazione PoE semplifica l’installazione.
Specifiche principali:
- Ottica fissa 2.8mm grandangolare
- Risoluzione Full HD 2MP (1920×1080)
- Visione notturna IR fino a 30 m
- Tecnologia Starlight per bassa luminosità
- Funzioni IVS: intrusion e tripwire
- Alimentazione PoE e protezione IP67
Ulteriori dettagli
✅ Network Camera:

Scheda tecnica
| Model | IPC-HFW2230S-S-S2-B |
| Camera | |
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| ROM | 128 MB |
| RAM | 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.005 Lux@F1.6 (Color, 30 IRE) 0.0005 Lux@F1.6 (B/W, 30 IRE) 0 lux (illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | 30 m (98.43 ft) (IR) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 1 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.6 |
| Field of View | Horizontal: 107°; Vertical: 56°; Diagonal: 127° |
| Iris Type | Fixed |
| Close Focus Distance | 0.7 m (2.30 ft) |
| Smart Event | |
| IVS | Tripwire; intrusion |
| Video | |
| Compression | H.265; H.264; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Video Frame Rate |
Main stream: 1920 × 1080@1–25/30 fps |
| Stream Capability |
2 streams |
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control |
CBR/VBR |
| Video Bit Rate | H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto; manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest(RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Alarm | |
| Alarm | No SD card; SD card full; SD card error; network disconnecton; IP conflict; illegal access; moton detecton; video tampering; tripwire; intrusion; audio detecton; voltage detecton; SMD; security excepton; external alarm(Only - AS supports) |
| Network | |
| Ethernet | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone |
| User/Host | 20 (Total bandwidth: 48 M) |
| Storage |
FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
| Browser | IE; Chrome; Firefox |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Smartphone | IOS; Android |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| Certifications | |
| Certifications |
CE-LVD: EN 62368-1; |
| Power | |
| Power Supply | 12 VDC (±30%); PoE (802.3af) |
| Power Consumption |
Basic: 1.8 W (12 V DC); 2.5 W (PoE) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Ingress Protection | IP67 |
| Structure | |
| Casing | Metal |
| Dimensions | 166.2 mm × Φ70 mm (6.54" × Φ2.76") |
| Net Weight | 0.48 kg (1.06 lb) |
| Gross Weight | 0.57 kg (1.26 lb) |
