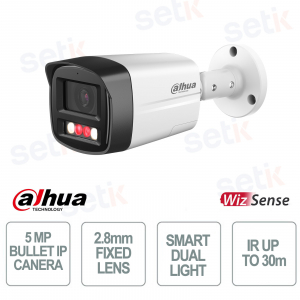

Dahua IPC-HFW2549TL-S-PV 5MP 2.8mm camera with AI and Active Deterrence

Dahua IPC-HFW2549TL-S-PV 5MP 2.8mm camera with AI and Active Deterrence
-56% nuevo

IPC-HFW2549TL-S-PV - is a WizSense IP camera with a 2.8mm fixed lens offering high definition images up to 5MP (2960×1688) with a 1/2.7" CMOS sensor and H.265 compression. Smart Dual Light technology uses IR LEDs and warm light up to 30 meters, activating color recording only when motion is detected, reducing light pollution. Equipped with advanced AI functions such as SMD Plus and Perimeter Protection , it is able to accurately distinguish people and vehicles, minimizing false alarms. The Active Deterrence system with siren and warning light, together with the built-in microphone and speaker , guarantees interactive monitoring. IP67 protection and PoE power supply make this network camera reliable and ideal for residential and professional applications. Dahua

Technical Data Sheet

referencia : IPC-HFW2549TL-S-PV

brand : Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

IPC-HFW2549TL-S-PV | 5MP IP BULLET CAMERA WITH 2.8mm FIXED LENS - PERIMETER PROTECTION - ACTIVE DETERRENCE


Dahua

The Dahua IPC-HFW2549TL-S-PV network camera with 2.8mm fixed lens offers high definition images up to 5MP (2960×1688) , thanks to the 1/2.7" CMOS sensor and H.265 compression that reduces bandwidth and storage. Smart Dual Light technology combines IR LEDs and warm light up to 30 meters, activating only when motion is detected to ensure color recordings without light pollution. Equipped with artificial intelligence with SMD Plus and Perimeter Protection , it accurately distinguishes people and vehicles, reducing false alarms. The Active Deterrence system with siren and light, together with integrated microphone and speaker , allows interactive control. IP67 certified and powered via PoE , it is an ideal network camera for professional and residential security.

Main specifications:

- 2.8mm wide-angle fixed lens

- Resolution up to 5MP (2960×1668)

- Smart Dual Light with IR and warm light 30m

- AI functions: SMD Plus and Perimeter Protection

- Active Deterrence with integrated siren and speaker

- Built-in microphone for two-way audio

- PoE network camera with IP67 protection

Further details

Optics :
The 2.8mm fixed lens guarantees a wide field of view up to 111°, ideal for monitoring outdoor and indoor spaces by reducing blind spots.
Resolution:
It supports up to 5MP (2960×1688) with 1/2.7" CMOS sensor, offering sharp and detailed images even in low light conditions.
Siren and Light Active Deterrence:
It integrates a siren and warning light to deter intrusions, with the ability to customize voice alerts and activate immediate alarms.
Smart Dual Light :
Uses IR LEDs and white light up to 30 meters , automatically switching to color recordings when activity is detected, reducing light pollution.
SMD Plus :
Thanks to AI algorithms, it distinguishes relevant movements (people and vehicles) from irrelevant ones, drastically reducing false alarms.
Intelligence :
Based on deep learning, it integrates smart video analytics and intelligent search functions, optimizing security event management.
Perimeter Protection :
Accurately recognizes intrusions, crossings and suspicious movements, reducing false alarms in sensitive areas and improving reliability.
Microphone:
With built-in microphone and speaker, it allows audio recording and two-way communication for complete control.

Network Camera:
It supports PoE power supply , microSD card up to 256GB and IP67 protection , making it resistant to water and dust .
WizColor Technology :
It is part of the WizSense line, equipped with AI chips and deep learning algorithms, designed for intelligent, simple and accessible detections.

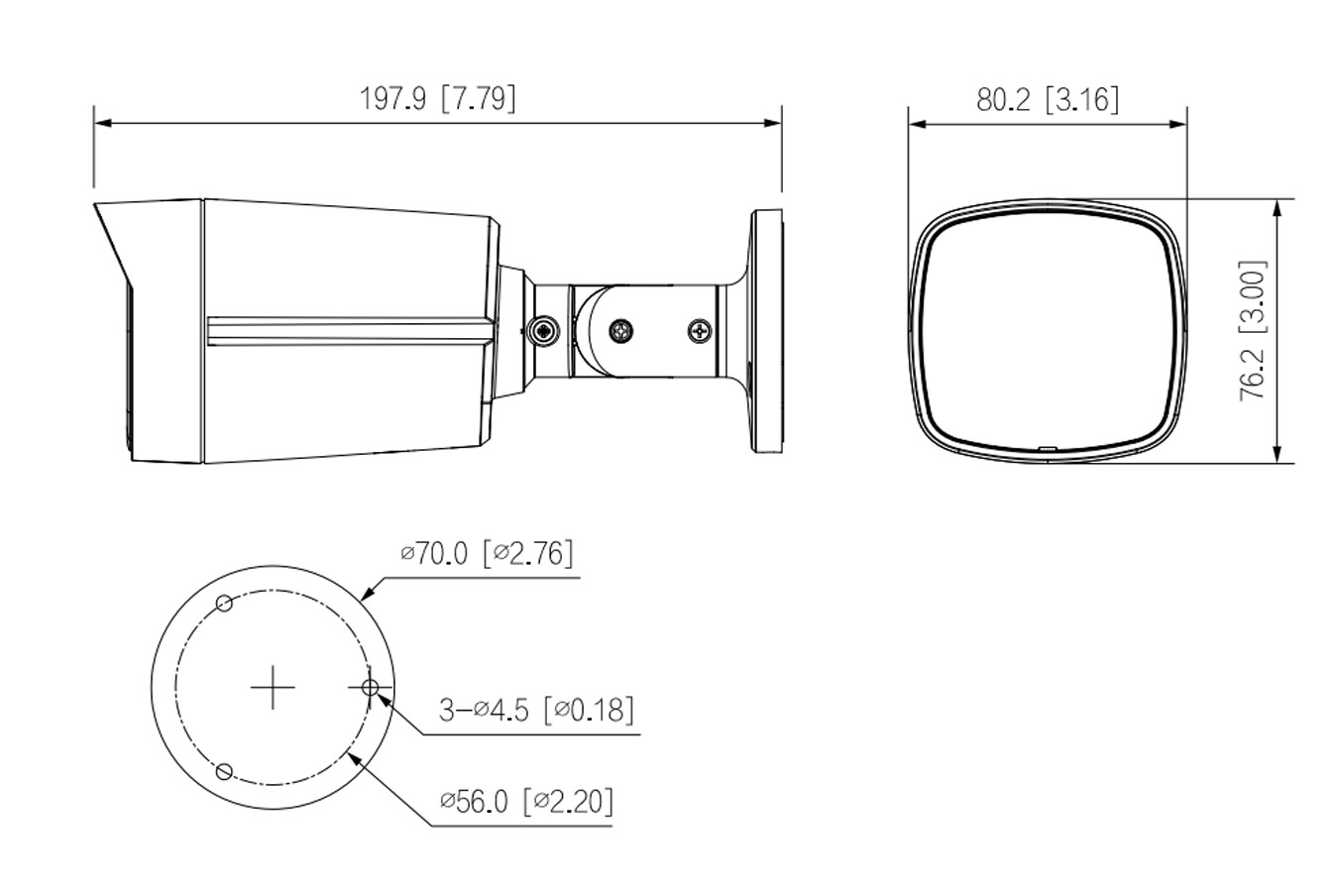

IPC-HFW2549TL-S-PV dimensions.jpg

Technical data sheet

MODEL IPC-HFW2549TL-S-PV
Room
Image Sensor 1/2.7" CMOS
Max. Resolution 2960 (H) × 1668 (V)
ROM 128 MB
RAM 256 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.006 lux@F1.0 (Color, 30 IRE);
0.0006 lux@F1.0 (B/W, 30 IRE);
0 lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm Light)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (IR LED); 2 (Warm light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8mm
Max. Openings F1.
Field of View H: 92°; V: 45°; D: 110°
Iris Type Fixed
Close Focus Distance 1.7 m (5.58 ft)
Intelligence
IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human);
SMD SMD Plus
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+/ Smart H.264+
Video Frame Rate Main stream: 2960 × 1668@(1–20 fps)/2688 × 1520@(1–25/30 fps)
sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Streaming Capability 2 stream
Resolution 5M (2960 × 1668); 4.6M (2880×1620); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR; VBR
Video Bit Rate H.264: 32 kbps–8192 kbps;
H.265: 12 kbps–8192 kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Manual/Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Lighting Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes, built-in Mic
Built-in Speaker Yes, built-in speaker
Audio Compression G.711a; G.711Mu; PCM; G.726
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception
Network
Network RJ-45 (10/100 Base-T)
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour; P2P
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI
User/Host 20 (Total bandwidth: 48 M)
Storage FTP; SFTP; Micro SD card (support max. 256GB)
Browser IE
Chrome
Firefox
Management Software Smart PSS lite; DSS; DMS
Mobile Client Android; iOS
Cyber Security Video encryption; firmware encryption; configuration encryption; Digests; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Certification
Certifications CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Power
Power Supply 12 VDC; PoE
Power Consumption Basic: 2.1W (12VDC), 2.8W (PoE);
Max. (H.265 + intelligence on + WDR + IR intensity + warm light deterrence + speaker), 11.6 W (12 VDC), 13.5 W (PoE)
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95%
Strorage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity ≤95%
Protection IP67
Structure
Casing Material Metal
Product Dimensions 197.9 mm × 80.2 mm × 76.2 mm (7.79" × 3.16" × 3.00") (L × W × H)
Net Weight 0.54 kg (1.19 lb)
Gross Weight 0.68 kg (1.50 lb)
