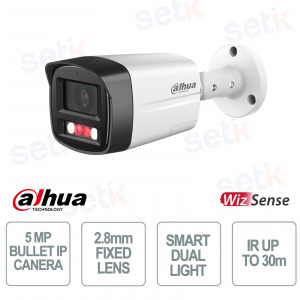

IPC-HFW2549TL-S-PV | TELECAMERA BULLET IP 5MP OTTICA FISSA 2.8mm - PERIMETER PROTECTION - DETERRENZA ATTIVA

La telecamera di rete Dahua IPC-HFW2549TL-S-PV con ottica fissa da 2.8mm offre immagini in alta definizione fino a 5MP (2960×1688), grazie al sensore CMOS da 1/2.7" e alla compressione H.265 che riduce banda e archiviazione. La tecnologia Smart Dual Light unisce LED IR e luce calda fino a 30 metri, attivandosi solo al rilevamento di movimenti per garantire registrazioni a colori senza inquinamento luminoso. Dotata di intelligenza artificiale con SMD Plus e Perimeter Protection, distingue con precisione persone e veicoli riducendo i falsi allarmi. Il sistema di Active Deterrence con sirena e luce, insieme a microfono e speaker integrati, consente un controllo interattivo. Certificata IP67 e alimentata tramite PoE, è una network camera ideale per sicurezza professionale e residenziale.
Specifiche principali:
- Ottica fissa 2.8mm grandangolare
- Risoluzione fino a 5MP (2960×1668)
- Smart Dual Light con IR e luce calda 30m
- Funzioni AI: SMD Plus e Perimeter Protection
- Active Deterrence con sirena e speaker integrati
- Microfono incorporato per audio bidirezionale
- Network camera PoE con protezione IP67
Ulteriori dettagli
✅ Network Camera:

Scheda tecnica
MODEL | IPC-HFW2549TL-S-PV |
Camera | |
Image Sensor | 1/2.7" CMOS |
Max. Resolution | 2960 (H) × 1668 (V) |
ROM | 128 MB |
RAM | 256 MB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
Min. Illumination | 0.006 lux@F1.0 (Color, 30 IRE); 0.0006 lux@F1.0 (B/W, 30 IRE); 0 lux (Illuminator on) |
S/N Ratio | > 56 dB |
Illumination Distance | Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (Warm Light) |
Illuminator On/Off Control | Auto/Manual |
Illuminator Number | 2 (IR LED); 2 (Warm light) |
Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
Lens | |
Lens Type | Fixed-focal |
Mount Type | M12 |
Focal Length | 2.8mm |
Max. Aperture | F1. |
Field of View | H: 92°; V: 45°; D: 110° |
Iris Type | Fixed |
Close Focus Distance | 1.7 m (5.58 ft) |
Intelligence | |
IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human); |
SMD | SMD Plus |
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Video | |
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
Smart Codec | Smart H.265+/ Smart H.264+ |
Video Frame Rate | Main stream: 2960 × 1668@(1–20 fps)/2688 × 1520@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
Streaming Capability | 2 stream |
Resolution | 5M (2960 × 1668); 4.6M (2880 × 1620); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
Bit Rate Control | CBR; VBR |
Video Bit Rate | H.264: 32 kbps–8192 kbps; H.265: 12 kbps–8192 kbps |
Day/Night | Auto(ICR)/Color/B/W |
BLC | Yes |
HLC | Yes |
WDR | 120 dB |
White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
Gain Control | Manual/Auto |
Noise Reduction | 3D NR |
Motion Detection | OFF/ON (4 areas, rectangular) |
Region of Interest(RoI) | Yes (4 areas) |
Smart Illumination | Yes |
Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
Mirror | Yes |
Privacy Masking | 4 areas |
Audio | |
Built-in MIC | Yes, built-in Mic |
Built-in Speaker | Yes, built-in speaker |
Audio Compression | G.711a; G.711Mu; PCM; G.726 |
Alarm | |
Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception |
Network | |
Network | RJ-45 (10/100 Base-T) |
Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour; P2P |
Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI |
User/Host | 20 (Total bandwidth: 48 M) |
Storage | FTP; SFTP; Micro SD card (support max. 256 GB) |
Browser | IE Chrome Firefox |
Management Software | Smart PSS lite; DSS; DMS |
Mobile Client | Android;iOS |
Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
Certification | |
Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
Power | |
Power Supply | 12 VDC; PoE |
Power Consumption | Basic: 2.1 W (12 VDC), 2.8 W (PoE); Max. (H.265 + intelligence on + WDR + IR intensity + warm light deterrence + speaker), 11.6 W (12 VDC), 13.5 W (PoE) |
Environment | |
Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Operating Humidity | ≤95% |
Strorage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Storage Humidity | ≤95% |
Protection | IP67 |
Structure | |
Casing Material | Metal |
Product Dimensions | 197.9 mm × 80.2 mm × 76.2 mm (7.79" × 3.16" × 3.00") (L × W × H) |
Net Weight | 0.54 kg (1.19 lb) |
Gross Weight | 0.68 kg (1.50 lb) |
