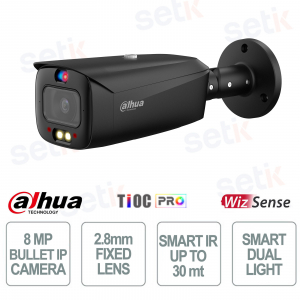

IPC-HFW3849T1-AS-PV-S5-B | 8MP IP BULLET CAMERA WITH 2.8mm FIXED LENS - PERIMETER PROTECTION - SMART DUAL LIGHT - ACTIVE DETERRENCE - BLACK


Dahua

The Dahua IPC-HFW3849T1-AS-PV-B is a black 8MP bullet IP camera with a 2.8mm fixed lens, designed to deliver Ultra HD images up to 3840x2160@30fps and ensure maximum security in any scenario. Thanks to Smart Dual Light technology, it ensures color night vision up to 30 meters, activating the white light only when a target is detected. AI functions such as SMD 4.0 and perimeter protection reduce false alarms, while active deterrence with a siren and red/blue lights increases the effectiveness of surveillance. With dual microphones, a built-in speaker, H.265 compression and IP67 protection, it represents a reliable solution for residential and professional use.

Main specifications:

- 8MP resolution (3840×2160) at 30fps

- 2.8mm fixed optics with 106° field of view

- Smart Dual Light with color night vision up to 30m

- AI functions: SMD 4.0, perimeter protection, face detection

- Siren and red/blue lights for active deterrence

- Dual microphones and built-in speaker for two-way audio

- IP67 protection and H.265 compression for efficiency and durability

Further details

✅ Optics :
2.8mm wide-angle fixed lens with up to 106° field of view, ideal for monitoring large areas with clear and detailed images.
✅ 8MP Resolution:
1/2.7" CMOS sensor with maximum resolution of 3840×2160@30fps, capable of delivering ultra HD images with vivid colors even in low light conditions .
✅ Smart Dual Light :
Intelligent system that uses basic IR LEDs and automatically activates white light only when it detects a target, recording events in color and reducing light pollution .
✅ Xinghan Large-Scale AI Models-Vision :
Advanced AI technology based on deep learning models and NPU power, which improves image processing and simultaneously handles multiple functions efficiently.
✅ SMD 4.0 :
Smart Motion Detection accurately distinguishes people and vehicles, filtering out irrelevant movements such as animals, to dramatically reduce false alarms.
✅ Intelligence :
It supports intelligent functions such as face detection, AcuPick, Smart Search and AI SSA (auto-adaptation of scene) which optimizes video parameters in real time.
✅ Perimeter Protection :
Includes intrusion, line crossing, loitering and loitering detection, with accurate person and vehicle classification for advanced security.
✅ Microphone:
It features dual microphones and a built-in speaker for clear two-way audio, useful for real-time interactions and environmental recordings.

✅ Network Camera:
IP camera with support for protocols such as ONVIF, RTSP, IPv6 and P2P, compatible with NVR, management software and mobile app for maximum integration .
✅ WizSense Technology :
Dahua series with dedicated AI chips and deep learning algorithms, designed for accurate detection of people and vehicles, providing an intelligent and affordable video surveillance solution.

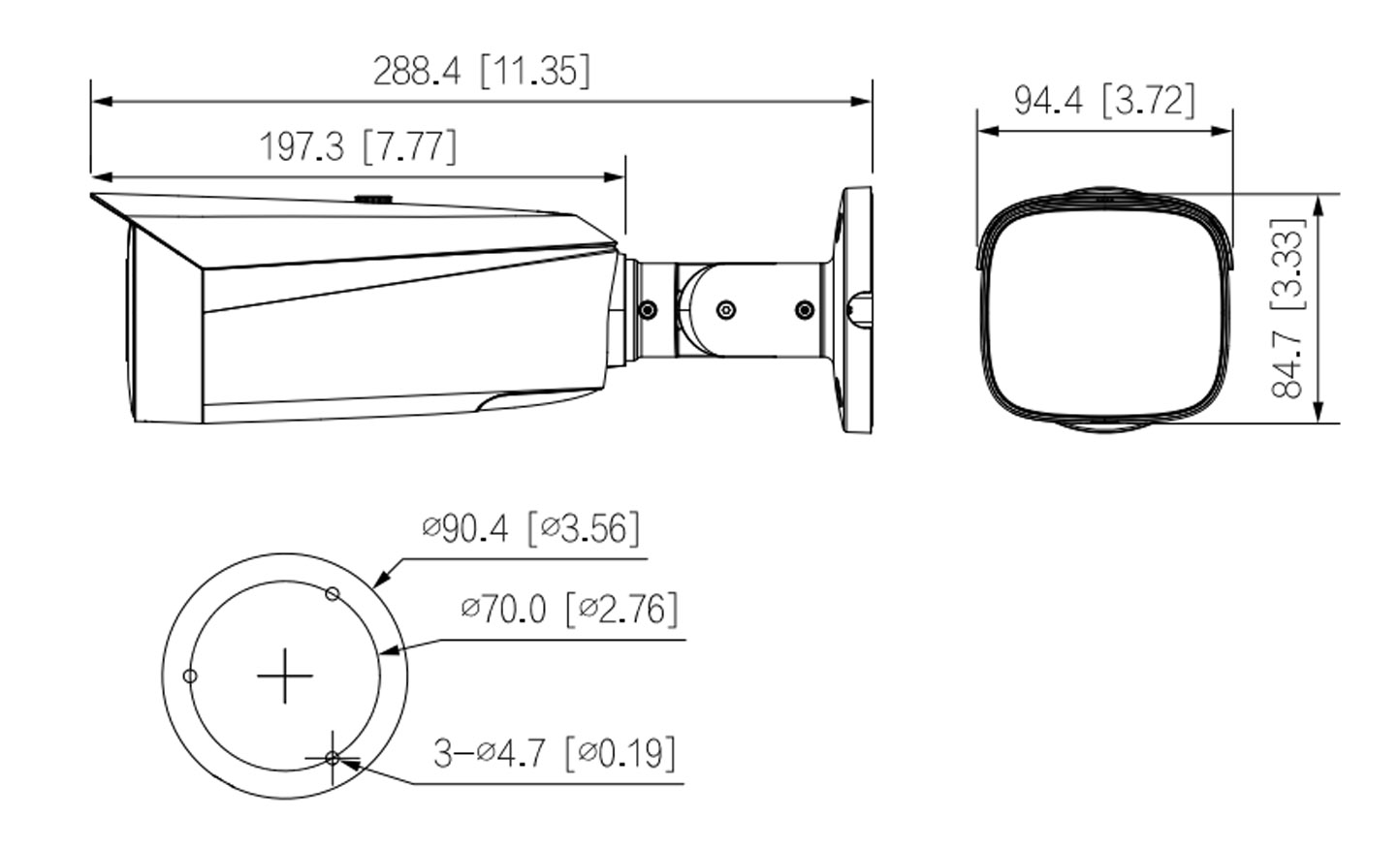

IPC-HFW3849T1-AS-PV-S5-B dimensions

Technical data sheet

MODEL IPC-HFW3849T1-AS-PV-S5-B
Room
Image Sensor 1/2.7" CMOS
Max. Resolution 3840 (H) × 2160 (V)
ROM 256 MB
RAM 2 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.004 lux@F1.0 (Color, 30 IRE)
0.0004 lux@F1.0 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm light)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (Multi-core (IR + warm) light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm
Max. Openings F1.0
Field of View H: 106°; V: 55°; D: 125°
Iris Type Fixed
Close Focus Distance 1.5 m (4.92 ft)
Intelligence
IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection.
Face Detection (Full Image) Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
SMD SMD 4.0
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
AcuPick Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
TO THE SSA Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+/ Smart H.264+
AI Coding AI H.265, AI H.264
*Includes smart codec technology, Smart H.265+ and Smart H.264+
Video Frame Rate Main stream: 3840 × 2160@(1–25/30 fps)
sub stream: 1920 × 1080@(1–25/30 fps)
Third stream: 1920 × 1080@(1 fps–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Streaming Capability 3 stream
Resolution 8M (3840 × 2160); 6M (3288 × 1850/3200 × 1800); 5M (2960 × 1688/2880 × 1620); 4M (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control VBR; CBR; ABR
Video Bit Rate H.264: 3 kbps–16384 kbps
H.265: 3 kbps–16384 kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation (SSA) Yes
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Manual/Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Lighting Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 8 areas
LDC Yes
Audio
Built-in MIC Yes, built-in Mic
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P
Interoperability ONVIF (Profile S & Profile G & Profile T); CGI
User/Host 20 (Total bandwidth: 64 M)
Storage FTP; SFTP; Micro SD card (support max. 512GB); NAS
Browser IE: IE 11
Chrome
Firefox
Management Software Smart PSS Lite; DSS; DMSS
Mobile Client Android; iOS
Cyber Security Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: wet contact, 5 mA 3–5 VDC
Alarm Output 1 channel out: wet contact, 300 mA 12 VDC
Power
Power Supply 12 VDC /PoE (802.3af)
Dual Power Backup When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.
Power Consumption Basic: 4.5W (12VDC); 5.8W (PoE)
Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 7.7 W (12 VDC); 9.4W (PoE)
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95% (RH), non-condensing
Strorage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity ≤95% (RH), non-condensing
Protection IP67
Structure
Casing Material Metal + plastic
Product Dimensions 288.4 mm × 94.4 mm × 84.7 mm (11.35" × 3.72" × 3.33") (L × W × H)
Net Weight 1.0 kg (2.20 lb)
Gross Weight 1.23 kg (2.71 lb)
