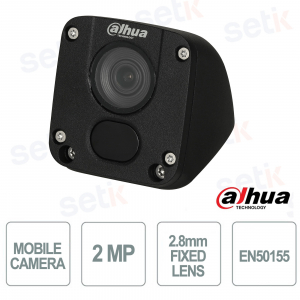

Dahua IPC-MW1230D-HM12 2MP IP camera with 2.8mm lens, 30m IR and IP67/IP6K9K protection for vehicle video surveillance

Dahua IPC-MW1230D-HM12 2MP IP camera with 2.8mm lens, 30m IR and IP67/IP6K9K protection for vehicle video surveillance
-58% nuevo

IPC-MW1230D-HM12 - is a camera with a 2.8mm fixed lens. It is a Full HD mobile IP camera designed for vehicles and extreme environments, ideal for trains and buses thanks to the E-MARK and optional EN50155 certification. It guarantees clear 2MP images with H.265+ compression, reducing bandwidth and storage consumption by up to 70%, while the integrated IR illuminator ensures night vision up to 30 meters . Robust and reliable, it is IP67 and IP6K9K certified, resistant to dust, water, vibrations and shock, with a wide operating range from -30°C to +60°C, perfect for professional mobile video surveillance. Dahua

Technical data sheet

referencia : IPC-MW1230D-HM12

brand : Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

IPC-MW1230D-HM12 | 2MP IP CAMERA WITH 2.8mm FIXED LENS - POE

Dahua

The Dahua IPC-MW1230D-HM12 IP camera with 2.8mm lens is designed for vehicle video surveillance, offering 2MP Full HD images with advanced H.265+ compression that reduces bandwidth and storage requirements by up to 70%. Certified IP67 and IP6K9K, it is resistant to dust, water, vibrations and temperature changes, ensuring reliable performance even in extreme conditions. The built-in IR illuminator ensures night vision up to 30 meters, making it ideal for buses, trains and harsh outdoor environments .

Main specifications:

- 2MP Full HD resolution (1920x1080)

- 2.8mm wide-angle fixed lens

- H.265+/H.264 video compression

- IR night vision up to 30m

- IP67 and IP6K9K certifications

- Operating range from -30°C to +60°C

Further details

Optics :
The camera is equipped with a fixed 2.8mm wide-angle lens, ideal for a wide and detailed view in vehicle video surveillance contexts, with a field angle of up to 115° horizontally.
2MP Full HD Resolution:
Thanks to the 1/2.7” CMOS sensor with 1920x1080 effective pixels, the camera guarantees clear and sharp images both day and night, supporting functions such as DWDR, 3DNR, AGC and BLC for excellent performance even in difficult lighting conditions.
IP6K9K Certification :
This certification makes it completely resistant to dust and water, with protection against high-pressure washes and steam jets, ensuring reliability even in the most extreme conditions of use on vehicles .
EN50155 :
Compliant with European railway standards, it ensures resistance to vibrations, shocks and temperature changes, making it suitable for surveillance systems installed on trains and public transport.
Advanced Protection:
It supports voltage tolerance up to ±30% and integrates 4KV lightning protection, allowing stable operation even in electrically unstable environments or harsh climatic conditions.
HEVC (H.265) :
H.265/Smart H.265+ compression technology allows for up to 70% reduction in bandwidth and storage consumption compared to traditional H.264, while maintaining high video quality and improving video stream management efficiency.
IPC-MW1230D-HM12 dimensions

Technical data sheet

MODEL IPC-MW1230D-HM12
Room
Image Sensor 1/2.7” 2Megapixel progressive scan CMOS
Max. Resolution 1920 (H) × 1080 (V)
RAM/ROM 128MB/16MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
Minimum Illumination 0.02Lux/F2.1(Color,1/3s,30IRE)
0.2Lux/2.1(Color,1/30s,30IRE)
0Lux/F2.1(IR on)
S/N Ratio More than 50dB
Illumination Distance Distance up to 30m (98ft)
IR On/Off Control Auto/Manual
IR LEDs 1
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 2.8 mm
Max. Openings F2.1
Field of View H: 115° (86°, 53°), V: 62° (47°, 30°)
Focus Control Fixed
Video
Compression H.265+/H.265/H.264+/H.264
Streaming Capability 2
Resolution 1080P(1920×1080)/1.3M(1280x960)/ 720P(1280×720)/D1(704×576/704×480)/VGA(640×480)/CIF(352×288/352×240)
Video Frame Rate Main stream: 1080P(1~25/30fps)
Substream: D1(1~25/30fps)
Video Bit Rate H.264: 24 kbps–6144 kbps
H.265: 9 kbps–6144 kbps
Day/Night Auto(ICR)/Color/B/W
BLC Mode BLC / HLC / DWDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zones)
Electronic Image Stabilization (EIS) N/A
Smart IR Support
Defog N/A
Digital Zoom N/A
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Network
Ethernet M12 A-Coding (10/100Base-T)
Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;
FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;
UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;
IGMP; SNMP
Interoperability ONVIF profile S, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users /20 Users
Edge Storage NAS
Local PC for instant recording
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, Easy4ip
Smartphone iOS, Android
Certifications
Certifications CE (EN 60950:2000)
FCC: FCC Part 15 Subpart B
E-mark (ECE-Regulation No.10)
EN50155 (Optional)
Electrical
Power Supply DC12V
Power Consumption 12 VDC/PoE
Environmental
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67,IP6K9K
Construction
Casing Metal
Dimensions 80.2mm×65.8mm×59.2mm (3.16”×2.59”×2.33”)
Net Weight 0.28Kg (0.62lb)
Gross Weight 0.35Kg (0.77lb)
