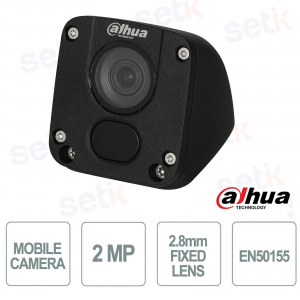

Telecamera IP Dahua IPC-MW1230D-HM12 2MP con ottica 2.8mm, IR 30m e protezione IP67/IP6K9K per videosorveglianza veicolare
IPC-MW1230D-HM12 - è una telecamera con ottica fissa da 2.8mm è una videocamera IP mobile Full HD progettata per veicoli e ambienti estremi, ideale per treni e autobus grazie alla certificazione E-MARK e opzionale EN50155. Garantisce immagini nitide da 2MP con compressione H.265+, riducendo fino al 70% il consumo di banda e storage, mentre l’illuminatore IR integrato assicura visione notturna fino a 30 metri. Robusta e affidabile, è certificata IP67 e IP6K9K, resistente a polvere, acqua, vibrazioni e shock, con ampio range operativo da -30°C a +60°C, perfetta per la videosorveglianza professionale in mobilità Dahua
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>
IPC-MW1230D-HM12 | TELECAMERA IP 2MP OTTICA FISSA 2.8mm - POE

La telecamera IP Dahua IPC-MW1230D-HM12 con ottica da 2.8mm è progettata per la videosorveglianza veicolare, offrendo immagini Full HD da 2MP con compressione avanzata H.265+ che riduce fino al 70% banda e storage. Certificata IP67 e IP6K9K, resiste a polvere, acqua, vibrazioni e sbalzi di temperatura, garantendo prestazioni affidabili anche in condizioni estreme. L’illuminatore IR integrato assicura visione notturna fino a 30 metri, rendendola ideale per autobus, treni e ambienti esterni difficili.
Specifiche principali:
- Risoluzione 2MP Full HD (1920x1080)
- Ottica fissa da 2.8mm grandangolare
- Compressione video H.265+/H.264
- Visione notturna IR fino a 30m
- Certificazioni IP67 e IP6K9K
- Range operativo da -30°C a +60°C
Ulteriori dettagli

Scheda tecnica
MODEL | IPC-MW1230D-HM12 |
Camera | |
Image Sensor | 1/2.7” 2Megapixel progressive scan CMOS |
Max. Resolution | 1920 (H) × 1080 (V) |
RAM/ROM | 128MB/16MB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s |
Minimum Illumination | 0.02Lux/F2.1( Color,1/3s,30IRE) 0.2Lux/2.1( Color,1/30s,30IRE) 0Lux/F2.1(IR on) |
S/N Ratio | More than 50dB |
Illumination Distance | Distance up to 30m (98ft) |
IR On/Off Control | Auto/ Manual |
IR LEDs | 1 |
Lens | |
Lens Type | Fixed |
Mount Type | Board-in |
Focal Length | 2.8 mm |
Max. Aperture | F2.1 |
Field of View | H: 115° (86°, 53°), V: 62° (47°, 30°) |
Focus Control | Fixed |
Video | |
Compression | H.265+/H.265/H.264+/H.264 |
Streaming Capability | 2 |
Resolution | 1080P(1920×1080)/1.3M(1280x960)/ 720P(1280×720)/D1(704×576/704×480)/VGA(640×480)/CIF(352×288/352×240) |
Video Frame Rate | Main stream: 1080P(1~25/30fps) sub stream: D1(1~25/30fps) |
Video Bit Rate | H.264: 24 kbps–6144 kbps H.265: 9 kbps–6144 kbps |
Day/Night | Auto(ICR)/Color/B/W |
BLC Mode | BLC / HLC / DWDR |
White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
Gain Control | Auto/Manual |
Noise Reduction | 3D DNR |
Motion Detection | Off / On (4 Zone, Rectangle) |
Region of Interest | Off / On (4 Zone) |
Electronic Image Stabilization (EIS) | N/A |
Smart IR | Support |
Defog | N/A |
Digital Zoom | N/A |
Flip | 0°/90°/180°/270° |
Mirror | Off / On |
Privacy Masking | Off / On (4 Area, Rectangle) |
Network | |
Ethernet | M12 A-Coding(10/100Base-T) |
Protocol | HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
Interoperability | ONVIF profile S, CGI |
Streaming Method | Unicast / Multicast |
Max. User Access | 10 Users /20 Users |
Edge Storage | NAS Local PC for instant recording |
Web Viewer | IE, Chrome, Firefox, Safari |
Management Software | Smart PSS, DSS, Easy4ip |
Smart Phone | IOS, Android |
Certifications | |
Certifications | CE (EN 60950:2000) FCC: FCC Part 15 Subpart B E-mark(ECE-Regulation No.10) EN50155(Optional) |
Electrical | |
Power Supply | DC12V |
Power Consumption | 12 VDC/PoE |
Environmental | |
Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
Strorage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
Ingress Protection | IP67,IP6K9K |
Construction | |
Casing | Metal |

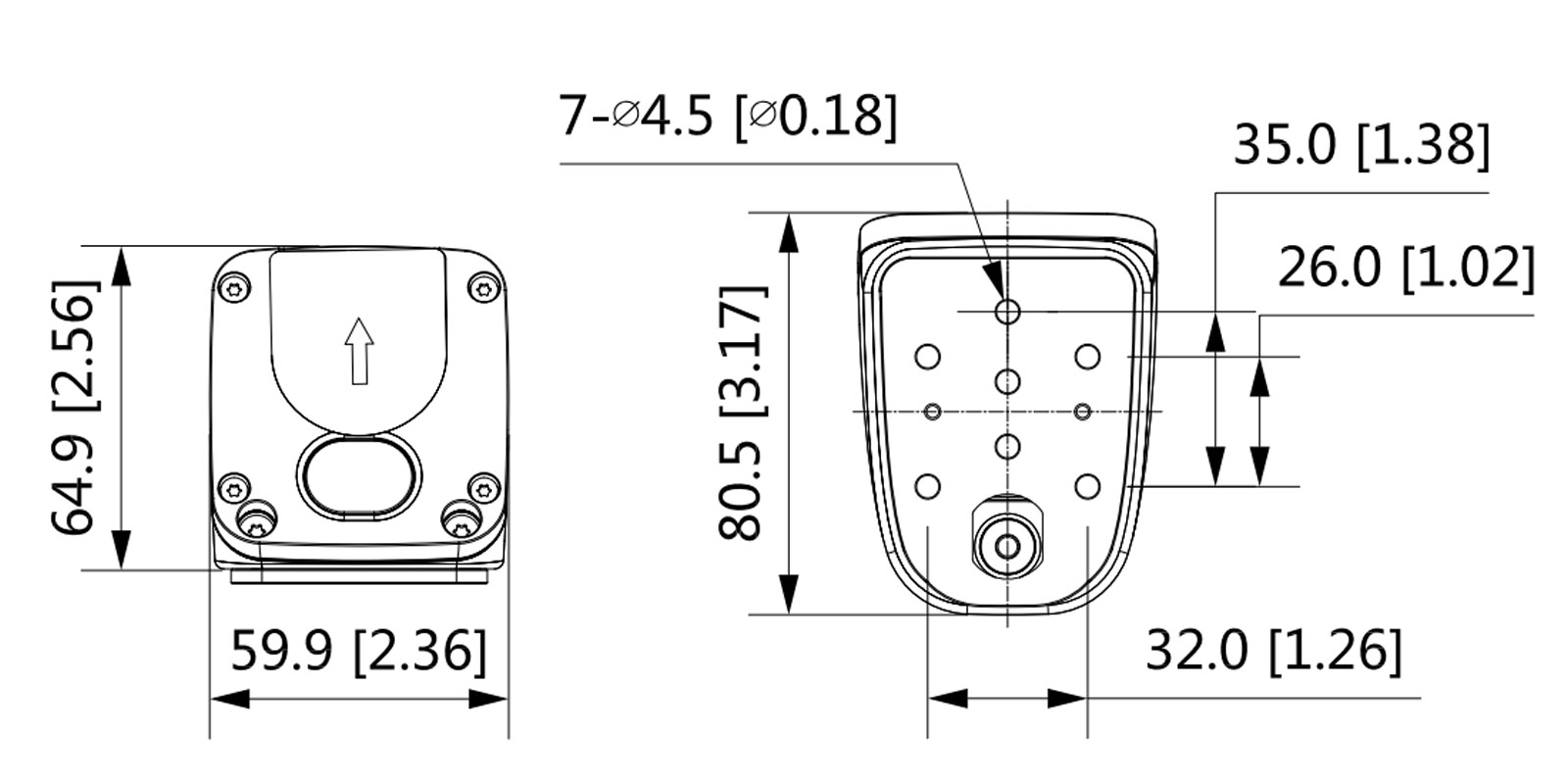

Dimensions | 80.2mm×65.8mm×59.2mm (3.16”×2.59”×2.33”) |
Net Weight | 0.28Kg (0.62lb) |
Gross Weight | 0.35Kg (0.77lb) |
