The HAC-HDW1500CLQ-IL-A-S3 is a 5MP HDCVI camera designed to deliver clear images in any condition thanks to Smart Dual Light technology, which automatically switches between white light and infrared to always ensure maximum visibility. The Starlight , 3DNR and Super Adapt functions optimize video quality, reducing noise and improving details even in low-light scenarios. The built-in microphone allows audio transmission over coaxial cable, enriching video surveillance with reliable acoustic evidence. The IP67 structure ensures resistance to atmospheric agents, while the eyeball design with quick base facilitates installation in residential and professional contexts. A complete solution that combines high performance, installation flexibility and long-lasting reliability. Dahua
LIQUIDACION TOTAL ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>
HAC-HDW1500CLQ-IL-A-S3 | 5MP CAMERA WITH 2.8mm FIXED LENS - SMART DUAL LIGHT

The Dahua HAC-HDW1500CLQ-IL-A S3 is a 5MP HDCVI camera designed to ensure clear images in any conditions thanks to Smart Dual Light technology, which automatically switches between white light and infrared for always clear footage free from light pollution. The Starlight sensor, combined with the Advanced 3DNR system, improves visual performance by drastically reducing noise in low-light scenes. The integrated microphone ensures clean audio recording via coaxial cable, while the Super Adapt algorithm intelligently adjusts image parameters based on the scenario. The eyeball design with quick-installation base and IP67 protection make the device ideal for indoor and outdoor installations, ensuring reliability even in critical weather conditions.
Main specifications:
- 5MP resolution with 16:9 output and Starlight technology for detailed images even at night
- Built-in microphone with advanced audio signal processing
- Super Adapt algorithm for automatic video quality adjustment
- Advanced 3DNR technology for noise reduction and bandwidth optimization
- IP67 construction, resistant to dust, water and extreme conditions
- Quick installation thanks to eyeball support and CVI/TVI/AHD/CVBS compatibility
Further details

Technical data sheet
| HAC-HDW1500CLQ-IL-A-S3 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Room |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Sensor |
5 MP CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Resolution |
2880 (H) × 1620 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electronic Shutter Speed |
PAL: 1/25 s–1/100000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Min. Illumination |
0.01 lux@F1.6 (Color, 30 IRE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
S/N Ratio |
>65 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illumination Distance |
IR: 30 m (98.43 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illuminator On/Off Control |
Car |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illuminator Number |
2 (Multi-core light) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Angle Adjustment |
Pan: 0°–360° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens Type |
Fixed-focal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens Mount |
M12 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focal Length |
2.8 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Openings |
F1.6 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Field of View |
H: 113.3°; V: 62.1°; D: 134.3° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Iris Control |
Fixed |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Close Focus Distance |
0.8 m (2.62 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Frame Rate |
CVI: |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Resolution |
5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480); TVI 5M 16:9 (2960 × 1665) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Day/Night |
Auto(ICR)/Color/B/W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
BLC |
BLC; HLC; DWDR; |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
WDR |
DWDR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
White Balance |
Auto; White balance area |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gain Control |
Car |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Noise Reduction |
3D NR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illumination Mode |
Smart IR&WL; WL Mode; IR Mode |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mirror |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Privacy Masking |
Off/On (8 areas, rectangle) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pick-up Distance |
8 m (26.25 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE-LVD: EN 62368-1; |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Built-in Mic | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Camera | CVI; TVI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Output |
Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
12 VDC ± 30% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
Max 4.3 W (12 VDC, WLED on) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–40 °C to +55 °C (–40 °F to +131 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
<95% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
–40 °C to +55 °C (–40 °F to +131 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
<95% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IP67 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Anti-corrosion Level |
Basic Protection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
Plastic |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

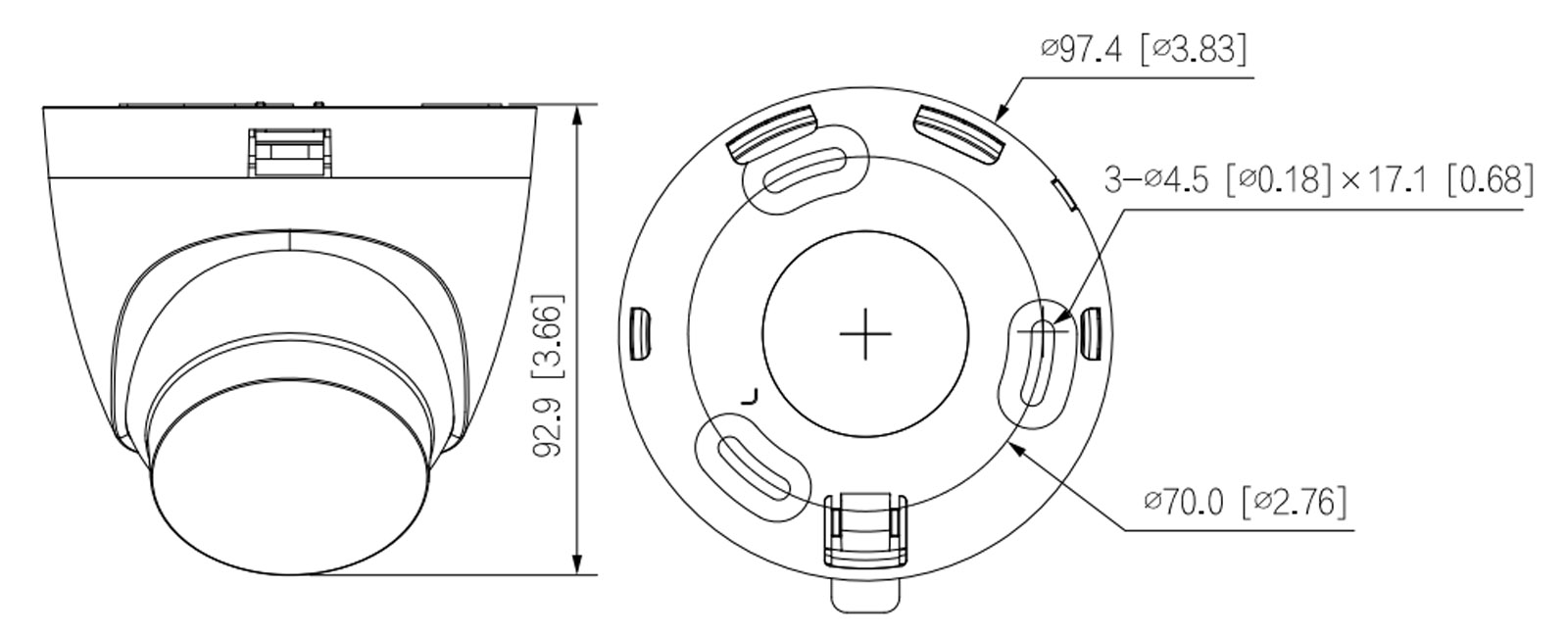

Product Dimensions |
Φ97.4mm × 92.9mm (Φ3.83" × 3.66") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
0.22 kg (0.49 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.29 kg (0.64 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Wall mount; ceiling mount; vertical pole mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
