HAC-HDW1500CLQ-IL-A-S3 – 5MP Smart Dual Light Camera - S3 Version - Dahua

HAC-HDW1500CLQ-IL-A-S3 – 5MP Smart Dual Light Camera - S3 Version - Dahua
BEST PRICE -57% New

The HAC-HDW1500CLQ-IL-A-S3 is a 5MP HDCVI camera designed to deliver clear images in any condition thanks to Smart Dual Light technology, which automatically switches between white light and infrared to always ensure maximum visibility. The Starlight , 3DNR and Super Adapt functions optimize video quality, reducing noise and improving details even in low-light scenarios. The built-in microphone allows audio transmission over coaxial cable, enriching video surveillance with reliable acoustic evidence. The IP67 structure ensures resistance to atmospheric agents, while the eyeball design with quick base facilitates installation in residential and professional contexts. A complete solution that combines high performance, installation flexibility and long-lasting reliability. Dahua

Technical data sheet

Reference: HAC-HDW1500CLQ-IL-A-S3

Brand: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

HAC-HDW1500CLQ-IL-A-S3 | 5MP CAMERA WITH 2.8mm FIXED LENS - SMART DUAL LIGHT

Dahua

The Dahua HAC-HDW1500CLQ-IL-A S3 is a 5MP HDCVI camera designed to ensure clear images in any conditions thanks to Smart Dual Light technology, which automatically switches between white light and infrared for always clear footage free from light pollution. The Starlight sensor, combined with the Advanced 3DNR system, improves visual performance by drastically reducing noise in low-light scenes. The integrated microphone ensures clean audio recording via coaxial cable, while the Super Adapt algorithm intelligently adjusts image parameters based on the scenario. The eyeball design with quick-installation base and IP67 protection make the device ideal for indoor and outdoor installations, ensuring reliability even in critical weather conditions.

Main specifications:

- 5MP resolution with 16:9 output and Starlight technology for detailed images even at night

- Built-in microphone with advanced audio signal processing

- Super Adapt algorithm for automatic video quality adjustment

- Advanced 3DNR technology for noise reduction and bandwidth optimization

- IP67 construction, resistant to dust, water and extreme conditions

- Quick installation thanks to eyeball support and CVI/TVI/AHD/CVBS compatibility

Further details

Optics :
The 2.8mm fixed lens offers a wide viewing angle of up to 113.3° , ideal for monitoring large areas in a single frame. This optic allows you to clearly capture close-up subjects and expansive scenes, maintaining high fidelity and depth of detail, especially in residential or commercial settings.
Resolution:
With a 5MP (2880×1620) resolution, the camera guarantees sharp and detailed images, perfect for identifying objects and faces even from a distance. Visual performance is improved by Starlight processing and the 3DNR system, which reduces video noise and increases image quality in low-light conditions.
Microphone:
The built-in microphone uses advanced audio processing technology that transmits sound over a coaxial cable, reducing background noise and delivering clear, useful audio to support video recordings, improving evidence collection in security applications.
Smart Dual Light :
The Smart Dual Light function combines IR illumination and intelligent white light up to 30 m , automatically activating visible light when a target is detected in the area of interest. When no target is present, the camera switches to IR to reduce light pollution, ensuring vivid, identifiable, and always optimized images.

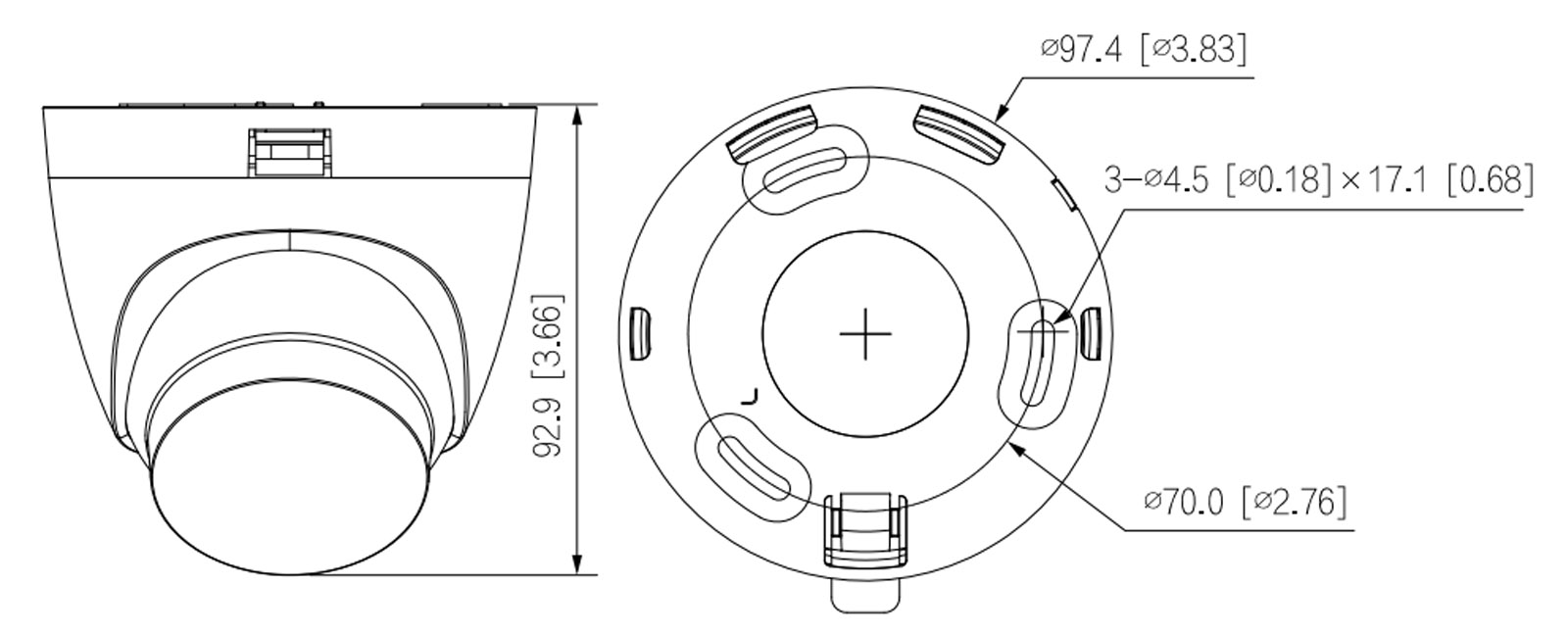

HAC-HDW1500CLQ-IL-A-S3 dimensions

Technical data sheet

HAC-HDW1500CLQ-IL-A-S3

Room

Image Sensor

5 MP CMOS

Max. Resolution

2880 (H) × 1620 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s

Min. Illumination

0.01 lux@F1.6 (Color, 30 IRE)
0.001 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

IR: 30 m (98.43 ft)
Warm Light: 30 m (98.43 ft)

Illuminator On/Off Control

Car

Illuminator Number

2 (Multi-core light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm

Max. Openings

F1.6

Field of View

H: 113.3°; V: 62.1°; D: 134.3°

Iris Control

Fixed

Close Focus Distance

0.8 m (2.62 ft)

Video

Video Frame Rate

CVI:
PAL: 5M@25fps; 5M@12.5fps; 4M@25fps; 1080p@25fps
NTSC: 5M@25fps; 5M@20fps; 5M@10fps; 4M@30fps; 1080p@30fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 5M 16:9@20 fps
NTSC: 5M 16:9@20 fps
CVBS:
PAL: 960H;
NTSC: 960H

Resolution

5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480); TVI 5M 16:9 (2960 × 1665)

Day/Night

Auto(ICR)/Color/B/W

BLC

BLC; HLC; DWDR;

WDR

DWDR

White Balance

Auto; White balance area

Gain Control

Car

Noise Reduction

3D NR

Illumination Mode

Smart IR&WL; WL Mode; IR Mode

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Pick-up Distance

8 m (26.25 ft)

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;

Audio

Built-in Mic Yes
Audio Camera CVI; TVI

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)

Power

Power Supply

12 VDC ± 30%

Power Consumption

Max 4.3 W (12 VDC, WLED on)

Environment

Operating Temperature

–40 °C to +55 °C (–40 °F to +131 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–40 °C to +55 °C (–40 °F to +131 °F)

Storage Humidity

<95% (RH), non-condensing

Protection

IP67

Anti-corrosion Level

Basic Protection

Structure

Casing Material

Plastic

Product Dimensions

Φ97.4mm × 92.9mm (Φ3.83" × 3.66")

Net Weight

0.22 kg (0.49 lb)

Gross Weight

0.29 kg (0.64 lb)

Installation

Wall mount; ceiling mount; vertical pole mount

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
