DS-2DP3D404IWG1-E/36(F5) - DP3A Mini PanoVu is a 4 MP camera with dual panoramic + PTZ channel designed to capture large areas and great details simultaneously , thanks to the 1/2.8" Progressive Scan CMOS sensor and 4× optical + 16× digital zoom. It integrates DarkFighter technology for excellent performance in low light conditions , WDR 120 dB , 3D DNR and defog for always clear images. It supports IR up to 20 m , PTZ movement with pan 0°–340° and tilt 0°–90° , up to 300 presets , H.265/H.264 compression and MicroSD slot up to 512 GB. Equipped with IP54 protection , 12V DC or PoE (802.3at) power supply and smart functions such as line crossing, intrusion detection and regional statistics, it represents a professional solution for advanced video surveillance. Hikvision

Technical Data Sheet

referencia : DS-2DP3D404IWG1-E/36(F5)

brand : Hikvision

EAN: 6936422142773

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

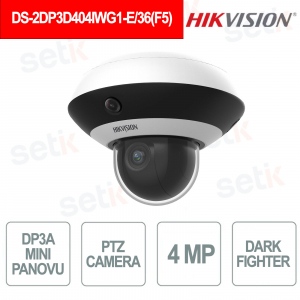

DS-2DP3D404IWG1-E/36(F5) – PANOVU DP3A MINI PTZ CAMERA - DUAL LENS 4MP RESOLUTION - DARKFIGHTER

Hikvision

The Hikvision DS-2DP3D404IWG1-E/36 DP3A Mini PanoVu is a 4 MP network camera with dual panoramic + PTZ channels , designed to cover large areas with high details simultaneously , thanks to the 1/2.8" Progressive Scan CMOS sensor and 4× optical + 16× digital zoom. It integrates DarkFighter technology for excellent low-light performance, WDR 120 dB , 3D DNR and defog for always clear and balanced images. It supports IR up to 20 m , PTZ movement 0°–340° pan and 0°–90° tilt with 300 presets , H.265/H.264 compression, MicroSD slot up to 512 GB and smart functions such as line crossing and intrusion detection. With IP54 protection and 12V DC or PoE (802.3at) power supply, it represents a professional solution for advanced indoor video surveillance. and outdoors.

Main features:

- 4MP resolution with dual channel Panoramic + PTZ

- 4× optical and 16× digital zoom

- DarkFighter technology for low light

- WDR 120 dB, 3D DNR and Defog

- IR up to 20m

- PTZ 340° Pan / 90° Tilt with 300 presets

- H.265/H.264 compression

- MicroSD slot up to 512 GB

- IP54 protection and 802.3at PoE power supply

Further details

✅ Optics :
 Panoramic + PTZ dual-channel system with 1/2.8" Progressive Scan CMOS sensor (panoramic) and 1/3" CMOS (PTZ), 2 mm focal length for wide vision and 2.8–12 mm motorized , with 4× optical and 16× digital zoom to capture large areas and precise details simultaneously.
✅ Resolution:
 4MP high definition imaging, with resolution up to 2560×1440 (PTZ) and 1920×1080 (panoramic) , H.265/H.264/MJPEG support and ROI for bandwidth optimization and video quality.
✅ PTZ :
Pan 0°–340° and Tilt 0°–90° movement, configurable speed up to 35°/s , with 300 presets , 3D positioning and automatic preset functions for dynamic control of the monitored area.
✅ DarkFighter :
DarkFighter technology for excellent low-light performance , with 120 dB WDR , 3D DNR and digital defog for clear images even in complex environments and backlighting.
✅ Built-in Microphone and Speaker :
 Equipped with a built-in microphone and speaker , it allows two-way audio communication and direct environmental monitoring without external devices.
✅ Audio :
Supports G.711, G.722.1, G.726, MP2L2, MP3, AAC compression, with dedicated audio input and output and ambient noise filtering for clear and professional transmissions.
✅ Motion Detection :
Includes motion detection , video tampering alarm and smart events such as line crossing, intrusion detection, region entrance/exit and audio exception for advanced security .
✅  Network Protocol:
 Compatible with ONVIF (Profile S, G, T) , supports TCP/IP, HTTPS, RTSP, RTP, SMTP, SNMP, SSL/TLS protocols, with advanced security features such as HTTPS encryption, 802.1X and IP filter , ensuring enterprise-level integration and protection.

Technical data sheet

DS-2DP3D404IWG1-E/36(F5)
Room
Image Sensor [Panoramic channel] 1/2.8" Progressive Scan CMOS, [PTZ channel] 1/3" Progressive Scan CMOS
Min. Illumination [Panoramic channel] Color: 0.03 Lux @ (F2.3, AGC ON), B/W: 0.01 Lux @ (F2.3, AGC ON), 0 Lux with IR,
[PTZ channel] Color: 0.02 Lux @ (F1.82, AGC ON), B/W: 0.01 Lux @ (F1.82, AGC ON), 0 lux with IR
Shutter Speed 1/30 s to 1/30,000 s
Slow Shutter Yes
Day & Night ICR
Zoom [PTZ channel] 4 × optical, 16 × digital
Max. Resolution [Panoramic channel] 1920 × 1080, [PTZ channel] 2560 × 1440
Lens
Focus Auto, semi-auto, manual
Focal Length [Panoramic channel] 2 mm, [PTZ channel] 2.8 to 12 mm
Zoom Speed [PTZ channel]: approx. 3.3 s
FOV [Panoramic channel]
horizontal field of view: 125.3°, vertical field of view: 73.2°, diagonal field of view: 143.1°,
[PTZ channel]
horizontal field of view: 93.2° to 48.6°, vertical field of view: 50.3° to 27.3°, diagonal field of view: 109.7° to 55.8°
Openings [Panoramic channel] Max. F2.3, [PTZ channel] Max. F1.82
Illuminator
Supplement Light Type IR
Supplement Light Range IR distance: up to 20 m
PTZ
Movement Range (Pan) [PTZ channel] 0° to 340°
Movement Range (Tilt) [PTZ channel] 0° to 90°
Pan Speed Pan speed: configurable from 0.1° to 35°/s, preset speed: 35°/s
Tilt Speed tilt speed: configurable from 0.1° to 30°/s, preset speed 30°/s
Proportional Pan Yes
Presets 300
Power-off Memory Yes
Park Action Presets
3D Positioning Yes
PTZ Status Display Yes
Preset Freezing Yes
Scheduled Task Preset, dome reboot, dome adjust
Video
Main Stream [PTZ channel]
Channel 1:
50 Hz: 25 fps (1920 × 1080,1280 × 960,1280 × 720), 60 Hz: 30 fps (1920 × 1080,1280 × 960,1280 × 720)
[Panoramic channel]
Channel 2, 3, 4:
50Hz: 25fps (2560×1440,1920×1080,1280×960,1280×720),
60Hz: 30fps (2560×1440,1920×1080,1280×960,1280×720)
Sub-Stream

[Panoramic channel]
50Hz:25fps(1920×1080,1280×960,1280×720,704×576,640×480,352×288)
60Hz:30fps(1920×1080,1280×960,1280×720,704×480,640×480,352×240)
[PTZ channel]
50Hz:25fps(1920×1080,1280×960,1280×720,704×576,640×480,352×288)
60Hz:30fps(1920×1080,1280×960,1280×720,704×480,640×480,352×240)
Third Stream

[Panoramic channel]
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
50 Hz: [PTZ channel]
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
Region of Interest (ROI)

8 fixed regions for main stream
Video Bit Rate

32 Kbps to 16384 Mbps
H.264 Type

Baseline Profile, Main Profile, High Profile
H.265 Type

Main Profile
Video Compression

H.265, H.264, MJPEG
Scalable Video Coding (SVC)

Yes
Audio
Audio Compression

G.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC
Audio Bit Rate

8~320 Kbps(MP3)/16 Kbps(G.726)/16 Kbps(G.722.1)/32~192 Kbps(MP2L2)/16~64 Kbps(AAC-LC)/PCM/64 Kbps(G.711ulaw/G.711alaw)
Audio Sampling Rate

32kHz/16kHz/48kHz/8kHz
Environment Noise Filtering

Yes
Network
API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Network Storage

NAS (NFS, SMB/CIFS)
Protocols TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTCP,RTSP,NTP,UPnP,SMTP,SNMP,IGMP,QoS,UDP,Bonjour,SSL/TLS,WebSocket,WebSockets
Simultaneous Live View

Up to 20 channels
User/Host

Up to 32 users. 3 user levels: administrator, operator, and user
Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log
Client

iVMS-4200
Web Browser

IE8+, Chrome31 to 44, Firefox 30 to 51, Safari8.0+
Image Settings

sharpness, saturation, brightness, contrast
Wide Dynamic Range (WDR)

120 dB
SNR

≥ 52 dB
Defog

Digital defog
Day/Night Switch

Day, night, auto, schedule
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask

[Panoramic channel] 24 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks
Regional Focus [Panoramic channel] No, [PTZ channel] Yes
Regional Exposure Yes
Image Parameters Switch

Yes
Interface
Built-in Microphone 1 built-in microphone
Built-in Speaker 1 built-in speaker
Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,
1 output (line out), line level, output impedance: 600 Ω
RS-485 No
Ethernet Interface RJ45, self-adaptive 10M/100M Ethernet port
On-Board Storage Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 512GB
Reset Yes
Event
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception detection
Linkage [Panoramic channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
General
General Function

mirror, watermark, IP address filter, password protection
Power

DC 12V| 2A，PoE(802.3at) 42.5-57V| 0.6A
Operating Condition

-10 °C to 50 °C (14 °F to 122 °F). Humidity 90% or less (non-condensing)
Material

PC
Dimension

Ø183.2 mm × 128.6 mm (Ø7.2" × 5.2")
Weight

Approx. 0.9 kg (1.98 lb.)
Approval
Protection

IP54 (IEC 60529-2013)
