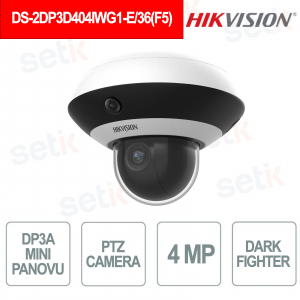

DS-2DP3D404IWG1-E/36 4MP Mini PanoVu PTZ 4x DarkFighter IP54 with IR 20m and PoE - Hikvision

DS-2DP3D404IWG1-E/36 4MP Mini PanoVu PTZ 4x DarkFighter IP54 with IR 20m and PoE - Hikvision
-35% New

DS-2DP3D404IWG1-E/36(F5) - DP3A Mini PanoVu is a 4 MP camera with dual panoramic + PTZ channel designed to capture large areas and great details simultaneously , thanks to the 1/2.8" Progressive Scan CMOS sensor and 4× optical + 16× digital zoom. It integrates DarkFighter technology for excellent performance in low light conditions , WDR 120 dB , 3D DNR and defog for always clear images. It supports IR up to 20 m , PTZ movement with pan 0°–340° and tilt 0°–90° , up to 300 presets , H.265/H.264 compression and MicroSD slot up to 512 GB. Equipped with IP54 protection , 12V DC or PoE (802.3at) power supply and smart functions such as line crossing, intrusion detection and regional statistics, it represents a professional solution for advanced video surveillance. Hikvision

Technical Data Sheet

Reference: DS-2DP3D404IWG1-E/36(F5)

Brand: Hikvision

EAN: 6936422142773

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DS-2DP3D404IWG1-E/36(F5) – PANOVU DP3A MINI PTZ CAMERA - DUAL LENS 4MP RESOLUTION - DARKFIGHTER

Hikvision

The Hikvision DS-2DP3D404IWG1-E/36 DP3A Mini PanoVu is a 4 MP network camera with dual panoramic + PTZ channels , designed to cover large areas with high details simultaneously , thanks to the 1/2.8" Progressive Scan CMOS sensor and 4× optical + 16× digital zoom. It integrates DarkFighter technology for excellent low-light performance, WDR 120 dB , 3D DNR and defog for always clear and balanced images. It supports IR up to 20 m , PTZ movement 0°–340° pan and 0°–90° tilt with 300 presets , H.265/H.264 compression, MicroSD slot up to 512 GB and smart functions such as line crossing and intrusion detection. With IP54 protection and 12V DC or PoE (802.3at) power supply, it represents a professional solution for advanced indoor video surveillance. and outdoors.

Main features:

- 4MP resolution with dual channel Panoramic + PTZ

- 4× optical and 16× digital zoom

- DarkFighter technology for low light

- WDR 120 dB, 3D DNR and Defog

- IR up to 20m

- PTZ 340° Pan / 90° Tilt with 300 presets

- H.265/H.264 compression

- MicroSD slot up to 512 GB

- IP54 protection and 802.3at PoE power supply


Further details

Optics :
Panoramic + PTZ dual-channel system with 1/2.8" Progressive Scan CMOS sensor (panoramic) and 1/3" CMOS (PTZ), 2 mm focal length for wide vision and 2.8–12 mm motorized , with 4× optical and 16× digital zoom to capture large areas and precise details simultaneously.
Resolution:
4MP high definition imaging, with resolution up to 2560×1440 (PTZ) and 1920×1080 (panoramic) , H.265/H.264/MJPEG support and ROI for bandwidth optimization and video quality.
PTZ :
Pan 0°–340° and Tilt 0°–90° movement, configurable speed up to 35°/s , with 300 presets , 3D positioning and automatic preset functions for dynamic control of the monitored area.
DarkFighter :
DarkFighter technology for excellent low-light performance , with 120 dB WDR , 3D DNR and digital defog for clear images even in complex environments and backlighting.
Built-in Microphone and Speaker :
Equipped with a built-in microphone and speaker , it allows two-way audio communication and direct environmental monitoring without external devices.
Audio :
Supports G.711, G.722.1, G.726, MP2L2, MP3, AAC compression, with dedicated audio input and output and ambient noise filtering for clear and professional transmissions.
Motion Detection :
Includes motion detection , video tampering alarm and smart events such as line crossing, intrusion detection, region entrance/exit and audio exception for advanced security .
 Network Protocol:
Compatible with ONVIF (Profile S, G, T) , supports TCP/IP, HTTPS, RTSP, RTP, SMTP, SNMP, SSL/TLS protocols, with advanced security features such as HTTPS encryption, 802.1X and IP filter , ensuring enterprise-level integration and protection.

Technical data sheet

DS-2DP3D404IWG1-E/36(F5)
Room
Image Sensor [Panoramic channel] 1/2.8" Progressive Scan CMOS, [PTZ channel] 1/3" Progressive Scan CMOS
Min. Illumination [Panoramic channel] Color: 0.03 Lux @ (F2.3, AGC ON), B/W: 0.01 Lux @ (F2.3, AGC ON), 0 Lux with IR,
[PTZ channel] Color: 0.02 Lux @ (F1.82, AGC ON), B/W: 0.01 Lux @ (F1.82, AGC ON), 0 lux with IR
Shutter Speed 1/30 s to 1/30,000 s
Slow Shutter Yes
Day & Night ICR
Zoom [PTZ channel] 4 × optical, 16 × digital
Max. Resolution [Panoramic channel] 1920 × 1080, [PTZ channel] 2560 × 1440
Lens
Focus Auto, semi-auto, manual
Focal Length [Panoramic channel] 2 mm, [PTZ channel] 2.8 to 12 mm
Zoom Speed [PTZ channel]: approx. 3.3 s
FOV [Panoramic channel]
horizontal field of view: 125.3°, vertical field of view: 73.2°, diagonal field of view: 143.1°,
[PTZ channel]
horizontal field of view: 93.2° to 48.6°, vertical field of view: 50.3° to 27.3°, diagonal field of view: 109.7° to 55.8°
Openings [Panoramic channel] Max. F2.3, [PTZ channel] Max. F1.82
Illuminator
Supplement Light Type IR
Supplement Light Range IR distance: up to 20 m
PTZ
Movement Range (Pan) [PTZ channel] 0° to 340°
Movement Range (Tilt) [PTZ channel] 0° to 90°
Pan Speed Pan speed: configurable from 0.1° to 35°/s, preset speed: 35°/s
Tilt Speed tilt speed: configurable from 0.1° to 30°/s, preset speed 30°/s
Proportional Pan Yes
Presets 300
Power-off Memory Yes
Park Action Presets
3D Positioning Yes
PTZ Status Display Yes
Preset Freezing Yes
Scheduled Task Preset, dome reboot, dome adjust
Video
Main Stream [PTZ channel]
Channel 1:
50 Hz: 25 fps (1920 × 1080,1280 × 960,1280 × 720), 60 Hz: 30 fps (1920 × 1080,1280 × 960,1280 × 720)
[Panoramic channel]
Channel 2, 3, 4:
50Hz: 25fps (2560×1440,1920×1080,1280×960,1280×720),
60Hz: 30fps (2560×1440,1920×1080,1280×960,1280×720)
Sub-Stream

[Panoramic channel]
50Hz:25fps(1920×1080,1280×960,1280×720,704×576,640×480,352×288)
60Hz:30fps(1920×1080,1280×960,1280×720,704×480,640×480,352×240)
[PTZ channel]
50Hz:25fps(1920×1080,1280×960,1280×720,704×576,640×480,352×288)
60Hz:30fps(1920×1080,1280×960,1280×720,704×480,640×480,352×240)

Third Stream

[Panoramic channel]
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
50 Hz: [PTZ channel]
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

Region of Interest (ROI)

8 fixed regions for main stream

Video Bit Rate

32 Kbps to 16384 Mbps

H.264 Type

Baseline Profile, Main Profile, High Profile

H.265 Type

Main Profile

Video Compression

H.265, H.264, MJPEG

Scalable Video Coding (SVC)

Yes

Audio
Audio Compression

G.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC

Audio Bit Rate

8~320 Kbps(MP3)/16 Kbps(G.726)/16 Kbps(G.722.1)/32~192 Kbps(MP2L2)/16~64 Kbps(AAC-LC)/PCM/64 Kbps(G.711ulaw/G.711alaw)

Audio Sampling Rate

32kHz/16kHz/48kHz/8kHz

Environment Noise Filtering

Yes

Network
API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Network Storage

NAS (NFS, SMB/CIFS)

Protocols TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTCP,RTSP,NTP,UPnP,SMTP,SNMP,IGMP,QoS,UDP,Bonjour,SSL/TLS,WebSocket,WebSockets
Simultaneous Live View

Up to 20 channels

User/Host

Up to 32 users. 3 user levels: administrator, operator, and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log

Client

iVMS-4200

Web Browser

IE8+, Chrome31 to 44, Firefox 30 to 51, Safari8.0+

Image Settings

sharpness, saturation, brightness, contrast

Wide Dynamic Range (WDR)

120 dB

SNR

≥ 52 dB

Defog

Digital defog

Day/Night Switch

Day, night, auto, schedule

Image Enhancement BLC, HLC, 3D DNR
Privacy Mask

[Panoramic channel] 24 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks

Regional Focus [Panoramic channel] No, [PTZ channel] Yes
Regional Exposure Yes
Image Parameters Switch

Yes

Interface
Built-in Microphone 1 built-in microphone
Built-in Speaker 1 built-in speaker
Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,
1 output (line out), line level, output impedance: 600 Ω
RS-485 No
Ethernet Interface RJ45, self-adaptive 10M/100M Ethernet port
On-Board Storage Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 512GB
Reset Yes
Event
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception detection
Linkage [Panoramic channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
General
General Function

mirror, watermark, IP address filter, password protection

Power

DC 12V| 2A,PoE(802.3at) 42.5-57V| 0.6A

Operating Condition

-10 °C to 50 °C (14 °F to 122 °F). Humidity 90% or less (non-condensing)

Material

PC

Dimension

Ø183.2 mm × 128.6 mm (Ø7.2" × 5.2")

Weight

Approx. 0.9 kg (1.98 lb.)

Approval
Protection

IP54 (IEC 60529-2013)

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
