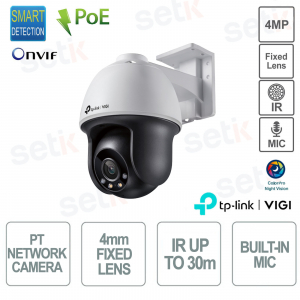

TP-Link VIGI C540 4MP PTZ IP66 with H.265+, AI Human & Vehicle Detection, IR 30m, PoE, Two-Way Audio
VIGI C540(4mm) - is an outdoor PT video surveillance camera with 4MP resolution (2560×1440) and H.265+ compression , designed to ensure clear images and bandwidth optimization. It integrates Pan 0°–350° and Tilt 0°–120° with 300 presets , IR and White LED illuminators up to 30 m and Smart IR technology for effective shooting even at 0 Lux. Human & Vehicle Classification with advanced smart detection (intrusion, line crossing, object removal) improves alarm accuracy. Equipped with two-way audio , MicroSD slot up to 512 GB , RJ45 port with PoE 802.3at and IP66 protection, it is ideal for business contexts and professional outdoor installations Hikvision
VIGI C540(4mm) – FULL COLOR PT CAMERA - 4mm FIXED LENS 4MP RESOLUTION - OUTDOOR

The TP-Link VIGI C540 (4mm) is an outdoor IP PT camera designed for professional video surveillance, with 4MP 2560×1440 resolution and H.265+ compression for detailed images and optimized bandwidth. It offers Pan 0°–350° and Tilt 0°–120° with 300 presets , IR and White LED illuminators up to 30 m and night vision up to 0 Lux. It integrates AI Human & Vehicle Classification and advanced Smart Detection functions for precise control of intrusions and line crossings. It supports two-way audio, MicroSD up to 512 GB , 802.3at PoE power supply and IP66 protection, ideal for outdoor environments and business contexts.
Main features:
- 4MP 2560×1440 resolution with H.265+
- PT Pan 350° / Tilt 120° with 300 presets
- AI Human & Vehicle Classification
- IR and White LED up to 30m
- Two-way audio and MicroSD up to 512 GB
- IP66 and PoE 802.3at
Further details
4mm F1.6 with 1/3” CMOS sensor designed for professional video surveillance, with a field of view up to 93° diagonal and optimal performance even in low light conditions down to 0 Lux with IR/White Light .
4MP 2560×1440 with H.265+/H.264+ compression for high-definition images, greater detail and bandwidth and storage optimization in IP systems.
To automatically track moving subjects, improving the effectiveness of intelligent tracking .
Via audible alarm and flashing white light , which can be activated in the event of an event for immediate perimeter protection.
With MicroSD recording up to 512GB, push notifications and ONVIF/Cloud integration , perfect for professional video surveillance systems.
TECHNICAL DATA SHEET
| VIGI C540(4mm) | |
| ROOM | |
| Image sensor | 1/3” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum brightness | Color: 0.005 Lux; 0 Lux with IR/white light |
| Day/night mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 4 mm |
| Openings | F1.6 |
| FOV | Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93° |
| Lens Mount | M12 |
| PTZ | |
| Pan/tilt angle | Pan: 0° to 350°, Tilt: 0° to 120° |
| Pan/tilt speed | Pan Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/s Tilt Speed: Configurable from 8° to 44°/s, Preset Speed 44°/s |
| Manual Speed Control | Configurable from 8° to 35°/s |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 8 presets for each patrol |
| Power-off Memory | Yes |
| Park Action | Yes; Preset; Patrol Scan |
| 3D Positioning | Yes |
| Angle Adjustment (Manual) | |
| Range | Pan: 0° to 348° Tilt: 0° to 120° |
| ILLUMINATOR | |
| IR LED | Quantity: 2 Range: 30m Wavelength: 850nm |
| White LED | Quantity: 2 Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| ILLUMINATOR | |
| Max. Resolution | 2560 X 1440 |
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080 |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480, 352x288, 320x240 |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| Image | |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Settings | Yes |
| AUDIO | |
| Audio communication | Two-Way Audio |
| Audio input | Yes |
| Audio output | Yes |
| Audio codec | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
| NETWORK | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF | Yes |
| API | ONVIF |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
| Cloud | Yes |
| Safety | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| ALARM AND EVENT MANAGEMENT | |
| Smart Event | Area Intrusion Detection, Line-Crossing Detection, People Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception (Illegal Login) |
| Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
| Linkage Method | N/A |
| Output Notification | Push Message |
| INTERFACES | |
| Network interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 256GB |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
| GENERAL | |
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Contents | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
| Material | Plastic |
| Net Weight | 0.62 kg |
| Gross Weight | 0.98 kg |
| Power Supply | 12V DC ± 5%, Max. 14 W, 5.5mm Coaxial Power Plug PoE: 802.3at, class 4, Max. 16W |
| Protection | IP66 |
| Product Dimensions (L x W x H) | 120 × 172 × 198 mm |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC |
