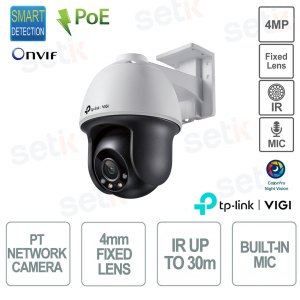

TP-Link VIGI C540 4MP PTZ IP66 con H.265+, AI Human & Vehicle Detection, IR 30m, PoE, Audio Bidirezionale
VIGI C540(4mm) - è una telecamera di videosorveglianza PT da esterno con risoluzione 4MP (2560×1440) e compressione H.265+, progettata per garantire immagini nitide e ottimizzazione della banda. Integra Pan 0°–350° e Tilt 0°–120° con 300 preset, illuminatori IR e White LED fino a 30 m e tecnologia Smart IR per riprese efficaci anche a 0 Lux. La Human & Vehicle Classification con smart detection avanzata (intrusione, line crossing, object removal) migliora la precisione degli allarmi. Dotata di audio bidirezionale, slot MicroSD fino a 512 GB, porta RJ45 con PoE 802.3at e protezione IP66, è ideale per contesti business e installazioni outdoor professionali Hikvision
VIGI C540(4mm) – TELECAMERA PT FULL COLOR - OTTICA FISSA 4mm RISOLUZIONE 4MP - OUTDOOR

La TP-Link VIGI C540 (4mm) è una telecamera IP PT da esterno progettata per la videosorveglianza professionale, con risoluzione 4MP 2560×1440 e compressione H.265+ per immagini dettagliate e banda ottimizzata. Offre Pan 0°–350° e Tilt 0°–120° con 300 preset, illuminatori IR e White LED fino a 30 m e visione notturna fino a 0 Lux. Integra AI Human & Vehicle Classification e funzioni Smart Detection avanzate per un controllo preciso di intrusioni e attraversamenti linea. Supporta audio bidirezionale, MicroSD fino a 512 GB, alimentazione PoE 802.3at e protezione IP66, ideale per ambienti esterni e contesti business.
Caratteristiche principali:
- Risoluzione 4MP 2560×1440 con H.265+
- PT Pan 350° / Tilt 120° con 300 preset
- AI Human & Vehicle Classification
- IR e White LED fino a 30 m
- Audio bidirezionale e MicroSD fino a 512 GB
- IP66 e PoE 802.3at
Ulteriori dettagli
4 mm F1.6 con sensore CMOS 1/3” progettata per videosorveglianza professionale, con campo visivo fino a 93° diagonale e prestazioni ottimali anche in condizioni di bassa luminosità fino a 0 Lux con IR/White Light.
4MP 2560×1440 con compressione H.265+/H.264+ per immagini ad alta definizione, maggiore dettaglio e ottimizzazione di banda e storage in impianti IP.
Per seguire automaticamente i soggetti in movimento, migliorando l’efficacia del monitoraggio intelligente.
Tramite allarme sonoro e luce bianca lampeggiante, attivabile in caso di evento per una protezione perimetrale immediata.
Con registrazione su MicroSD fino a 512GB, notifiche push e integrazione ONVIF/Cloud, perfetta per sistemi di videosorveglianza professionali.
SCHEDA TECNICA
| VIGI C540(4mm) | |
| CAMERA | |
| Sensore di immagine | 1/3” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Luminosità minima | Color: 0.005 Lux; 0 Lux with IR/white light |
| Meccanismo giorno/notte | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 4 mm |
| Aperture | F1.6 |
| FOV | Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93° |
| Lens Mount | M12 |
| PTZ | |
| Angolo pan/tilt | Pan: 0° to 350°, Tilt: 0° to 120° |
| Velocità pan/tilt | Pan Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/s Tilt Speed: Configurable from 8° to 44°/s, Preset Speed 44°/s |
| Manual Control Speed | Configurable from 8° to 35°/s |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 8 presets for each patrol |
| Power-off Memory | Yes |
| Park Action | Yes; Preset; Patrol Scan |
| 3D Positioning | Yes |
| Angle Adjustment (Manual) | |
| Range | Pan: 0° to 348° Tilt: 0° to 120° |
| ILLUMINATOR | |
| IR LED | Quantity: 2 Range: 30m Wavelength: 850nm |
| White LED | Quantity: 2 Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| ILLUMINATOR | |
| Max. Resolution | 2560 X 1440 |
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080 |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480, 352x288, 320x240 |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| Image | |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| AUDIO | |
| Comunicazione audio | Two-Way Audio |
| Ingresso audio | Yes |
| Uscita audio | Yes |
| Codec audio | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| NETWORK | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF | Yes |
| API | ONVIF |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
| Cloud | Yes |
| Sicurezza | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| ALLARME E GESTIONE EVENTO | |
| Smart Event | Area Intrusion Detection, Line-Crossing Detection, People Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception ( Illegal Login) |
| Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
| Linkage Method | N/A |
| Output Notification | Message Push |
| INTERFACCE | |
| Interfaccia di rete | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Allarme | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
| GENERALE | |
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Contenuto della confezione | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
| Material | Plastic |
| Net Weight | 0.62 Kg |
| Gross Weight | 0.98 Kg |
| Power Supply | 12V DC ± 5%, Max. 14 W, 5.5mm Coaxial Power Plug PoE: 802.3at, class 4, Max. 16 W |
| Protection | IP66 |
| Product Dimensions (L x W x H) | 120 × 172 × 198 mm |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC |
