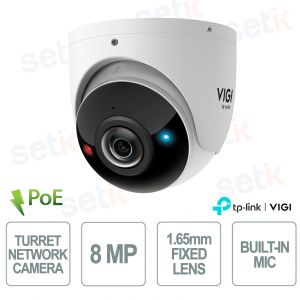

VIGI InSight S485PI 8MP 4K IP Camera with 1.65mm 180° Lens, 20m IR, People/Vehicle AI, 120dB WDR, IP67 IK10 PoE
InSight S485PI - is a professional video surveillance camera with 8MP 4K resolution (3840×2160) and H.265+ compression, designed to ensure detailed images and efficient bandwidth management. Thanks to the 1.65 mm F2.0 fixed lens with 180° panoramic field of view , it offers ultra-wide coverage ideal for monitoring large areas. It integrates IR night vision up to 20 m , WDR 120 dB and image enhancement technologies for high performance in any light conditions. AI functions with people and vehicle classification and intelligent event detection improve alarm accuracy. The IP67 and IK10 vandal-proof structure with PoE and MicroSD support up to 512 GB makes it perfect for professional indoor and outdoor installations. Vigi
InSight S485PI – TURRET CAMERA – 1.65mm FIXED LENS 8MP RESOLUTION – OUTDOOR

The VIGI InSight S485PI video surveillance camera is a professional solution with 8MP 4K resolution (3840×2160) designed to ensure high-definition images and advanced monitoring. Equipped with a 1.65 mm fixed lens with F2.0 aperture and 180° panoramic field of view , it offers wide room coverage while reducing blind spots. It integrates IR night vision up to 20 m , 120 dB WDR and H.265+ compression to optimize video quality and bandwidth. AI functions with person and vehicle classification and intelligent event detection improve security and recording analysis. The IP67 and IK10 vandal-proof structure, with PoE and MicroSD support up to 512 GB , makes it ideal for professional indoor and outdoor installations.
Main features:
- 8MP 4K resolution (3840×2160)
- 1.65mm F2.0 fixed lens with 180° field of view
- IR night vision up to 20m
- H.265+ video compression
- AI with people and vehicle classification
- WDR 120 dB for balanced images
- IP67 and IK10 vandal-proof protection
- PoE power supply and MicroSD slot up to 512 GB
Further details
The camera integrates a 1.65 mm F2.0 wide-angle fixed lens with a 180° panoramic field of view , designed to offer extremely wide coverage of rooms and reduce blind spots, making it ideal for monitoring large areas with a single professional IP camera .
Equipped with a 1/2.7” CMOS sensor and 8MP 4K (3840×2160) resolution , it guarantees high definition images and precise details for professional video surveillance applications, with support for H.265+ compression to optimise bandwidth and storage space.
The camera features two-way audio with audio input and output , built-in microphone and speaker, and alarm I/O interfaces , allowing integration with security and real-time communication systems.
TECHNICAL DATA SHEET
| InSight S485PI | |
| ROOM | |
| Image sensor | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum brightness | Color: 0.005 Lux; 0 Lux with IR/white light |
| Day/night mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 1.65 mm |
| Openings | F2.0 |
| FOV | Horizontal FOV: 180°, Vertical FOV: 86°, Diagonal FOV: 180° |
| Lens Mount | M12 |
| Angle Adjustment (Manual) | |
| Range | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| ILLUMINATOR | |
| IR LED | Quantity: 4 Range: 65.62 ft (20 m) Wavelength: 850nm |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| ILLUMINATOR | |
| Max. Resolution | 3840x2160 |
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 3840x2160,2560x1440,2304x1296,2048x1280,1920x1080,1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 848x480,704x576, 640x480, 640x360,352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 8 Mbps Sub-Stream: 64 Kbps to 102 Kbps |
| Image | |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Settings | Yes |
| AUDIO | |
| Audio communication | Two-Way Audio |
| Audio input | Built-in Microphone Audio In Interface |
| Audio output | Built-in Speaker Audio Out Interface |
| Audio codec | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
| NETWORK | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S/T/G) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
| Cloud | Yes |
| Safety | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| ALARM AND EVENT MANAGEMENT | |
| Smart Event | Intrusion Detection Area Line-Crossing Detection Region Entering Detection Region Exiting Detection Object Abandoned Detection Object Removal Detection Loitering Detection People Detection Vehicle Detection Abnormal Sound Detection Scene Change Detection |
| Basic Event | Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) Video Tampering Detection Exception (Illegal Login) Alarm Input Device |
| Alarm Linkage | Memory Card Video Recording Upload to FTP Server Alarm Output Device Push Notifications Send to Alarm Server Active Defence - Sound Alarm Active Defence-Light Alarm Email Alarm |
| Deep Learning Function | |
| People & Vehicle Analytics | Search and filter to people or vehicles of interest based on many different attributes, making post-event search faster and easier.3 |
| INTERFACES | |
| Network interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Alarm | 1 Alarm In, 1 Alarm Out Red-Blue Warning Lights |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 256GB |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | 1 Audio In, 1 Audio Out |
| GENERAL | |
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Contents | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
| Material | Metal |
| Net Weight | 0.76 kg |
| Power Supply | 12V DC ± 5%, Max. 18 W, 5.5 mm Coaxial Power Plug PoE: 802.3at, class 4, Max. 21W |
| Protection | IP67 Waterproof, IK10 Vandal Proof |
| Product Dimensions (L x W x H) | 4.4 × 4.4 × 4.3 in (112.3 × 112.3 × 110.2 mm) |
| Certifications | CE, NTRA, KC, FCC, VCCI, BSMI, ONVIF, IP67, IK10 |
