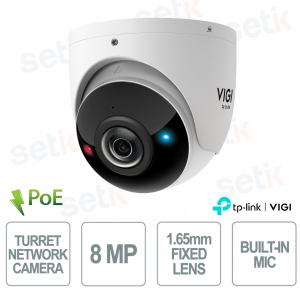

Telecamera IP 4K 8MP VIGI InSight S485PI con ottica 1.65mm 180°, IR 20m, AI persone/veicoli, WDR 120dB, IP67 IK10 PoE
InSight S485PI - è una telecamera di videosorveglianza professionale con risoluzione 8MP 4K (3840×2160) e compressione H.265+, progettata per garantire immagini dettagliate e gestione efficiente della banda. Grazie all’ottica fissa 1.65 mm F2.0 con campo visivo panoramico 180°, offre una copertura ultra-ampia ideale per il monitoraggio di grandi aree. Integra visione notturna IR fino a 20 m, WDR 120 dB e tecnologie di miglioramento immagine per prestazioni elevate in qualsiasi condizione di luce. Le funzioni AI con classificazione persone e veicoli e rilevamento intelligente degli eventi migliorano l’accuratezza degli allarmi. La struttura IP67 e IK10 antivandalo con supporto PoE e MicroSD fino a 512 GB la rende perfetta per installazioni professionali interne ed esterne. Vigi
InSight S485PI – TELECAMERA TURRET - OTTICA FISSA 1.65mm RISOLUZIONE 8MP - OUTDOOR

La telecamera di videosorveglianza VIGI InSight S485PI è una soluzione professionale con risoluzione 8MP 4K (3840×2160) progettata per garantire immagini ad alta definizione e monitoraggio avanzato. Dotata di ottica fissa 1.65 mm con apertura F2.0 e campo visivo panoramico 180°, offre un’ampia copertura degli ambienti riducendo i punti ciechi. Integra visione notturna IR fino a 20 m, WDR 120 dB e compressione H.265+ per ottimizzare qualità video e banda. Le funzioni di AI con classificazione persone e veicoli e rilevamento intelligente degli eventi migliorano la sicurezza e l’analisi delle registrazioni. La struttura IP67 e IK10 antivandalo, con PoE e supporto MicroSD fino a 512 GB, la rende ideale per installazioni professionali indoor e outdoor.
Caratteristiche principali:
- Risoluzione 8MP 4K (3840×2160)
- Ottica fissa 1.65 mm F2.0 con campo visivo 180°
- Visione notturna IR fino a 20 m
- Compressione video H.265+
- AI con classificazione persone e veicoli
- WDR 120 dB per immagini bilanciate
- Protezione IP67 e IK10 antivandalo
- Alimentazione PoE e slot MicroSD fino a 512 GB
Ulteriori dettagli
La telecamera integra ottica fissa grandangolare 1.65 mm F2.0 con campo visivo panoramico 180°, progettata per offrire una copertura estremamente ampia degli ambienti e ridurre i punti ciechi, rendendola ideale per monitorare grandi aree con un’unica telecamera IP professionale.
Dotata di sensore CMOS 1/2.7” e risoluzione 8MP 4K (3840×2160), garantisce immagini ad alta definizione e dettagli precisi per applicazioni di videosorveglianza professionale, con supporto alla compressione H.265+ per ottimizzare banda e spazio di archiviazione.
La telecamera dispone di audio bidirezionale con ingresso e uscita audio, microfono e speaker integrati e interfacce di allarme I/O, consentendo integrazione con sistemi di sicurezza e comunicazione in tempo reale.
SCHEDA TECNICA
| InSight S485PI | |
| CAMERA | |
| Sensore di immagine | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Luminosità minima | Color: 0.005 Lux; 0 Lux with IR/white light |
| Meccanismo giorno/notte | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 1.65 mm |
| Aperture | F2.0 |
| FOV | Horizontal FOV: 180°, Vertical FOV: 86°, Diagonal FOV: 180° |
| Lens Mount | M12 |
| Angle Adjustment (Manual) | |
| Range | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| ILLUMINATOR | |
| IR LED | Quantity: 4 Range: 65.62 ft (20 m) Wavelength: 850nm |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| ILLUMINATOR | |
| Max. Resolution | 3840x2160 |
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 3840x2160,2560x1440,2304x1296,2048x1280,1920x1080,1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 848x480,704x576, 640x480, 640x360,352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 8 Mbps Sub-Stream: 64 Kbps to 102 Kbps |
| Image | |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| AUDIO | |
| Comunicazione audio | Two-Way Audio |
| Ingresso audio | Built-in Microphone Audio In Interface |
| Uscita audio | Built-in Speaker Audio Out Interface |
| Codec audio | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| NETWORK | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S/T/G) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
| Cloud | Yes |
| Sicurezza | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| ALLARME E GESTIONE EVENTO | |
| Smart Event | Area Intrusion Detection Line-Crossing Detection Region Entering Detection Region Exiting Detection Object Abandoned Detection Object Removal Detection Loitering Detection People Detection Vehicle Detection Abnormal Sound Detection Scene Change Detection |
| Basic Event | Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) Video Tampering Detection Exception ( Illegal Login) Alarm Input Device |
| Alarm Linkage | Memory Card Video Recording Upload to FTP Server Alarm Output Device Push Notifications Send to Alarm Server Active Defence-Sound Alarm Active Defence-Light Alarm Email Alarm |
| Deep Learning Function | |
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.3 |
| INTERFACCE | |
| Interfaccia di rete | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Allarme | 1 Alarm In, 1 Alarm Out Red-Blue Warning Lights |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | 1 Audio In, 1 Audio Out |
| GENERALE | |
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Contenuto della confezione | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
| Material | Metal |
| Net Weight | 0.76 Kg |
| Power Supply | 12V DC ± 5%, Max. 18 W, 5.5 mm Coaxial Power Plug PoE: 802.3at, class 4, Max. 21 W |
| Protection | IP67 Waterproof, IK10 Vandal Proof |
| Product Dimensions (L x W x H) | 4.4 × 4.4 × 4.3 in (112.3 × 112.3 × 110.2 mm) |
| Certifications | CE, NTRA, KC, FCC, VCCI, BSMI, ONVIF, IP67, IK10 |
