The IPC-HDW2649T-S-LED-PRO with 2.8mm lens is an advanced solution for IP video surveillance thanks to the 6MP high definition resolution and 1/1.8" CMOS sensor with Starlight technology , ideal even in low light conditions. It integrates WizColor and AI-ISP technology for clear color images even at night, with warm illuminator up to 30 meters. Equipped with WizSense artificial intelligence with SMD Plus and perimeter protection , it allows accurate recognition of people and vehicles, reducing false alarms. It supports H.265+ compression , a MicroSD slot up to 256GB and a built-in microphone for audio. The robust structure with IP67 protection and PoE power supply guarantees reliability even in outdoor environments. Dahua

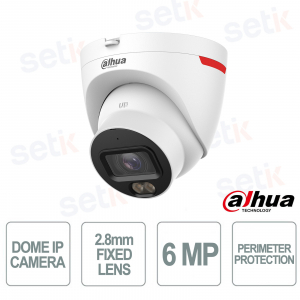

IPC-HDW2649T-S-LED-PRO | 6MP IP CAMERA WITH 2.8mm FIXED LENS - PERIMETER PROTECTION - WIZCOLOR

The Dahua IPC-HDW2649T-S-LED-PRO IP camera with 2.8mm lens represents an advanced solution for professional video surveillance, thanks to the 6MP high definition resolution and the 1/1.8" CMOS sensor with Starlight technology , which guarantees clear images even in low light conditions. The combination of WizColor and AI-ISP allows detailed color night vision up to 30 meters, while WizSense artificial intelligence with SMD Plus and perimeter protection allows precise detection of people and vehicles, reducing false alarms. Ideal for outdoor contexts, it integrates H.265+ compression , built-in microphone and MicroSD support up to 256GB , offering a complete, reliable and high-performance system.
Main specifications:
- Resolution up to 6MP (3288×1850)
- WizColor technology for color night vision
- AI WizSense with SMD Plus and intelligent detection
- 2.8mm wide-angle fixed lens (up to 107°)
- Warm light illuminator up to 30 m
- Smart H.265+ / H.264+ compression
- MicroSD slot up to 256GB and integrated microphone
- IP67 protection for outdoor use
- PoE and 12V DC power supply
Further details
✅ 2.8mm Optics :
Fixed lens with field of view up to 107° , ideal for wide coverage of indoor and outdoor environments with high scene depth.
✅ 6MP Resolution:
Ultra HD 3288×1850 video quality with high level of detail and fluidity up to 20fps, perfect for professional security applications
✅ Intelligent Perimeter Protection :
Advanced AI technology with intrusion detection and tripwire , capable of distinguishing people and vehicles, drastically reducing false alarms.
✅ Microphone:
Technical data sheet
| MODEL | IPC-HDW2649T-S-LED-PRO |
| Room | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 3288 (H) × 1850 (V) |
| ROM | 128 MB |
| RAM | 256 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.0002 lux@F1.0 |
| S/N Ratio | > 56 dB |
| Illumination Distance | Up to 30 m (98.43 ft) (Warm light) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (Warm light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M16 |
| Focal Length | 2.8 mm |
| Max. Openings | F1.0 |
| Field of View | H: 92°; V: 51°; D: 107° |
| Iris Type | Fixed |
| Close Focus Distance | 2.8 m (9.19 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| SMD | SMD Plus |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Video Frame Rate | Main stream: 3288 × 1850@(1–20 fps)/2688 × 1520@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Streaming Capability | 2 stream |
| Resolution | 6M (3288 × 1850/3200 × 1800); 5M (2880 × 1620); 4M (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR; VBR |
| Video Bit Rate | H.264: 32 kbps–8192 kbps; H.265: 12 kbps–8192 kbps |
| Day/Night | Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Manual/Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Lighting | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in Mic |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI |
| User/Host | 20 (Total bandwidth: 48 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256GB); NAS |
| Browser | IE Chrome Firefox |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | Android; iOS |
| Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
| Certification | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Power | |
| Power Supply | 12 VDC (±30%); PoE (802.3af) |
| Power Consumption | Basic: 2.4W (12VDC); 3W (PoE) Max. (H.265+ intelligence on + WDR + illuminator intensity): 5.6 W (12 VDC); 6.4W (PoE) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Strorage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Anti-corrosion Level | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
| Structure | |
| Casing Material | Inner core: Metal; Cover: Plastic |
| Product Dimensions | 109.5 mm × Φ109.9 mm (4.31" × Φ4.33") |
| Net Weight | 0.42 kg (0.93 lb) |
| Gross Weight | 0.59 kg (1.30 lb) |
