IPC-HDW2649T-S-LED-PRO con ottica 2.8mm è una soluzione avanzata per videosorveglianza IP grazie alla risoluzione 6MP ad alta definizione e sensore CMOS 1/1.8" con tecnologia Starlight, ideale anche in condizioni di scarsa illuminazione. Integra tecnologia WizColor e AI-ISP per immagini a colori nitide anche di notte, con illuminatore caldo fino a 30 metri. Dotata di intelligenza artificiale WizSense con SMD Plus e protezione perimetrale, consente il riconoscimento accurato di persone e veicoli riducendo i falsi allarmi. Supporta compressione H.265+, slot MicroSD fino a 256GB e microfono integrato per audio. La struttura robusta con protezione IP67 e alimentazione PoE garantisce affidabilità anche in ambienti esterni. Dahua

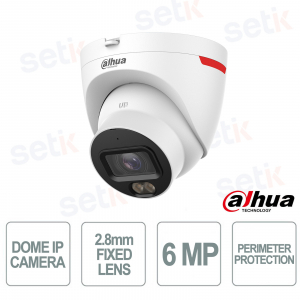

IPC-HDW2649T-S-LED-PRO| TELECAMERA IP 6MP OTTICA FISSA 2.8mm - PERIMETER PROTECTION - WIZCOLOR

La telecamera IP Dahua IPC-HDW2649T-S-LED-PRO con ottica 2.8mm rappresenta una soluzione avanzata per la videosorveglianza professionale, grazie alla risoluzione 6MP ad alta definizione e al sensore CMOS 1/1.8" con tecnologia Starlight, che garantisce immagini nitide anche in condizioni di scarsa illuminazione. La combinazione di WizColor e AI-ISP consente una visione notturna a colori dettagliata fino a 30 metri, mentre l’intelligenza artificiale WizSense con SMD Plus e protezione perimetrale permette il rilevamento preciso di persone e veicoli riducendo i falsi allarmi. Ideale per contesti outdoor, integra compressione H.265+, microfono integrato e supporto MicroSD fino a 256GB, offrendo un sistema completo, affidabile e altamente performante.
Specifiche principali:
- Risoluzione fino a 6MP (3288×1850)
- Tecnologia WizColor per visione notturna a colori
- AI WizSense con SMD Plus e rilevamento intelligente
- Ottica fissa 2.8mm grandangolare (fino a 107°)
- Illuminatore luce calda fino a 30 m
- Compressione Smart H.265+ / H.264+
- Slot MicroSD fino a 256GB e microfono integrato
- Protezione IP67 per uso esterno
- Alimentazione PoE e 12V DC
Ulteriori dettagli
✅ Ottica 2.8mm:
Lente fissa con campo visivo fino a 107°, ideale per copertura ampia di ambienti interni ed esterni con elevata profondità di scena.
✅ Risoluzione 6MP:
Qualità video ultra HD 3288×1850 con elevato livello di dettaglio e fluidità fino a 20fps, perfetta per applicazioni professionali di sicurezza
✅ Perimeter Protection intelligente:
Tecnologia AI avanzata con rilevamento intrusioni e tripwire, capace di distinguere persone e veicoli riducendo drasticamente i falsi allarmi.
✅ Microfono:
Scheda tecnica
| MODEL | IPC-HDW2649T-S-LED-PRO |
| Camera | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 3288 (H) × 1850 (V) |
| ROM | 128 MB |
| RAM | 256 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.0002 lux@F1.0 |
| S/N Ratio | > 56 dB |
| Illumination Distance | Up to 30 m (98.43 ft) (Warm light) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (Warm light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M16 |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.0 |
| Field of View | H: 92°; V: 51°; D: 107° |
| Iris Type | Fixed |
| Close Focus Distance | 2.8 m (9.19 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| SMD | SMD Plus |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Video Frame Rate | Main stream: 3288 × 1850@(1–20 fps)/2688 × 1520@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Streaming Capability | 2 stream |
| Resolution | 6M (3288 × 1850/3200 × 1800); 5M (2880 × 1620); 4M (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR; VBR |
| Video Bit Rate | H.264: 32 kbps–8192 kbps; H.265: 12 kbps–8192 kbps |
| Day/Night | Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Manual/Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest(RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in Mic |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI |
| User/Host | 20 (Total bandwidth: 48 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
| Browser | IE Chrome Firefox |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | Android;iOS |
| Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
| Certification | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Power | |
| Power Supply | 12 VDC (±30%); PoE (802.3af) |
| Power Consumption | Basic: 2.4 W (12 VDC); 3 W (PoE) Max. (H.265+ intelligence on + WDR + illuminator intensity): 5.6 W (12 VDC); 6.4 W (PoE) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Strorage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Anti-corrosion Level | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
| Structure | |
| Casing Material | Inner core: Metal; Cover: Plastic |
| Product Dimensions | 109.5 mm × Φ109.9 mm (4.31" × Φ4.33") |
| Net Weight | 0.42 kg (0.93 lb) |
| Gross Weight | 0.59 kg (1.30 lb) |
