DS-2AE4225TG - The PTZ camera integrates a 4.8–120 mm varifocal lens with 25x optical zoom , ideal for professional video surveillance in large areas, offering clear images in Full HD 1920×1080 thanks to the 1/2.8" progressive scan CMOS sensor. The 120 dB WDR technology guarantees visibility even in backlighting, while the 16x digital zoom allows for further details at long distances. Equipped with full PTZ movement with continuous 360° rotation and intelligent 3D positioning, it ensures precise control of the scene. The bright F1.6–F3.5 lens improves performance in low light conditions, supported by advanced functions such as 3D DNR and BLC/HLC . Compatible with multiple TVI/AHD/CVI/CVBS video outputs, it represents a versatile and high-performance solution for advanced security systems. Hikvision

Technical Data Sheet

referencia : DS-2AE4225TG

brand : Hikvision

EAN: 6936422190507

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

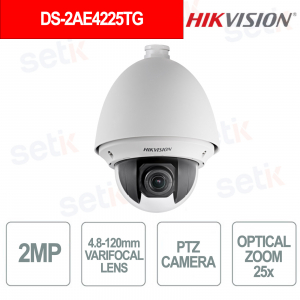

DS-2AE4225TG – PTZ CAMERA - 4.8-120mm 2MP VARIFOCAL LENS - 25x OPTICAL ZOOM - 16x DIGITAL ZOOM

Hikvision

The Hikvision DS-2AE4225TG PTZ camera is a professional solution for advanced video surveillance, equipped with a 4.8–120 mm varifocal lens with 25x optical zoom , ideal for monitoring large areas with high precision. The 1/2.8" progressive scan CMOS sensor guarantees smooth and detailed images in Full HD 1920×1080 , while 120 dB WDR technology ensures optimal visibility even in high-contrast lighting conditions. Thanks to continuous 360° PTZ movement and intelligent 3D positioning, it offers complete control of the scene. The bright F1.6–F3.5 lens improves low-light performance, supported by advanced image enhancement functions. Compatible with various video standards, it represents a versatile choice for professional security systems.

Main features:

- Full HD resolution 1920×1080

- 25x optical zoom + 16x digital zoom

- 4.8–120 mm F1.6–F3.5 lens

- WDR 120 dB for backlight

- Continuous 360° PTZ rotation

- 1/2.8" progressive scan CMOS sensor

Further details

✅ Optics :
 Equipped with a 4.8–120 mm varifocal lens with F1.6–F3.5 aperture, designed to ensure maximum brightness and wide visual coverage, with a variable viewing angle ideal for professional video surveillance contexts.
✅ Resolution:
 1/2.8" progressive scan CMOS sensor that delivers sharp images in Full HD 1920×1080 , ensuring high detail and visual quality even in low light conditions.
✅ PTZ :
Advanced Pan Tilt Zoom system with continuous 360° rotation and tilt up to 90° , supported by presets, patrol and pattern scan , for dynamic and precise control of the monitored area.
✅ Optical and digital zoom :
Powerful 25x optical zoom combined with 16x digital zoom , ideal for identifying details at long distances while maintaining high image quality.
✅ Interface :
 Compatibility with TVI/AHD/CVI/CVBS video outputs, RS-485 interface and alarm inputs/outputs, ensuring versatile integration with different video surveillance systems.
✅ Network Camera :
Supports UTC and HIKVISION-C protocols, with advanced image management features such as WDR 120 dB, 3D DNR, BLC and HLC , for high performance in complex environments and integration into professional security networks.

Technical data sheet

DS-2AE4225TG
Room
Image Sensor 1/2.8" Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
Shutter Time PAL: 1/1 s to 1/30,000 s
NTSC: 1/1 s to 1/30,000 s
Day & Night IR cut filter
Zoom 25 × optical, 16 × digital
Lens
Focal Length 4.8 mm to 120 mm, 25 × optical
FOV Horizontal FOV: 57.6° to 2.5° (wide to tele)
Vertical FOV: 34.4° to 1.4° (wide to tele)
Diagonal FOV: 64.5° to 2.9° (wide to tele)
Focus Auto, semi-auto, manual
Openings F1.6 to F3.5
Zoom Speed Approx. 3.6 s (optical, wide to tele)
PTZ
Movement Range (Pan) 360° endless
Movement Range (Tilt) -5° to 90° (auto flip)
Pan Speed Pan manual speed: 0.1° to 100°/s
Pan preset speed: 100°/s
Tilt Speed Tilt manual speed: 0.1° to 80°/s
Tilt preset speed: 80°/s
Proportional Pan Rotation speed can be adjusted automatically according to zoom multiples
Presets 256
Preset Freezing Yes
Patrol Scan 10 patrols, up to 32 presets for each patrol
Pattern Scan 5 patterns, record time over 10 minutes for each scan
Park Action Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/One-touch Patrol/None
Scheduled Task Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
Power-off Memory Yes
Video
Frame Rate

50 Hz: 25 fps @(1920 × 1080)
60Hz: 30fps @(1920×1080)
Network
Protocols UTC protocol (or HIKVISION-C protocol in previous DVR)
Image Settings GC, white balance
Wide Dynamic Range (WDR) ≥ 120 dB
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 8 programmable privacy masks
Interface
Video Output Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
Alarm 2 alarm inputs, 1 alarm output
RS-485 Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
General
Power

12 VDC, max. 16 W
Dimension

Ø 180 × 239.5 mm (Ø 7.1" × 9.4")
Without Package Weight

Approx. 2 kg (4.41 lb.)
Operating Condition

-30° C to 65° C (-22° F to 149° F). Humidity 90% or less
Language

English

Approval
Protection

IP66 (outdoor dome), TVS 4,000 V lightning protection, surge protection and voltage transient protection
