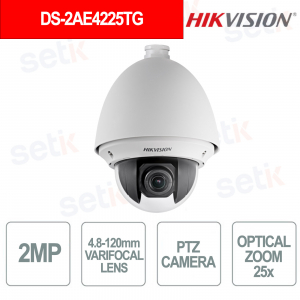

Hikvision 2MP Full HD PTZ Camera with 25x Optical Zoom and 4.8-120mm Lens, 120dB WDR

Hikvision 2MP Full HD PTZ Camera with 25x Optical Zoom and 4.8-120mm Lens, 120dB WDR

 
Optic calculation
-35% Neu

DS-2AE4225TG - The PTZ camera integrates a 4.8–120 mm varifocal lens with 25x optical zoom , ideal for professional video surveillance in large areas, offering clear images in Full HD 1920×1080 thanks to the 1/2.8" progressive scan CMOS sensor. The 120 dB WDR technology guarantees visibility even in backlighting, while the 16x digital zoom allows for further details at long distances. Equipped with full PTZ movement with continuous 360° rotation and intelligent 3D positioning, it ensures precise control of the scene. The bright F1.6–F3.5 lens improves performance in low light conditions, supported by advanced functions such as 3D DNR and BLC/HLC . Compatible with multiple TVI/AHD/CVI/CVBS video outputs, it represents a versatile and high-performance solution for advanced security systems. Hikvision

Technical Data Sheet

Artikel-Nr.: DS-2AE4225TG

Marke: Hikvision

EAN: 6936422190507

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Hikvision [meta_keywords] => Hikvision [meta_description] => Hikvision wurde 2001 gegründet und wurde bald zu einem führenden Unternehmen in der Welt der Videoüberwachung. Entdecken Sie jetzt die Produkte im Katalog! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

DS-2AE4225TG – PTZ CAMERA - 4.8-120mm 2MP VARIFOCAL LENS - 25x OPTICAL ZOOM - 16x DIGITAL ZOOM

Hikvision

The Hikvision DS-2AE4225TG PTZ camera is a professional solution for advanced video surveillance, equipped with a 4.8–120 mm varifocal lens with 25x optical zoom , ideal for monitoring large areas with high precision. The 1/2.8" progressive scan CMOS sensor guarantees smooth and detailed images in Full HD 1920×1080 , while 120 dB WDR technology ensures optimal visibility even in high-contrast lighting conditions. Thanks to continuous 360° PTZ movement and intelligent 3D positioning, it offers complete control of the scene. The bright F1.6–F3.5 lens improves low-light performance, supported by advanced image enhancement functions. Compatible with various video standards, it represents a versatile choice for professional security systems.

Main features:

- Full HD resolution 1920×1080

- 25x optical zoom + 16x digital zoom

- 4.8–120 mm F1.6–F3.5 lens

- WDR 120 dB for backlight

- Continuous 360° PTZ rotation

- 1/2.8" progressive scan CMOS sensor

Further details

✅ Optics :
 Equipped with a 4.8–120 mm varifocal lens with F1.6–F3.5 aperture, designed to ensure maximum brightness and wide visual coverage, with a variable viewing angle ideal for professional video surveillance contexts.
✅ Resolution:
 1/2.8" progressive scan CMOS sensor that delivers sharp images in Full HD 1920×1080 , ensuring high detail and visual quality even in low light conditions.
✅ PTZ :
Advanced Pan Tilt Zoom system with continuous 360° rotation and tilt up to 90° , supported by presets, patrol and pattern scan , for dynamic and precise control of the monitored area.
✅ Optical and digital zoom :
Powerful 25x optical zoom combined with 16x digital zoom , ideal for identifying details at long distances while maintaining high image quality.
✅ Interface :
 Compatibility with TVI/AHD/CVI/CVBS video outputs, RS-485 interface and alarm inputs/outputs, ensuring versatile integration with different video surveillance systems.
✅ Network Camera :
Supports UTC and HIKVISION-C protocols, with advanced image management features such as WDR 120 dB, 3D DNR, BLC and HLC , for high performance in complex environments and integration into professional security networks.

Technical data sheet

DS-2AE4225TG
Room
Image Sensor 1/2.8" Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
Shutter Time PAL: 1/1 s to 1/30,000 s
NTSC: 1/1 s to 1/30,000 s
Day & Night IR cut filter
Zoom 25 × optical, 16 × digital
Lens
Focal Length 4.8 mm to 120 mm, 25 × optical
FOV Horizontal FOV: 57.6° to 2.5° (wide to tele)
Vertical FOV: 34.4° to 1.4° (wide to tele)
Diagonal FOV: 64.5° to 2.9° (wide to tele)
Focus Auto, semi-auto, manual
Openings F1.6 to F3.5
Zoom Speed Approx. 3.6 s (optical, wide to tele)
PTZ
Movement Range (Pan) 360° endless
Movement Range (Tilt) -5° to 90° (auto flip)
Pan Speed Pan manual speed: 0.1° to 100°/s
Pan preset speed: 100°/s
Tilt Speed Tilt manual speed: 0.1° to 80°/s
Tilt preset speed: 80°/s
Proportional Pan Rotation speed can be adjusted automatically according to zoom multiples
Presets 256
Preset Freezing Yes
Patrol Scan 10 patrols, up to 32 presets for each patrol
Pattern Scan 5 patterns, record time over 10 minutes for each scan
Park Action Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/One-touch Patrol/None
Scheduled Task Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
Power-off Memory Yes
Video
Frame Rate

50 Hz: 25 fps @(1920 × 1080)
60Hz: 30fps @(1920×1080)
Network
Protocols UTC protocol (or HIKVISION-C protocol in previous DVR)
Image Settings GC, white balance
Wide Dynamic Range (WDR) ≥ 120 dB
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 8 programmable privacy masks
Interface
Video Output Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
Alarm 2 alarm inputs, 1 alarm output
RS-485 Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
General
Power

12 VDC, max. 16 W
Dimension

Ø 180 × 239.5 mm (Ø 7.1" × 9.4")
Without Package Weight

Approx. 2 kg (4.41 lb.)
Operating Condition

-30° C to 65° C (-22° F to 149° F). Humidity 90% or less
Language

English

Approval
Protection

IP66 (outdoor dome), TVS 4,000 V lightning protection, surge protection and voltage transient protection
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
