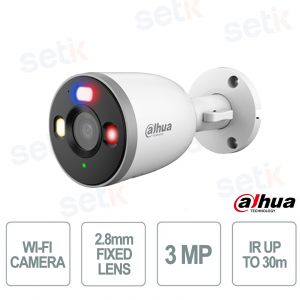

IPC-F3D-PV | 3MP Wi-Fi Bullet Camera with 2.8mm Fixed Lens - Artificial Intelligence - Wi-Fi 6


Dahua

The Dahua IPC-F3D-PV is an outdoor Wi-Fi bullet camera designed to offer advanced security with high-definition images thanks to its 3MP resolution and high-performance CMOS sensor. It integrates intelligent functions such as AI Human Detection and AI Vehicle Detection for precise monitoring and false alarm reduction, while the audible and visual alarm system with red and blue lights increases deterrence. Wi-Fi 6 connectivity and Bluetooth pairing ensure quick, cable-free installation, supported by H.265 compression for efficient storage management. Ideal for outdoor environments thanks to its IP67 certification, it offers two-way communication and complete management via the DMSS app.

Main specifications:

- 3MP resolution for sharp and detailed images

- AI Human Detection and Vehicle Detection to reduce false alarms

- Active alarm with red/blue light and integrated siren

- Wi-Fi 6 and Bluetooth pairing for quick and easy setup

- H.265 compression for bandwidth and storage optimization

- IP67 protection against water and dust

- Two-way audio (built-in microphone and speaker)

Further details

✅ Optics :
2.8mm wide-angle lens designed to offer a wide field of view up to 103° , ideal for covering large areas with a single camera and reducing blind spots.
✅ Resolution:
3MP resolution (2304×1296) that guarantees clear and detailed images , perfect for precise monitoring both day and night.
✅ Vehicle Detection :
Intelligent Vehicle Detection based on advanced AI , capable of identifying vehicles and filtering out irrelevant events, drastically reducing false alarms.
✅ Human Detection :
Human Detection with AI designed to recognize human presence, improving safety and focusing attention only on truly important events.
✅ Red and blue lights:
Integrated red and blue lights with active deterrent function, ideal for discouraging intrusions thanks to immediate and clearly visible visual signals.
✅ Alarm:
Sound and light alarm that combines siren and visual signaling , activating in real time to increase the level of protection of the monitored area.
✅ Wi-Fi 6:
High-performance Wi-Fi 6 ensures stable, fast and interference-resistant connections , simplifying installation without cables.
✅ Two-way audio:
Two-Way Talk audio with built-in microphone and speaker , allowing real-time remote communication via app.

Technical data sheet

IPC-F3D-PV
Room
Image Sensor 1/2.8" CMOS
Max. Resolution 2304 (H) × 1296 (V)
Min. Illumination 0.005 lux@F1.6 (Color, 30 IRE)
0.0005 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
Illumination Distance Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm light)
Illuminator Number 1 (IR LED); 1 (Warm light)
Angle Adjustment Tilt: 0°–90°
Rotation: 0°–360°
Lens Type Fixed-focal
Focal Length 2.8 mm
Max. Openings F1.6
Field of View H: 103°; V: 55°; D: 123°
Intelligence
Human Detection Yes
Vehicle Detection Yes
Audio and Video
Video Compression H.264B; H.264; H.264H; H.265
Video Frame Rate Main stream: 2304 × 1296@(1-25/30 fps)
sub stream: 640 × 360@(1-25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Video Bit Rate H.264: 32 kbps–4096 kbps;
H.265: 32 kbps–4096 kbps
Day/Night Auto(ICR)/Color/B/W
WDR DWDR
Motion Detection OFF/ON (4 areas, rectangular)
Image Rotation 0°/180°
Built-in MIC Yes, built-in Mic
Built-in Speaker Yes, built-in speaker
Audio Compression G.711a; G.711Mu; PCM
Network
Network Port RJ-45 (10/100 Base-T)
Wi-Fi IEEE 802.11b/g/n/ax 2.4000–2.4835 GHz, 2.4 G, EIRP≤20 dBm
Wi-Fi Pairing Bluetooth pairing
Interoperability ONVIF (Profile S & Profile G & Profile T); CGI
Storage Micro SD card (support max. 256GB)
Management Software Smart PSS Lite; DSS; DMSS
Mobile Client Android; iOS
General
Certifications CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
CE-RED: Radio Equipment Directive 2014/53/EU
Power Supply 12 VDC
Power Consumption Basic: 2.2 W (12 VDC);
Max.: 7.3 W (12 VDC) (H.265 + warm light intensity + sound and light alarm)
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Illuminator Number ≤95% (RH), non-condensing
Protection IP67
Camera Button Reset button
Casing Material Metal + plastic
Product Dimensions 158.3 mm × Φ76.8 mm (6.23" × Φ3.02")
Net Weight 0.34 kg (0.75 lb)
