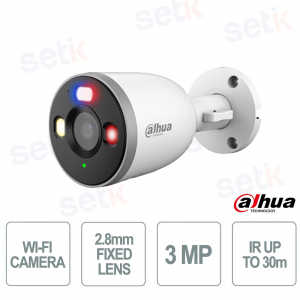

IPC-F3D-PV 3MP WiFi 6 Bullet Camera with AI, 2.8mm Lens, IP67, Active Alarm and Wide Angle View - Dahua
IPC-F3D-PV - The camera with a 2.8mm wide-angle lens offers clear images thanks to the 3MP resolution, ensuring a wide field of view of up to 103°, ideal for outdoor and indoor environments. Equipped with AI Human and Vehicle Detection , it reduces false alarms by focusing on real people and vehicles, while the audible and light alarm system with red and blue lights increases active safety. Wi-Fi 6 connectivity and Bluetooth pairing ensure quick installation without wiring, while H.265 compression optimizes bandwidth and storage. Thanks to IP67 protection, it is resistant to dust and water, and is perfect for any weather conditions, with complete management via the DMSS app. Dahua
IPC-F3D-PV | 3MP Wi-Fi Bullet Camera with 2.8mm Fixed Lens - Artificial Intelligence - Wi-Fi 6

The Dahua IPC-F3D-PV is an outdoor Wi-Fi bullet camera designed to offer advanced security with high-definition images thanks to its 3MP resolution and high-performance CMOS sensor. It integrates intelligent functions such as AI Human Detection and AI Vehicle Detection for precise monitoring and false alarm reduction, while the audible and visual alarm system with red and blue lights increases deterrence. Wi-Fi 6 connectivity and Bluetooth pairing ensure quick, cable-free installation, supported by H.265 compression for efficient storage management. Ideal for outdoor environments thanks to its IP67 certification, it offers two-way communication and complete management via the DMSS app.
Main specifications:
- 3MP resolution for sharp and detailed images
- AI Human Detection and Vehicle Detection to reduce false alarms
- Active alarm with red/blue light and integrated siren
- Wi-Fi 6 and Bluetooth pairing for quick and easy setup
- H.265 compression for bandwidth and storage optimization
- IP67 protection against water and dust
- Two-way audio (built-in microphone and speaker)
Further details
Technical data sheet
| IPC-F3D-PV | |
| Room | |
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 2304 (H) × 1296 (V) |
| Min. Illumination | 0.005 lux@F1.6 (Color, 30 IRE) 0.0005 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Illumination Distance | Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (Warm light) |
| Illuminator Number | 1 (IR LED); 1 (Warm light) |
| Angle Adjustment | Tilt: 0°–90° Rotation: 0°–360° |
| Lens Type | Fixed-focal |
| Focal Length | 2.8 mm |
| Max. Openings | F1.6 |
| Field of View | H: 103°; V: 55°; D: 123° |
| Intelligence | |
| Human Detection | Yes |
| Vehicle Detection | Yes |
| Audio and Video | |
| Video Compression | H.264B; H.264; H.264H; H.265 |
| Video Frame Rate | Main stream: 2304 × 1296@(1-25/30 fps) sub stream: 640 × 360@(1-25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Video Bit Rate | H.264: 32 kbps–4096 kbps; H.265: 32 kbps–4096 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| WDR | DWDR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Image Rotation | 0°/180° |
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a; G.711Mu; PCM |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| Wi-Fi | IEEE 802.11b/g/n/ax 2.4000–2.4835 GHz, 2.4 G, EIRP≤20 dBm |
| Wi-Fi Pairing | Bluetooth pairing |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI |
| Storage | Micro SD card (support max. 256GB) |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | Android; iOS |
| General | |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU |
| Power Supply | 12 VDC |
| Power Consumption | Basic: 2.2 W (12 VDC); Max.: 7.3 W (12 VDC) (H.265 + warm light intensity + sound and light alarm) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Illuminator Number | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Camera Button | Reset button |
| Casing Material | Metal + plastic |
| Product Dimensions | 158.3 mm × Φ76.8 mm (6.23" × Φ3.02") |
| Net Weight | 0.34 kg (0.75 lb) |
