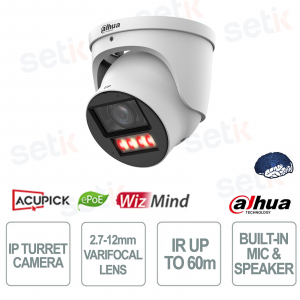

4MP WizColor AI Eyeball Camera 2.7-12mm Motorized with AcuPick and IP67 IK10 Professional Camera - Dahua
EN PROMOCIÓN
-56%
nuevo
IPC-HFW5459T1-ASE-PV-PRO - with 2.7-12mm motorized lens is a 4MP eyeball camera designed to ensure maximum framing flexibility thanks to the vari-focal zoom and an adjustable viewing angle of up to 114°. Equipped with a 1/1.8” 4MP CMOS sensor , it offers clear and detailed images even in low light conditions. WizColor technology with AI-ISP allows color shooting even at night, supported by IR illumination up to 60 m. It integrates advanced Artificial Intelligence functions such as AcuPick, Face Detection and Perimeter Protection , improving precision and security. Smart H.265+/AI H.265 compression optimizes bandwidth and storage, while two-way audio and integrated alarms complete the system. Robust structure with IP67 and IK10 protection , ideal for professional installations in outdoor environments. Dahua
BUSQUE INSTALADOR
IPC-HDW5459H-ZE-PV-PRO | 4MP IP TURRET CAMERA WITH 2.7-12mm VARIFOCAL LENS - ARTIFICIAL INTELLIGENCE - POE
The Dahua IPC-HDW5459H-ZE-PV-PRO with 2.7-12mm motorized lens is a 4MP eyeball camera designed to offer maximum versatility thanks to the vari-focal zoom and wide viewing angle adjustable up to 114°. The 1/1.8” 4MP CMOS sensor guarantees high-definition images even in low light conditions, while WizColor technology with AI-ISP enables color shooting even at night. Advanced Artificial Intelligence functions such as AcuPick, Face Detection and Perimeter Protection improve accuracy and security by reducing false alarms. Smart H.265+/AI H.265 compression optimizes bandwidth and storage, with support for two-way audio and integrated alarms. The rugged construction with IP67 and IK10 protection makes the device ideal for professional installations in outdoor environments.
Main specifications:
- 4MP CMOS 1/1.8” sensor with resolution up to 2688×1520 and high quality images
- 2.7-12mm motorized lens with vari-focal zoom and adjustable viewing angle
- WizColor + AI-ISP technology for color images even in low light conditions
- IR illumination up to 60m and warm light up to 50m for advanced night vision
- AI WizMind with Perimeter Protection, AcuPick and People Counting
- Advanced AI functions: AcuPick, Face Detection, Perimeter Protection and People Counting
- Smart H.265+/AI H.265 compression for bandwidth and storage optimization
- Integrated two-way audio with dual microphones and speakers
- IP67 and IK10 protection resistant to dust, water and vandalism
Further details
✅ Optics :
Equipped with a 2.7-12 mm vari-focal motorized lens , it allows precise zoom and framing adjustments with a field of view from 114° to 48° , adapting perfectly to different surveillance needs.
✅ Resolution:
Thanks to the 4MP CMOS 1/1.8” sensor , it guarantees high definition images up to 2688×1520 at 30 fps , with high quality even in low light conditions.
✅ Xinghan Large-Scale AI Models-Vision :
It integrates advanced large-scale AI models with NPU power and edge computing , optimizing image processing and improving real-time intelligent recognition and analysis.✅ Artificial Intelligence :
It supports advanced functions such as AcuPick, Face Detection, Perimeter Protection and People Counting , offering accurate target detection , intelligent classification and false alarm reduction.✅ WizColor Technology:
The combination of AI-ISP, high-sensitivity sensor and large F1.2 aperture enables color images even at night , improving visibility and detail even in minimal light.✅ Built-in Microphone & Speaker:
Equipped with a dual microphone and integrated speaker , it allows two-way audio , ideal for communication and active safety systems.✅ Alarm :
Includes alarm inputs/outputs and numerous intelligent events such as intrusion, motion and anomalies, with configurable audible and light alerts for complete protection.
Includes alarm inputs/outputs and numerous intelligent events such as intrusion, motion and anomalies, with configurable audible and light alerts for complete protection.
✅ Network Camera:
Compatible with IPv4/IPv6, RTSP, ONVIF protocols, supports up to 4 simultaneous video streams and full integration with professional IP video surveillance systems.✅ Functions:
It integrates advanced technologies such as WDR 140 dB, 3D NR, Smart Illumination, ROI and AI Coding , ensuring optimized images in any operating scenario.
✅ Doors :
It features RJ-45, RS-485, audio and alarm inputs/outputs , as well as MicroSD support up to 1 TB , ensuring maximum flexibility and connectivity.
Technical data sheet
| MODEL | IPC-HDW5459H-ZE-PV-PRO |
| Room | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| ROM | 4 GB |
| RAM | 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.0003 lux@F1.2 (Color, 30 IRE) 0.0001 lux@F1.2 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | Up to 60 m (196.85 ft) (IR) Up to 50 m (164.04 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual;Zoomprio |
| Illuminator Number | 4 (Multi-core (IR + warm) light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Lens Mount | φ14 |
| Focal Length | 2.7 mm-12 mm |
| Max. Openings | F1.2 |
| Field of View | H: 114°–48°; V: 59°–27°; D: 143°–56° |
| Iris Control | Car |
| Iris Control Type | P-Iris |
| Close Focus Distance | 0.2 m (0.67 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms. |
| SMD | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Face Detection | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting |
| People Counting | Tripwire people counting, generating and exporting reports (day/week/month/year); people counting in area and queue management, generating and exporting reports (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. |
| Heat Map | Yes |
| Video Metadata | Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes: seatbelt, smoking, calling. Non-motor vehicle attributes: type, color, number of people, top type and color, hat. Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| AI Coding | AI H.265, AI H.264 *Includes smart codec technology, Smart H.265+ and Smart H.264+ |
| Video Frame Rate | Main stream: 2688 × 1520@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Third stream: 1920 × 1080@(1–25/30 fps) Fourth stream: 1280 × 720@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Streaming Capability | 4 stream |
| Resolution | 4M (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR; CBR |
| Video Bit Rate | H.264: 3 kbps–16384kbps; H.265: 3 kbps–16384kbps; |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 140 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Smart Lighting | Yes |
| Smart Dual Light | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 mosaics or 8 color blocks |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missingobject; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection |
| Network | |
| Network | RJ-45 (10/100 Enhancement Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration |
| Interoperability | ONVIF (Profile S/Profile G/Profile T/Profile M); CGI |
| User/Host | 20 (Total bandwidth: 80 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 1TB); NAS |
| Browser | IE: IE 9 and later Chrome: Chrome 102 and later Firefox: Firefox 88 and later |
| Management Software | DSS; DMSS; DoLynk Care |
| Mobile Client | Android; iOS |
| Cyber Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
| Function | |
| Light Warning | Warm light warning Flash/Solid on duration: 5 s–30 s Flash frequency: high, medium, low |
| Sound Warning | Offers 11 sound alarms and supports importing 10 custom sound alarms. Sound: 0–100 Play times can be set from 1 to 10. |
| Certification | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU+ |
| Port | |
| RS-485 | 1 (baud rate range: 1200 bps–115200 bps) |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection |
| Alarm Output | 1 channel out: dry contact, max load 1,000 mA 30 VDC/500 mA 50 VAC |
| Power Output | 12 VDC power output, max. current 165 mA, peak current 700 mA |
| Power | |
| Power Supply | 12 VDC (±30%); PoE+ (802.3at); ePoE |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Basic: 4.1W (12VDC); 4.8W (PoE) Max.: 21.6W (12VDC); 24.2 W (PoE) (IR on + WDR +intelligence on + siren and light active deterrence) |
| ePoE | Yes |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Strorage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67; IK10 |
| Anti-corrosion Level | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
| Structure | |
| Casing Material | Metal |

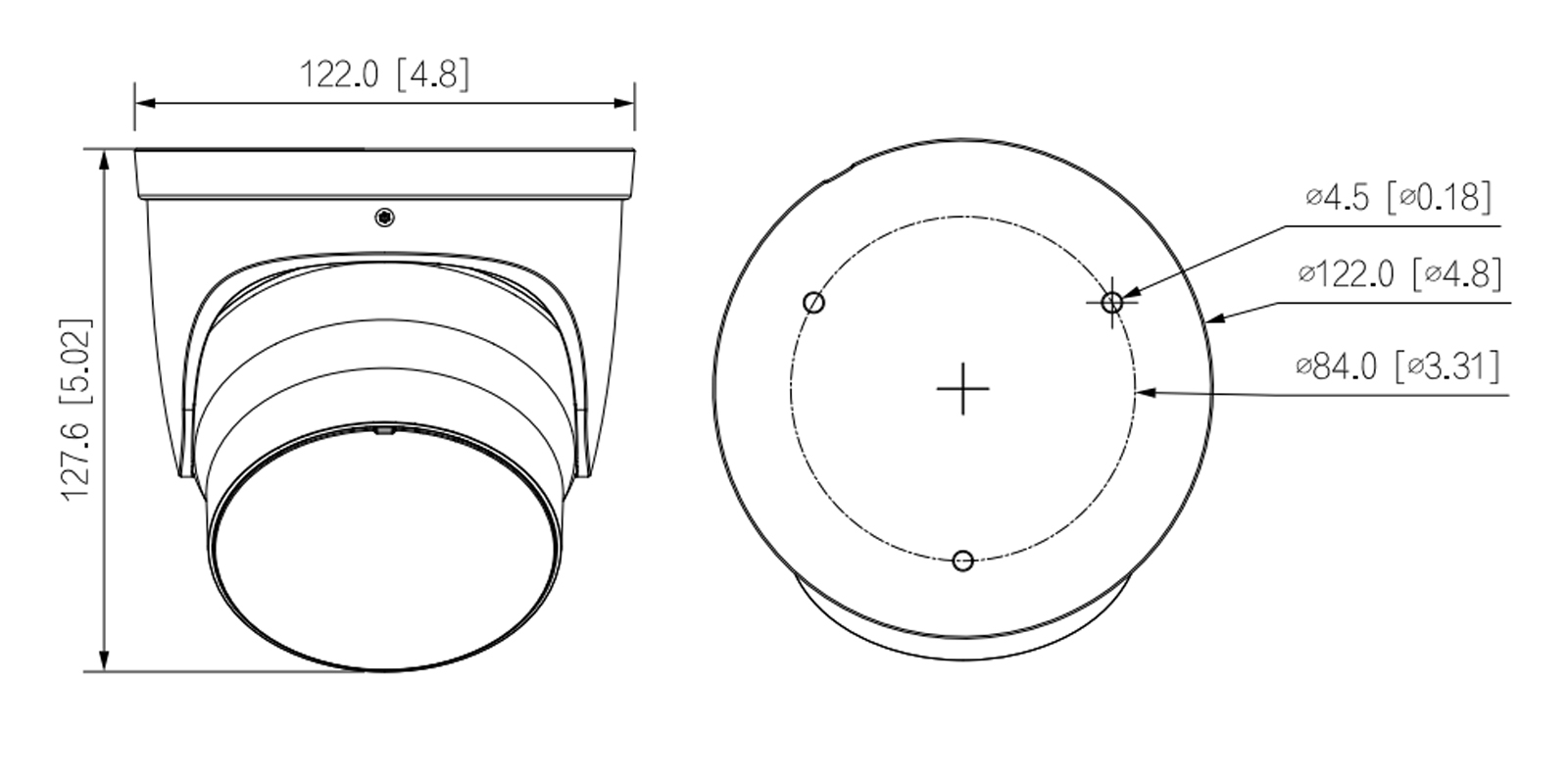

| Product Dimensions | 127.6 mm × Φ122.0 mm (5.02" × Φ4.80") |
| Net Weight | 0.92 kg (2.03 lb) |
| Gross Weight | 1.15 kg (2.54 lb) |
