IPC-HFW5459T1-ASE-PV-PRO - with 2.7-12mm motorized lens is a 4MP eyeball camera designed to ensure maximum framing flexibility thanks to the vari-focal zoom and an adjustable viewing angle of up to 114°. Equipped with a 1/1.8” 4MP CMOS sensor , it offers clear and detailed images even in low light conditions. WizColor technology with AI-ISP allows color shooting even at night, supported by IR illumination up to 60 m. It integrates advanced Artificial Intelligence functions such as AcuPick, Face Detection and Perimeter Protection , improving precision and security. Smart H.265+/AI H.265 compression optimizes bandwidth and storage, while two-way audio and integrated alarms complete the system. Robust structure with IP67 and IK10 protection , ideal for professional installations in outdoor environments. Dahua

Technical data sheet

Reference: IPC-HDW5459H-ZE-PV-PRO

Brand: Dahua

EAN: 6937552406674

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

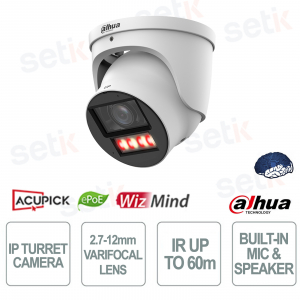

IPC-HDW5459H-ZE-PV-PRO | 4MP IP TURRET CAMERA WITH 2.7-12mm VARIFOCAL LENS - ARTIFICIAL INTELLIGENCE - POE

Dahua

The Dahua IPC-HDW5459H-ZE-PV-PRO with 2.7-12mm motorized lens is a 4MP eyeball camera designed to offer maximum versatility thanks to the vari-focal zoom and wide viewing angle adjustable up to 114°. The 1/1.8” 4MP CMOS sensor guarantees high-definition images even in low light conditions, while WizColor technology with AI-ISP enables color shooting even at night. Advanced Artificial Intelligence functions such as AcuPick, Face Detection and Perimeter Protection improve accuracy and security by reducing false alarms. Smart H.265+/AI H.265 compression optimizes bandwidth and storage, with support for two-way audio and integrated alarms. The rugged construction with IP67 and IK10 protection makes the device ideal for professional installations in outdoor environments.

Main specifications:

- 4MP CMOS 1/1.8” sensor with resolution up to 2688×1520 and high quality images

- 2.7-12mm motorized lens with vari-focal zoom and adjustable viewing angle

- WizColor + AI-ISP technology for color images even in low light conditions

- IR illumination up to 60m and warm light up to 50m for advanced night vision

- AI WizMind with Perimeter Protection, AcuPick and People Counting

- Advanced AI functions: AcuPick, Face Detection, Perimeter Protection and People Counting

- Smart H.265+/AI H.265 compression for bandwidth and storage optimization

- Integrated two-way audio with dual microphones and speakers

- IP67 and IK10 protection resistant to dust, water and vandalism

Further details

Optics :
Equipped with a 2.7-12 mm vari-focal motorized lens , it allows precise zoom and framing adjustments with a field of view from 114° to 48° , adapting perfectly to different surveillance needs.
Resolution:
Thanks to the 4MP CMOS 1/1.8” sensor , it guarantees high definition images up to 2688×1520 at 30 fps , with high quality even in low light conditions.
Xinghan Large-Scale AI Models-Vision :
It integrates advanced large-scale AI models with NPU power and edge computing , optimizing image processing and improving real-time intelligent recognition and analysis.
Artificial Intelligence :
It supports advanced functions such as AcuPick, Face Detection, Perimeter Protection and People Counting , offering accurate target detection , intelligent classification and false alarm reduction.
WizColor Technology:
The combination of AI-ISP, high-sensitivity sensor and large F1.2 aperture enables color images even at night , improving visibility and detail even in minimal light.
Built-in Microphone & Speaker:
Equipped with a dual microphone and integrated speaker , it allows two-way audio , ideal for communication and active safety systems.
Alarm :
Includes alarm inputs/outputs and numerous intelligent events such as intrusion, motion and anomalies, with configurable audible and light alerts for complete protection.
Network Camera:
Compatible with IPv4/IPv6, RTSP, ONVIF protocols, supports up to 4 simultaneous video streams and full integration with professional IP video surveillance systems.

Functions:
It integrates advanced technologies such as WDR 140 dB, 3D NR, Smart Illumination, ROI and AI Coding , ensuring optimized images in any operating scenario.
Doors :
It features RJ-45, RS-485, audio and alarm inputs/outputs , as well as MicroSD support up to 1 TB , ensuring maximum flexibility and connectivity.
IPC-HDW5459H-ZE-PV-PRO dimensions

Technical data sheet

MODEL IPC-HDW5459H-ZE-PV-PRO
Room
Image Sensor 1/1.8" CMOS
Max. Resolution 2688 (H) × 1520 (V)
ROM 4 GB
RAM 2 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.0003 lux@F1.2 (Color, 30 IRE)
0.0001 lux@F1.2 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance Up to 60 m (196.85 ft) (IR)
Up to 50 m (164.04 ft) (Warm light)
Illuminator On/Off Control Auto;Manual;Zoomprio
Illuminator Number 4 (Multi-core (IR + warm) light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Motorized vari-focal
Lens Mount φ14
Focal Length 2.7 mm-12 mm
Max. Openings F1.2
Field of View H: 114°–48°; V: 59°–27°; D: 143°–56°
Iris Control Car
Iris Control Type P-Iris
Close Focus Distance 0.2 m (0.67 ft)
Intelligence
IVS (Perimeter Protection) Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms.
SMD SMD 4.0
AcuPick Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
Face Detection Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting
People Counting Tripwire people counting, generating and exporting reports (day/week/month/year); people counting in area and queue management, generating and exporting reports (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.
Heat Map Yes
Video Metadata Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload.
Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes: seatbelt, smoking, calling.
Non-motor vehicle attributes: type, color, number of people, top type and color, hat.
Human body attributes: gender, top/bottom type and color, bag, hat and umbrella.
Face attributes: gender, age, expressions, glasses, face mask and beard.
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
AI Coding AI H.265, AI H.264
*Includes smart codec technology, Smart H.265+ and Smart H.264+
Video Frame Rate Main stream: 2688 × 1520@(1–25/30 fps)
sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Third stream: 1920 × 1080@(1–25/30 fps)
Fourth stream: 1280 × 720@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Streaming Capability 4 stream
Resolution 4M (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control VBR; CBR
Video Bit Rate H.264: 3 kbps–16384kbps;
H.265: 3 kbps–16384kbps;
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 140 dB
Scene Self-adaptation (SSA) Yes
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Image Stabilization Electronic Image Stabilization (EIS)
Smart Lighting Yes
Smart Dual Light Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower)
Mirror Yes
Privacy Masking 4 mosaics or 8 color blocks
LDC Yes
Audio
Built-in MIC Yes, built-in Mic
Built-in Speaker Yes, built-in speaker
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missingobject; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection
Network
Network RJ-45 (10/100 Enhancement Base-T)
SDK and API Yes
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration
Interoperability ONVIF (Profile S/Profile G/Profile T/Profile M); CGI
User/Host 20 (Total bandwidth: 80 M)
Storage FTP; SFTP; Micro SD card (support max. 1TB); NAS
Browser IE: IE 9 and later
Chrome: Chrome 102 and later
Firefox: Firefox 88 and later
Management Software DSS; DMSS; DoLynk Care
Mobile Client Android; iOS
Cyber Security Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning
Function
Light Warning Warm light warning
Flash/Solid on duration: 5 s–30 s
Flash frequency: high, medium, low
Sound Warning Offers 11 sound alarms and supports importing 10 custom sound alarms.
Sound: 0–100
Play times can be set from 1 to 10.
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU+
Port
RS-485 1 (baud rate range: 1200 bps–115200 bps)
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection
Alarm Output 1 channel out: dry contact, max load 1,000 mA 30 VDC/500 mA 50 VAC
Power Output 12 VDC power output, max. current 165 mA, peak current 700 mA
Power
Power Supply 12 VDC (±30%); PoE+ (802.3at); ePoE
Dual Power Backup When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.
Power Consumption Basic: 4.1W (12VDC); 4.8W (PoE)
Max.: 21.6W (12VDC); 24.2 W (PoE) (IR on + WDR +intelligence on + siren and light active deterrence)
ePoE Yes
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95% (RH), non-condensing
Strorage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity ≤95% (RH), non-condensing
Protection IP67; IK10
Anti-corrosion Level Basic Protection
*The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.
Structure
Casing Material Metal
Product Dimensions 127.6 mm × Φ122.0 mm (5.02" × Φ4.80")
Net Weight 0.92 kg (2.03 lb)
Gross Weight 1.15 kg (2.54 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
