HAC-HFW1801TH-I8-A-S3 - The bullet camera with 3.6 mm fixed lens is the ideal solution for high-definition outdoor video surveillance, thanks to the 8 MP 4K resolution , the Starlight sensor for clear images even in low-light conditions and the Smart IR illuminator up to 80 meters . Equipped with a built-in microphone with coaxial audio , it guarantees complete surveillance, while 4-in-1 compatibility (CVI, TVI, AHD and CVBS) ensures maximum installation versatility. The IP67 certification makes it resistant to water and dust, ideal for professional applications in outdoor environments. Dahua

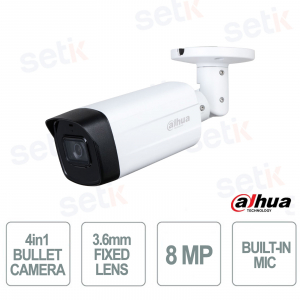

HAC-HFW1801TH-I8-A-S3 | 8MP HDCVI Bullet Camera with 3.6mm Fixed Lens - Starlight - Microphone

The Dahua 8MP 4K bullet camera with 3.6mm fixed lens offers ultra-high definition images and high performance in any lighting conditions thanks to Starlight technology and Smart IR illuminator up to 80 meters . The built-in microphone with coaxial audio also allows for ambient audio acquisition, while 4-in-1 compatibility (CVI, TVI, AHD and CVBS) ensures easy integration with various video surveillance systems. The IP67 certification ensures high resistance to atmospheric agents, making it ideal for professional outdoor installations.
Main specifications:
- Resolution: 8 MP Ultra HD 4K (3840×2160)
- Lens: Fixed 3.6mm with 86.8° viewing angle
- Night Vision: Smart IR up to 80m
- Technology: Starlight for bright images in low light
- Audio: Built-in microphone with coaxial audio
- Compatibility: 4 in 1 CVI/TVI/AHD/CVBS
- Protection: IP67 for outdoor installation
- Power supply: 12 V DC
Further details
Technical data sheet
| HAC-HFW1801TH-I8-A-S3 |
| Technical features |
| Dahua Lite Series 4-in-1 Camera |
| 4K CMOS sensor with progressive scan |
| Maximum resolution 8MP (3840×2160) |
| Minimum illumination 0.01 [email protected] (color, 30 IRE) and 0.001 [email protected] (B/W, 30 IRE) |
| 0 lux with illuminator on |
| Signal-to-noise ratio >65 dB |
| Smart IR with IR illumination range up to 80 m |
| Fixed lens 3.6 mm (M12) with maximum aperture F2.0 |
| Angle of view: H 86.8°, V 44.6°, D 104.5°, D 104.5°, D 104.5°. |
| Minimum focusing distance: 2.1 m |
| Electronic shutter PAL 1/25s-1/100,000s and NTSC 1/30s-1/100,000s |
| Video |
| Video output switchable CVI/TVI/AHD/CVBS via 1 BNC port (DIP Switch) |
| Resolution: 4K (3840×2160) and 960H (960×576 / 960×480) |
| Frames per second (CVI): PAL 4K@15 fps and NTSC 4K@15 fps |
| Frames per second (AHD): PAL 4K@15 ips and NTSC 4K@15 ips |
| Frames per second (TVI): PAL 4K@15 ips and NTSC 4K@15 ips |
| CVBS: PAL 960H and NTSC 960H |
| Features |
| Auto Day/Night Switching (ICR) / Color / B&W |
| BLC, HLC and WDR |
| Auto white balance and auto gain control |
| 3D NR noise reduction |
| Illumination mode Smart IR |
| Mirror |
| Super Adapt with automatic parameter adjustment |
| Audio |
| Built-in microphone |
| Coaxial audio in CVI |
| Audio pickup distance 8 m |
| Smart features |
| Human detection with accurate classification and detection |
| Intelligent search working with Smart NVR for refined search, event extraction and merging to event videos |
| Power supply |
| 12 VDC (±30%) |
| Maximum power consumption 4.9 W (12 VDC, IR activated) |
| Environmental |
| Operating temperature -40°C to +60°C (-40°F to +60°F) |
| Operating humidity less than 95% (non-condensing) |
| Storage temperature -40 °C to +60 °C (-40 °F to +60 °C) |
| Storage Humidity less than 95% (non-condensing) |
| IP67 protection |
| Corrosion level: basic protection |
| Physical characteristics |
| Housing with metal front cover, plastic rear body and metal bracket |
| Wall, ceiling or vertical pole installation |
| Dimensions: 240.7 mm × 90.7 mm × 90.4 mm (L × W × H) |
| Net weight: 0.41 kg |
| Gross weight: 0.64 kg |
| 3AXIS: Pan 0°~360°, Tilt 0°~90°, Rotation 0°~360° |
| Certifications |
| CE-LVD: EN 62368-1 |
| CE-EMC: EN 55032 and EN 55035 |
