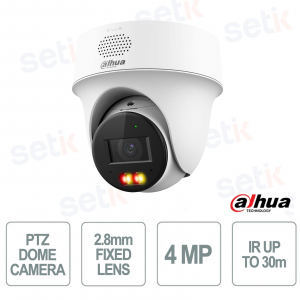

IPC-T1439H-PV - The Dahua 4MP PTZ Dome IP camera with 2.8mm fixed lens offers intelligent video surveillance with high-definition images thanks to 4MP resolution and Smart H.265+ compression that optimizes bandwidth and storage. Smart Dual Light technology with IR illumination and warm light up to 30 meters ensures clear footage even at night, while Artificial Intelligence functions with human, vehicle and perimeter protection detection increase alarm accuracy. Equipped with two-way audio , active deterrence , PoE power supply, PTZ movement and IP66 protection, it represents a complete solution for the security of residential and commercial environments. Dahua
BUSQUE INSTALADOR
IPC-T1439H-PV | 2.8mm FIXED LENS PTZ DOME CAMERA, 4MP RESOLUTION, ARTIFICIAL INTELLIGENCE, MICROPHONE
The Dahua 4MP PTZ Dome IP camera with 2.8mm fixed lens is an advanced solution for intelligent video surveillance, designed to offer high-definition images thanks to 4MP resolution and Smart H.265+ compression that optimizes bandwidth and storage space. Smart Dual Light technology with IR illumination and warm light up to 30 meters ensures clear footage in any lighting conditions, while Artificial Intelligence functions with human, vehicle detection and perimeter protection improve alarm reliability. Complete with two-way audio , active deterrence , PoE power supply, PTZ movement and IP66 protection, it is an ideal choice for the security of homes, businesses and commercial activities.
Main specifications:
- Lens: 2.8mm wide angle
- Resolution: 4MP (2560×1440)
- Lighting: Smart Dual Light up to 30 m
- AI: People, vehicle detection and perimeter protection
- Audio: Microphone and speaker with two-way audio
- Deterrence: Light and sound alarm active
- Power supply: PoE and 12V DC
- Protection: IP66 for outdoor installations
Further details
✅ Optics :
The 2.8mm fixed lens with a viewing angle of up to 94° offers wide coverage of the monitored area, making it ideal for monitoring entrances, courtyards, parking lots and outdoor spaces with always detailed images.
✅ Resolution:
The 4MP CMOS sensor with a maximum resolution of 2560×1440 ensures high-definition images, while Smart H.265+/H.264+ compression reduces bandwidth consumption and storage space while maintaining high video quality.
✅ PTZ Camera:
The PTZ function allows for horizontal rotation up to 345° and vertical movement up to 90° , with 50 programmable presets , allowing you to monitor large areas and quickly recall your favorite monitoring positions.
✅ Smart Dual Light :
Smart Dual Light technology combines infrared and warm light illumination up to 30 meters , automatically adapting the lighting mode to ensure clear, colorful images when needed even during night hours.✅ Artificial Intelligence :
AI features integrate perimeter protection , person and vehicle detection , and active deterrence , reducing false alarms and increasing video surveillance effectiveness with more accurate notifications.✅ Microphone and Speaker:
The built-in microphone and speaker support two-way audio , allowing you to listen and communicate in real time with people in the monitored area. The camera also features a customizable audible alarm for active deterrence.
✅ PoE:
Power over Ethernet (PoE) support allows the camera to be powered and data to be transmitted through a single network cable , simplifying installation and reducing wiring time and costs.
✅ Network:
The 10/100 Mbps RJ45 port with support for HTTP, HTTPS, RTSP, IPv4/IPv6, ONVIF Profile S and T, CGI and SDK protocols ensures high compatibility with professional NVRs, video surveillance software and management systems.
Technical data sheet
| IPC-T1439H-PV |
| Technical features |
| 1/2.8" CMOS sensor |
| Maximum resolution 4MP (2560×1440) |
| Auto day/night mode with ICR, color and B/W |
| Minimum illumination of 0.05 lux at F1.6 in color, 30 IRE |
| Minimum illumination of 0.005 lux at F1.6 in B/W, 30 IRE |
| 0 lux with illuminator on |
| IR illumination up to 30 m |
| Up to 30 m warm light illumination |
| Manual, automatic and off illuminator control |
| 2 IR illuminators and warm light |
| Fixed lens 2.8 mm |
| Maximum aperture F1.6 |
| 94° horizontal, 51° vertical and 110° diagonal angle of view |
| Minimum focusing distance of 1.2 m |
| Video |
| Smart H.265+, H.265, Smart H.264+, H.264B, H.264M, H.264H and MJPEG compression on substream |
| Stream 1: 4M, 1080P, 720P and 640 × 360 at 1~25/30 ips |
| Stream 2: 640 × 360 and QVGA at 1~25/30 fps |
| Resolutions 4M (2560×1440), 1080P (1920×1080), 720P (1280×720), 640 × 360 and QVGA (320×240) |
| CBR and VBR bitrate control |
| H.264 bitrate from 16 kbps to 8192 kbps |
| H.265 Bitrate from 6 kbps to 8192 kbps |
| Functionalities |
| 120 dB BLC, HLC and WDR |
| Auto, indoor, outdoor, tracking, manual, sodium lamp, natural light and street lamp white balance |
| Automatic and manual gain control |
| 2D NR and 3D NR noise reduction |
| Motion detection |
| ROI |
| Electronic Defog |
| 180° image rotation |
| Privacy with 4 areas |
| Intelligent functions |
| IVS perimeter protection with line crossing and intrusion |
| Human detection |
| Vehicle detection |
| Active deterrent with warm light warning |
| Flashing duration configurable from 5 s to 30 s |
| Flash frequency configurable in high, medium and low levels |
| Audible warning with customized voice import |
| Volume configurable from 0% to 100%. |
| Playback configurable from 1 to 10 times |
| Abnormal sound alarm |
| Positioner |
| Horizontal movement from 0° to 345°. |
| Vertical movement from 0° to 90 |
| Horizontal manual speed from 0.1°/s to 37.66°/s |
| Manual vertical speed from 0.1°/s to 32.61°/s |
| Horizontal preset speed from 0.1°/s to 37.19°/s |
| Vertical preset speed from 0.1°/s to 30.82°/s |
| 50 presets |
| Shutdown memory |
| Motion at rest with preset and home position from DMSS |
| PTZ lock |
| Audio |
| Built-in microphone |
| Built-in speaker |
| Two-way audio |
| PCM, G.711A, G.711Mu and G.726 audio compression |
| 1 audio input via built-in microphone |
| 1 audio output via built-in speaker |
| Alarms |
| Alarm link with capture, preset, recording, audio and e-mail sending |
| Alarm events for motion, video tampering, audio detection, network disconnection and IP conflict |
| Network |
| RJ45 10/100 Base-T port |
| HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, DHCP, DNS, DDNS, IPv6, SSL, ARP, RTCP, RTP and IP Filter protocols |
| CGI, SDK and ONVIF Profile S and Profile T interoperability |
| Unicast and multicast streaming methods |
| 20 users with 64M total bandwidth |
| IE 7 and later, Chrome, Firefox and Safari browsers |
| Smart PSS, DMSS, Player, ConfigTool, NVR and Smart Player Software |
| iOS and Android mobile clients |
| FTP storage |
| Power supply |
| 12 V DC power supply 1.0 A ±10%. |
| PoE 802.3af |
| Basic power consumption of 3 W at 12 V DC |
| Maximum power consumption 11 W at 12 V DC with illuminator, speaker and PTZ operation |
| 4 W basic power consumption for PoE |
| 12 W maximum power consumption for PoE with illuminator, speaker and PTZ operation |
| Optional power adapter |
| Environmental |
| Operating temperature -30 °C to +55 °C (-30 °C to +55 °C) |
| Operating humidity up to 95% |
| IP66 protection |
| TVS 2000V lightning protection |
| Surge protection |
| Protection against voltage transients |
| Physical characteristics |
| Ceiling installation |
| Dimensions of 128.4 mm × Φ127.3 mm |
| Net weight 0.41 kg |
| Gross weight 0.50 kg |
| Certifications |
| EN 62368-1 |
| EN 55032 |
| EN 61000-3-3 |
| EN IEC 61000-3-2 |
| EN 50130-4 |
| EN 55035 |
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification
fill out this form
