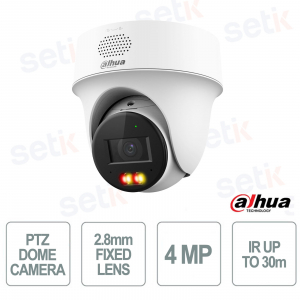

IPC-T1439H-PV - La telecamera IP PTZ Dome Dahua 4MP con ottica fissa da 2.8 mm offre una videosorveglianza intelligente con immagini ad alta definizione grazie alla risoluzione 4MP e alla compressione Smart H.265+ che ottimizza banda e archiviazione. La tecnologia Smart Dual Light con illuminazione IR e luce calda fino a 30 metri assicura riprese nitide anche di notte, mentre le funzioni di Intelligenza Artificiale con rilevamento di persone, veicoli e protezione perimetrale aumentano la precisione degli allarmi. Dotata di audio bidirezionale, deterrenza attiva, alimentazione PoE, movimento PTZ e protezione IP66, rappresenta una soluzione completa per la sicurezza di ambienti residenziali e commerciali. Dahua
IPC-T1439H-PV | TELECAMERA PTZ DOME OTTICA FISSA 2.8mm RISOLUZIONE 4MP - INTELLIGENZA ARTIFICIALE - MICROFONO

La telecamera IP PTZ Dome Dahua 4MP con ottica fissa da 2.8 mm è una soluzione avanzata per la videosorveglianza intelligente, progettata per offrire immagini ad alta definizione grazie alla risoluzione 4MP e alla compressione Smart H.265+ che ottimizza banda e spazio di archiviazione. La tecnologia Smart Dual Light con illuminazione IR e luce calda fino a 30 metri garantisce riprese nitide in ogni condizione di luce, mentre le funzioni di Intelligenza Artificiale con rilevamento di persone, veicoli e protezione perimetrale migliorano l'affidabilità degli allarmi. Completa di audio bidirezionale, deterrenza attiva, alimentazione PoE, movimento PTZ e protezione IP66, rappresenta una scelta ideale per la sicurezza di abitazioni, aziende e attività commerciali.
Specifiche principali:
- Ottica: 2.8 mm grandangolare
- Risoluzione: 4MP (2560×1440)
- Illuminazione: Smart Dual Light fino a 30 m
- AI: Rilevamento persone, veicoli e protezione perimetrale
- Audio: Microfono e speaker con audio bidirezionale
- Deterrenza: Luce e allarme sonoro attivi
- Alimentazione: PoE e 12V DC
- Protezione: IP66 per installazioni esterne
Ulteriori dettagli
Scheda tecnica
| IPC-T1439H-PV |
| Technical features |
| 1/2.8" CMOS sensor |
| Maximum resolution 4MP (2560×1440) |
| Auto day/night mode with ICR, color and B/W |
| Minimum illumination of 0.05 lux at F1.6 in color, 30 IRE |
| Minimum illumination of 0.005 lux at F1.6 in B/W, 30 IRE |
| 0 lux with illuminator on |
| IR illumination up to 30 m |
| Up to 30 m warm light illumination |
| Manual, automatic and off illuminator control |
| 2 IR illuminators and warm light |
| Fixed lens 2.8 mm |
| Maximum aperture F1.6 |
| 94° horizontal, 51° vertical and 110° diagonal angle of view |
| Minimum focusing distance of 1.2 m |
| Video |
| Smart H.265+, H.265, Smart H.264+, H.264B, H.264M, H.264H and MJPEG compression on substream |
| Stream 1: 4M, 1080P, 720P and 640 × 360 at 1~25/30 ips |
| Stream 2: 640 × 360 and QVGA at 1~25/30 fps |
| Resolutions 4M (2560×1440), 1080P (1920×1080), 720P (1280×720), 640 × 360 and QVGA (320×240) |
| CBR and VBR bitrate control |
| H.264 bitrate from 16 kbps to 8192 kbps |
| H.265 Bitrate from 6 kbps to 8192 kbps |
| Functionalities |
| 120 dB BLC, HLC and WDR |
| Auto, indoor, outdoor, tracking, manual, sodium lamp, natural light and street lamp white balance |
| Automatic and manual gain control |
| 2D NR and 3D NR noise reduction |
| Motion detection |
| ROI |
| Electronic Defog |
| 180° image rotation |
| Privacy with 4 areas |
| Intelligent functions |
| IVS perimeter protection with line crossing and intrusion |
| Human detection |
| Vehicle detection |
| Active deterrent with warm light warning |
| Flashing duration configurable from 5 s to 30 s |
| Flash frequency configurable in high, medium and low levels |
| Audible warning with customized voice import |
| Volume configurable from 0 % to 100 %. |
| Playback configurable from 1 to 10 times |
| Abnormal sound alarm |
| Positioner |
| Horizontal movement from 0° to 345°. |
| Vertical movement from 0° to 90 |
| Horizontal manual speed from 0.1°/s to 37.66°/s |
| Manual vertical speed from 0.1°/s to 32.61°/s |
| Horizontal preset speed from 0.1°/s to 37.19°/s |
| Vertical preset speed from 0,1°/s to 30,82°/s |
| 50 presets |
| Shutdown memory |
| Motion at rest with preset and home position from DMSS |
| PTZ lock |
| Audio |
| Built-in microphone |
| Built-in speaker |
| Two-way audio |
| PCM, G.711A, G.711Mu and G.726 audio compression |
| 1 audio input via built-in microphone |
| 1 audio output via built-in speaker |
| Alarms |
| Alarm link with capture, preset, recording, audio and e-mail sending |
| Alarm events for motion, video tampering, audio detection, network disconnection and IP conflict |
| Network |
| RJ45 10/100 Base-T port |
| HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, DHCP, DNS, DDNS, IPv6, SSL, ARP, RTCP, RTP and IP Filter protocols |
| CGI, SDK and ONVIF Profile S and Profile T interoperability |
| Unicast and multicast streaming method |
| 20 users with 64M total bandwidth |
| IE 7 and later, Chrome, Firefox and Safari browsers |
| Smart PSS, DMSS, Player, ConfigTool, NVR and Smart Player Software |
| iOS and Android mobile client |
| FTP storage |
| Power supply |
| 12 V DC power supply 1.0 A ±10 %. |
| PoE 802.3af |
| Basic power consumption of 3 W at 12 V DC |
| Maximum power consumption 11 W at 12 V DC with illuminator, speaker and PTZ operation |
| 4 W basic power consumption per PoE |
| 12 W maximum power consumption per PoE with illuminator, speaker and PTZ operation |
| Optional power adapter |
| Environmental |
| Operating temperature -30 °C to +55 °C (-30 °C to +55 °C) |
| Operating humidity up to 95% |
| IP66 protection |
| TVS 2000 V lightning protection |
| Surge protection |
| Protection against voltage transients |
| Physical characteristics |
| Ceiling installation |
| Dimensions of 128.4 mm × Φ127.3 mm |
| Net weight 0.41 kg |
| Gross weight 0.50 kg |
| Certifications |
| EN 62368-1 |
| EN 55032 |
| EN 61000-3-3 |
| EN IEC 61000-3-2 |
| EN 50130-4 |
| EN 55035 |
