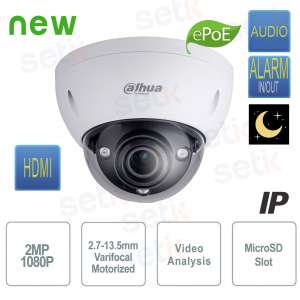

IPC-HDBW5231E-ZE-HDMI | DAHUA 2MP MOTORIZED ONVIF® POE OUTDOOR IP CAMERA WITH HDMI VIDEO OUTPUT!

The Dahua IPC-HDBW5231E-ZE-HDMI is a 2MP IP dome camera with a 2.7–13.5mm F1.6 motorized lens and 5x optical zoom, ideal for environments with variable lighting conditions thanks to Starlight technology and 120dB true WDR. It offers triple streaming in H.265, with HDMI output, two-way microphone/audio and IR up to 50 meters. The IP67 and IK10 protection guarantees resistance to atmospheric agents and vandalism, while ePoE technology allows transmission and power supply over long distances of up to 800 m, simplifying cabling .
Main specifications:
- 2MP Full HD (1920×1080)
- 2.7–13.5 mm motorized lens, 5x optical zoom
- IR up to 50m + Starlight
- Real WDR 120 dB
- HDMI + H.265 triple streaming
- ePoE transmission up to 800 m
- IP67 and IK10 vandal-proof
Further details

Technical data sheet
Model | IPC-HDBW5231E-ZE-HDMI |
Room | |
Image Sensor | 1/2.8” 2Megapixel progressive scan CMOS |
Effective Pixel | 1920(H)x1080(V) |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual, 1/3(4)~1/100000s |
Min. Illumination |
0.006Lux/F1.6 ( Color,1/3s,30IRE) 0.05Lux/F1.6 ( Color,1/30s,30IRE) 0Lux/F1.6 (IR on) |
S/N Ratio | More than 50dB |
IR Distance | Distance up to 50m (164ft) |
IR On/Off Control | Auto/Manual |
IR LEDs | 3 |
Lens | |
Lens Type | Motorized |
Mount Type | Board-in |
Focal Length | 2.7~13.5mm motorized |
Max Openings | F1.6 |
Angle Of View | H: 101° ~ 31°, V: 54° ~ 17° |
Optical Zoom | 5x |
Focus Control | Motorized |
Close Focus Distance | 0.3m(0.98ft) |
Intelligence | |
IVS | Tripwire, Intrusion, Object Abandoned/Missing |
Advanced Intelligent Functions | Face Detection |
Video | |
Compression | H.265/H.264/H.264B/H.264H/MJPEG(sub stream) |
Smart Codec | Support H.265+/H.264+ |
Streaming Capability | 3 Streams |
Resolution |
1080P(1920×1080)/ 1.3M(1280x960)/ 720P(1280x720)/ D1(704×576/704x480)/ CIF(352×288/352×240) |
Frame Rate |
Main Stream: 1080P(1~25/30fps) Sub Stream: D1 (1 ~ 25/30fps) Third Stream: 1080P(1~25/30fps) |
Bit Rate Control | CBR/VBR |
Bit Rate |
H.264: 24~9472Kbps H.265: 14~5632Kbps |
Day/Night | Auto(ICR) / Color / B/W |
BLC Mode | BLC / HLC / WDR(120dB) |
White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
Gain Control | Auto/Manual |
Noise Reduction | 3D DNR |
Motion Detection | Off / On (4 Zone, Rectangle) |
Region of interest | Off / On (4 Zones) |
Electronic Image Stabilization | N/A |
Smart IR | Support |
Digital Zoom | 16x |
Flip | 0°/90°/180°/270° |
Mirror | Off / On |
Privacy Masking | Off / On (4 Area, Rectangle) |
Audio | |
Compression | G.711a/ G.711Mu/ AAC/ G.726 |
Network | |
Ethernet | RJ-45 (10/100Base-T) |
Protocol |
HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP; FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP; NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;S NMP;TLS |
Compatibility | ONVIF® Profile S&G, API |
Streaming Method | Unicast / Multicast |
Edge Storage |
NAS Local PC for instant recording 128GB Micro SD card |
Web Viewer | IE, Chrome, Firefox, Safari |
Max. User Access | 10 Users/20 Users |
Edge Storage |
NAS Local PC for instant recording 128GB Micro SD card |
Web Viewer |
IE, Chrome, Firefox, Safari |
Management Software | Smart PSS, DSS, Easy4ip |
Smartphone | iOS, Android |
Auxiliary Interface | |
Video Output | 1 port (HDMI 1.4a) |
RS485 | N/A |
Alarm |
1 channel In: 5mA 5VDC 1 channel Out: 300mA 12V |
Audio | 1/1 channel In/Out |
General | |
Power Supply | DC12V, AC24V, PoE(802.3at)(Class 4) |
Power Consumption |
DC12V:4.4W 12.3W(IR on) PoE: 5.0W 11.8W(IR on) |
Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
Storage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
Ingress Protection | IP67 |
Vandal Resistance | IK10 |
Casing | Metal |
Dimensions | Φ159.1mm*117.9mm |
Net Weight | 0.95Kg (2.09lb) |
Gross Weight | 1.2Kg (2.65lb) |
