IPC-HDBW5231E-ZE-HDMI - è una telecamera dome IP da 2MP con ottica motorizzata 2.7–13.5mm F1.6, ideale per videosorveglianza avanzata in ambienti critici. Grazie alla tecnologia Starlight, garantisce immagini a colori anche in condizioni di scarsa illuminazione, mentre il WDR reale a 120 dB assicura visibilità ottimale in scene ad alto contrasto. Supporta alimentazione e trasmissione dati/audio/video su un unico cavo grazie alla tecnologia ePoE, con portata fino a 800 m. Dotata di IR fino a 50 m, uscita HDMI, protezione IP67 e IK10, è perfetta per installazioni professionali in esterni e interni. Dahua
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>

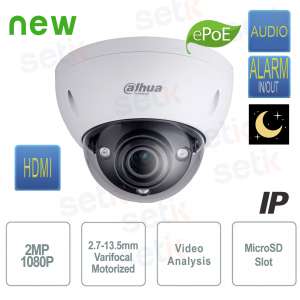

IPC-HDBW5231E-ZE-HDMI | TELECAMERA IP ESTERNA ONVIF® POE DAHUA 2 MP MOTORIZZATA CON USCITA VIDEO HDMI!

La Dahua IPC-HDBW5231E-ZE-HDMI è una telecamera dome IP da 2MP con ottica motorizzata 2.7–13.5mm F1.6 e zoom ottico 5x, ideale per ambienti con condizioni di luce variabili grazie alla tecnologia Starlight e al WDR reale 120dB. Offre streaming triplo in H.265, con uscita HDMI, microfono/audio bidirezionale e IR fino a 50 metri. La protezione IP67 e IK10 ne garantisce la resistenza agli agenti atmosferici e agli atti vandalici, mentre la tecnologia ePoE consente una trasmissione e alimentazione su lunghe distanze fino a 800 m, semplificando il cablaggio.
Specifiche principali:
- 2MP Full HD (1920×1080)
- Ottica motorizzata 2.7–13.5 mm, zoom ottico 5x
- IR fino a 50 m + Starlight
- WDR reale 120 dB
- HDMI + triplo streaming H.265
- Trasmissione ePoE fino a 800 m
- IP67 e IK10 antivandalo
Ulteriori dettagli

Scheda tecnica
Model | IPC-HDBW5231E-ZE-HDMI |
Camera | |
Image Sensor | 1/2.8” 2Megapixel progressive scan CMOS |
Effective Pixel | 1920(H)x1080(V) |
Scanning System | Progressive |
Electronic Shutter speed | Auto/Manual, 1/3(4)~1/100000s |
Min. Illumination |
0.006Lux/F1.6 ( Color,1/3s,30IRE) 0.05Lux/F1.6 ( Color,1/30s,30IRE) 0Lux/F1.6 (IR on) |
S/N Ratio | More than 50dB |
IR Distance | Distance up to 50m(164ft) |
IR On/Off Control | Auto/ Manual |
IR LEDs | 3 |
Lens | |
Lens Type | Motorized |
Mount Type | Board-in |
Focal Length | 2.7~13.5mm motorized |
Max Aperture | F1.6 |
Angle Of view | H: 101° ~ 31°, V: 54° ~ 17° |
Optical Zoom | 5x |
Focus Control | Motorized |
Close Focus Distance | 0.3m(0.98ft) |
Intelligence | |
IVS | Tripwire, Intrusion, Object Abandoned/Missing |
Advanced Intelligent Functions | Face Detection |
Video | |
Compression | H.265/H.264/H.264B/H.264H/MJPEG(sub stream) |
Smart Codec | Support H.265+/H.264+ |
Streaming Capability | 3 Streams |
Resolution |
1080P(1920×1080)/ 1.3M(1280x960)/ 720P(1280x720)/ D1(704×576/704x480)/ CIF(352×288/352×240) |
Frame Rate |
Main Stream: 1080P(1~25/30fps) Sub Stream: D1 (1 ~ 25/30fps) Third Stream: 1080P(1~25/30fps) |
Bit Rate Control | CBR/VBR |
Bit Rate |
H.264: 24~ 9472Kbps H.265: 14~ 5632Kbps |
Day/Night | Auto(ICR) / Color / B/W |
BLC Mode | BLC / HLC / WDR(120dB) |
White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
Gain Control | Auto/Manual |
Noise Reduction | 3D DNR |
Motion Detection | Off / On (4 Zone, Rectangle) |
Region Of interest | Off / On (4 Zone) |
Electronic Image Stabilization | N/A |
Smart IR | Support |
Digital Zoom | 16x |
Flip | 0°/90°/180°/270° |
Mirror | Off / On |
Privacy Masking | Off / On (4 Area, Rectangle) |
Audio | |
Compression | G.711a/ G.711Mu/ AAC/ G.726 |
Network | |
Ethernet | RJ-45 (10/100Base-T) |
Protocol |
HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP; FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP; NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;S NMP;TLS |
Compatibility | ONVIF® Profile S&G, API |
Streaming Method | Unicast / Multicast |
Edge Storage |
NAS Local PC for instant recording Micro SD card 128GB |
Web Viewer | IE, Chrome, Firefox, Safari |
Max. User Access | 10 Users/20 Users |
Edge Storage |
NAS Local PC for instant recording Micro SD card 128GB |
Web Viewer |
IE, Chrome, Firefox, Safari |
Management Software | Smart PSS, DSS, Easy4ip |
Smartphone | IOS, Android |
Auxiliary Interface | |
Video Output | 1 port(HDMI 1.4a) |
RS485 | N/A |
Alarm |
1 channel In: 5mA 5VDC 1 channel Out: 300mA 12V |
Audio | 1/1 channel In/Out |
General | |
Power Supply | DC12V, AC24V, PoE(802.3at)(Class 4) |
Power Consumption |
DC12V:4.4W 12.3W(IR on) PoE:5.0W 11.8W(IR on) |
Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
Storage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
Ingress Protection | IP67 |
Vandal Resistance | IK10 |
Casing | Metal |
Dimensions | Φ159.1mm*117.9mm |
Net Weight | 0.95Kg (2.09lb) |
Gross Weight | 1.2Kg (2.65lb) |
