IPC-HDBW3241E-S-S2 | 2MP ONVIF® POE OUTDOOR IP CAMERA WITH ARTIFICIAL INTELLIGENCE - VIDEO ANALYSIS


Dahua

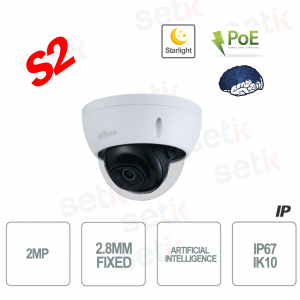

The Dahua IPC-HDBW3241E-S-S2 is a 2MP dome IP camera with a 2.8mm fixed lens, designed for intelligent video surveillance thanks to the integration of advanced AI (WizSense, SMD 4.0, AI SSA). It ensures clear images even in low light conditions, with AI H.265/H.264 video encoding, IP67/IK10 protection, and precise human and vehicle detection for professional and security applications.

Main specifications:

- Full HD 2MP resolution (1920×1080)

- 2.8 mm fixed optics – 107° horizontal viewing angle

- IR up to 50m with integrated LEDs

- AI human/vehicle detection (tripwire, intrusion)

- Smart H.265+/AI H.265 Codec – high efficiency and low bandwidth

- IP67/IK10 protection, ideal for outdoor use

Further details

Full HD 2MP resolution:
The 1/2.8" CMOS sensor provides a maximum resolution of 1920 × 1080 pixels (Full HD) at 25/30 fps, with excellent performance even in low light conditions (up to 0.002 lux in color and 0 lux with IR active), ensuring clear and detailed images both day and night.
Optics :
The 2.8mm lens offers a wide 107° horizontal field of view, perfect for video surveillance of large areas such as entrances, parking lots, offices, or commercial spaces. The minimum focus distance is just 0.7 meters, making it ideal for close-up installations.
SMD 4.0 Technology :
The Smart Motion Detection 4.0 system uses AI algorithms to distinguish real targets (people or vehicles) from irrelevant movements like animals or blowing leaves, dramatically reducing false alarms. When paired with an AI NVR, it also enables the "Quick Pick" function to quickly select subjects in videos.

AI SSA – Scene Self-Adaptation:
AI SSA (Scene Self-adaptation) technology automatically recognizes environmental conditions such as rain, fog, backlighting, or low-light conditions, optimizing image parameters in real time. The result is excellent visibility in any environment, intelligently improving surveillance quality.
Perimeter Protection:
Thanks to deep learning algorithms, the Perimeter Protection feature can detect intrusions and line crossings, accurately distinguishing between people and vehicles. In sensitive environments such as pedestrian areas or vehicle access points, this feature minimizes false alarms and improves perimeter security efficiency.
IPC-HDBW3241E-S camera dimensions diagram

Technical data sheet

Model IPC-HDBW3241E-S-S2
Room
Image Sensor 1/2.8” 2Megapixel progressive CMOS
Effective Pixel 1920 (H) ×1080 (V)
ROM/RAM 128MB/512MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination

0.002 lux@F1.4 (Color, 30 IRE) 0.0002 lux@F1.4 (B/W, 30 IRE) 0 lux (Illuminator on)

S/N Ratio

>56 dB

IR Distance 50 m (164.04 ft)
IR On/Off Control Auto/Manual
IR LEDs 3 (IR LEDs)
Pan/Tilt/Rotation Range Pan: 0°–355°; Tilt: 0°–80°; Rotation: 0°–355°
Lens
Lens Type Fixed focal
Mount Type M12
Focal Length 2.8 mm
Max. Openings F1.4
Field of View Horizontal:107°; vertical: 56°; diagonal: 127°
Iris Type Fixed
Close Focus Distance 0.7 m (2.3 ft)
Intelligent
IVS (Perimeter Protection) Tripwire, intrusion (support the classification and accurate detection of vehicle and human)
TO THE SSA Yes
Quick Pick With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.265+ Smart H.264+
AI Coding AI H.265
AI H.264
Video Frame Rate

Main stream: 1920 × 1080 @ (1–25/30) fps Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) Sub stream 2: 1920 × 1080 @ (1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity

Stream Capability

3 streams

Resolution 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640×480)
Bit Rate Control

CBR/VBR

Video Bit Rate H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation (SSA) Yes
White Balance Car; natural; street lamp; outdoor; manual; regional custom
Gain Control Car
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Defog Yes
AFSA Yes
Image Rotation 0°/90°/180°/270° (support 90°/270° with 1920×1080 resolution and lower)
Mirror Yes
Privacy Masking 4 Areas
Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; PCM; G.726; G.723
Alarm Event No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; SMD; safety exception
Network
Ethernet RJ-45 (10/100 Base-T)
SDK and API Yes
Network Protocol IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Cyber Security Video encryption; Firmware encryption; Configuration encryption; Digests; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrades
Interoperability ONVIF® (Profile S/Profile G/Profile T); CGI; P2P; Milestones; Genetec
User/Host 20 (Total bandwidth: 64 M)
Edge Storage

FTP; SFTP; Micro SD card (support max. 256G); NAS

Browser IE:IE11
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Smartphone iOS; Android
Certifications
Certifications

CE-LVD:EN62368-1; CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU; FCC:47 CFR FCC Part 15, Subpart B; UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Power
Power Supply 12 VDC/PoE (802.3af)
Power Consumption

Basic: 2.3W (12VDC); 2.9 W (PoE) Max. (WDR + IR intensity + Intelligence): 6.6 W (12 VDC); 7.7W (PoE)

Environment
Operating Conditions –40 °C to +60 °C (–40 °F to 140 °F) /Less than 95% RH
Storage Conditions –40 °C to +60 °C (–40 °F to 140 °F)
Ingress Protection IP67; IK10
Structure
Casing Metal
Dimensions 89.1 mm × Φ111.7 mm (3.51" × Φ4.40")
Net Weight 516 g (1.14 lb)
Gross Weight 670 g (1.48 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
