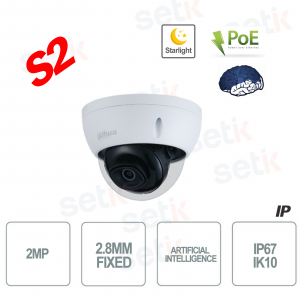

IPC-HDBW3241E-S-S2 - è una videocamera di sorveglianza IP da 2MP con ottica fissa da 2.8mm, campo visivo grandangolare da 107°, IR fino a 50m, e protezione IP67/IK10. Grazie all’intelligenza artificiale integrata (AI SSA, SMD 4.0, rilevamento persone/veicoli), offre massima precisione nell’analisi video, riducendo i falsi allarmi. Supporta compressione AI H.265/H.264 per prestazioni elevate con banda minima. Ideale per videosorveglianza professionale in ambienti critici, anche con scarsa illuminazione. Dahua
Riferimento: IPC-HDBW3241E-S-S2
Marca: Dahua
EAN: 6923172541635
Disponibilità: 6

FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>
IPC-HDBW3241E-S-S2 | TELECAMERA IP ONVIF® POE DA ESTERNO - 2 MP CON INTELLIGENZA ARTIFICIALE - VIDEO ANALISI

La Dahua IPC-HDBW3241E-S-S2 è una videocamera IP dome da 2MP con ottica fissa da 2.8mm, progettata per videosorveglianza intelligente grazie all’integrazione di AI avanzata (WizSense, SMD 4.0, AI SSA). Garantisce immagini nitide anche in condizioni di scarsa illuminazione, con codifica video AI H.265/H.264, protezione IP67/IK10, e rilevamento preciso di persone e veicoli per applicazioni professionali e sicure.
Specifiche principali:
- Risoluzione Full HD 2MP (1920×1080)
- Ottica fissa da 2.8 mm – angolo visivo orizzontale 107°
- IR fino a 50 m con LED integrati
- Rilevamento AI persone/veicoli (tripwire, intrusion)
- Codec Smart H.265+/AI H.265 – alta efficienza e bassa banda
- Protezione IP67/IK10, ideale per esterni
Ulteriori dettagli
✅ AI SSA – Scene Self-Adaptation:
Scheda tecnica
Model | IPC-HDBW3241E-S-S2 |
Camera | |
Image Sensor | 1/2.8” 2Megapixel progressive CMOS |
Effective Pixel | 1920 (H) ×1080 (V) |
ROM/RAM | 128MB/512MB |
Scanning System | Progressive |
Electronic Shutter speed | Auto/Manual 1/3 s–1/100,000 s |
Min. Illumination |
0.002 lux@F1.4 (Color, 30 IRE) 0.0002 lux@F1.4 (B/W, 30 IRE) 0 lux (Illuminator on) |
S/N Ratio |
>56 dB |
IR Distance | 50 m (164.04 ft) |
IR On/Off Control | Auto/Manual |
IR LEDs | 3 (IR LEDs) |
Pan/Tilt/Rotation Range | Pan: 0°–355°; Tilt: 0°–80°; Rotation: 0°–355° |
Lens | |
Lens Type | Fixed focal |
Mount Type | M12 |
Focal Length | 2.8 mm |
Max. Aperture | F1.4 |
Field of View | Horizontal:107°; vertical: 56°; diagonal: 127° |
Iris Type | Fixed |
Close Focus Distance | 0.7 m (2.3 ft) |
Intelligent | |
IVS (Perimeter Protection) | Tripwire, intrusion (support the classification and accurate detection of vehicle and human) |
AI SSA | Yes |
Quick Pick | With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events |
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Video | |
Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
Smart Codec | Smart H.265+ Smart H.264+ |
AI Coding | AI H.265 AI H.264 |
Video Frame Rate |
Main stream: 1920 × 1080 @ (1–25/30) fps Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) Sub stream 2: 1920 × 1080 @ (1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
Stream Capability |
3 streams |
Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640 × 480) |
Bit Rate Control |
CBR/VBR |
Video Bit Rate | H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps |
Day/Night | Auto (ICR)/Color/B/W |
BLC | Yes |
HLC | Yes |
WDR | 120 dB |
Scene Self-adaptation (SSA) | Yes |
White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
Gain Control | Auto |
Noise Reduction | 3D DNR |
Motion Detection | OFF/ON (4 areas, rectangular) |
Region of Interest(RoI) | Yes (4 areas) |
Defog | Yes |
AFSA | Yes |
Image Rotation | 0°/90°/180°/270° (support 90°/270° with 1920×1080 resolution and lower) |
Mirror | Yes |
Privacy Masking | 4 Areas |
Audio | |
Built-in MIC | Yes |
Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
Alarm Event | No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; SMD; safety exception |
Network | |
Ethernet | RJ-45 (10/100 Base-T) |
SDK and API | Yes |
Network Protocol | IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
Interoperability | ONVIF® (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
User/Host | 20 (Total bandwidth: 64 M) |
Edge Storage |
FTP; SFTP; Micro SD card (support max. 256 G); NAS |
Browser | IE:IE11 Chrome Firefox |
Management Software | Smart PSS; DSS; DMSS |
Smartphone | IOS; Android |
Certifications | |
Certifications |
CE-LVD:EN62368-1; CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU; FCC:47 CFR FCC Part 15, Subpart B; UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
Power | |
Power Supply | 12 VDC/PoE (802.3af) |
Power Consumption |
Basic: 2.3 W (12 VDC); 2.9 W (PoE) Max. (WDR + IR intensity + Intelligence): 6.6 W (12 VDC); 7.7 W (PoE) |
Environment | |
Operating Conditions | –40 °C to +60 °C (–40 °F to 140 °F) /Less than 95% RH |
Storage Conditions | –40 °C to +60 °C (–40 °F to 140 °F) |
Ingress Protection | IP67; IK10 |
Structure | |
Casing | Metal |
Dimensions | 89.1 mm × Φ111.7 mm (3.51" × Φ4.40") |
Net Weight | 516 g (1.14 lb) |
Gross Weight | 670 g (1.48 lb) |
