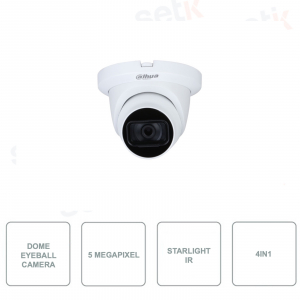

HAC-HDW1500TLMQ-S2 is a 5MP HDCVI eyeball dome camera from the Lite series, designed to offer high definition images in both indoor and outdoor environments. Equipped with a 1/2.7" CMOS sensor, 2.8 mm fixed lens and Starlight technology, it guarantees excellent performance even in low light conditions. The integrated Smart IR illuminator allows night vision up to 30 meters , while the IP67 protection ensures resistance to atmospheric agents. 4in1 compatibility (HDCVI / TVI / AHD / CVBS) makes this camera a versatile and reliable solution for video surveillance.
referencia : HAC-HDW1500TLMQ-S2
brand : Dahua
EAN: 6939554951770
Disponibilità: 46

DAHUA: DEBAJO DEL COSTE×
DESCUENTOS INCREÍBLES
en una selección de productos DAHUA
Descubre la promoción ahora >>
LIQUIDACION TOTAL ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>
HAC-HDW1500TLMQ-S2 | 4IN1 FIXED LENS CAMERA 2.8mm 5MP STARLIGHT

The Dahua HAC-HDW1500TLMQ-S2 is a 5MP HDCVI dome camera ideal for high definition video surveillance in residential or corporate environments. It offers clear images even in low light conditions thanks to Starlight technology and IR illumination up to 30 meters. Compact and resistant, it is perfect for indoor and outdoor installations, supporting 4 technologies in 1 (HDCVI / TVI / AHD / CVBS) for maximum compatibility.
Main specifications:
- 5 Megapixel resolution for detailed images
- Starlight technology for clear vision in low light
- 2.8mm fixed optics for wide viewing angle
- Smart IR illumination up to 30 meters
- 4-in-1 Switch: HDCVI, AHD, TVI, CVBS
- Durable metal case with IP67 protection rating
- WDR 120dB, 3DNR, BLC, HLC to optimize video quality
- Easy installation with switchable BNC video output
Further details
✅ CMOS Sensor:
✅ IR Illumination:
✅ Metal case:

Technical data sheet
MODEL | HAC-HDW1500TLMQ-S2 |
Room | |
Image Sensor | 1/2.7 inch CMOS |
Pixel | 5 MP |
Max. Resolution | 2880 (H) × 1620 (V) |
Scanning System | Progressive |
Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s |
Y/N Ratio | > 65 dB |
Min. Illumination | 0.005 Lux/F1.6, 30IRE, 0 Lux IR on |
Illumination Distance | 30 m (98.4 ft) |
Illuminator On/Off Control | Car; manual |
Illuminator Number | 1 |
Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
Lens | |
Lens Type | Fixed focal |
Mount Type | M12 |
Focal Length | 2.8mm |
Max. Openings | F1.6 |
Field of View | 132° × 111° × 58° (diagonal × horizontal × vertical) |
Close Focus Distance | 0.9 m (3.0 ft) |
Video | |
Frame Rate | CVI: PAL: 5M@25fps; 4M@25fps; 1080P@25fps; NTSC: 5M@25fps; 4M@30fps; 1080P@30fps AHD: PAL: 4M@25fps; NTSC: 4M@30fps TVI: PAL: 4M@25fps; NTSC: 4M@30fps CVBS: PAL: 960H; NTSC: 960H |
Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920×1080); 960H (960 × 576/960 × 480) |
Day/Night | Auto switch by ICR |
BLC | BLC/HLC/DWDR |
WDR | DWDR |
White Balance | Car; manual |
Gain Control | Car; manual |
Noise Reduction | 2D NR |
Smart IR | Yes |
Mirror | Off/On |
Privacy Masking | Off/On (8 areas, rectangle) |
Certifications | |
Certifications | CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Port | |
Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
Power | |
Power Supply | 12V ±30% DC |
Power Consumption | Max 3.2W (12V DC, IR on) |
Environment | |
Operating Temperature | –40°C to +60°C (–40°F to 140°F); < 95% (non-condensation) |
Operating Humidity | –40°C to +60°C (–40°F to 140°F); < 95% (non-condensation) |
Protection | IP67 |
Structure | |
Casing | Metal dome+metal cover+plastic decorative ring |
Product Dimensions | φ109.9 mm × 88.1 mm ( φ4.33" × 3.47") |
Net Weight | 0.33 kg (0.73 lb) |
Gross Weight | 0.44 kg (0.97 lb) |
