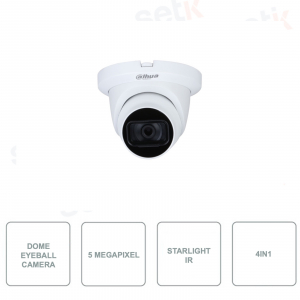

HAC-HDW1500TLMQ-S2 è una telecamera dome eyeball HDCVI da 5MP della serie Lite, progettata per offrire immagini ad alta definizione sia in ambienti interni che esterni. Dotata di un sensore CMOS da 1/2.7", ottica fissa da 2.8 mm e tecnologia Starlight, garantisce prestazioni eccellenti anche in condizioni di scarsa illuminazione. L'illuminatore Smart IR integrato consente una visione notturna fino a 30 metri, mentre la protezione IP67 assicura resistenza agli agenti atmosferici. La compatibilità 4in1 (HDCVI/TVI/AHD/CVBS) rende questa telecamera una soluzione versatile e affidabile per la videosorveglianza.
Riferimento: HAC-HDW1500TLMQ-S2
Marca: Dahua
EAN: 6939554951770
Disponibilità: 10
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>
HAC-HDW1500TLMQ-S2 | TELECAMERA 4IN1 OTTICA FISSA 2.8mm 5MP STARLIGHT

La Dahua HAC-HDW1500TLMQ-S2 è una telecamera dome HDCVI da 5MP ideale per la videosorveglianza ad alta definizione in ambito residenziale o aziendale. Offre immagini nitide anche in condizioni di scarsa illuminazione grazie alla tecnologia Starlight e a un’illuminazione IR fino a 30 metri. Compatta e resistente, è perfetta per installazioni interne ed esterne, supportando 4 tecnologie in 1 (HDCVI/TVI/AHD/CVBS) per la massima compatibilità.
Specifiche principali:
- Risoluzione 5 Megapixel per immagini dettagliate
- Tecnologia Starlight per visione chiara in bassa luminosità
- Ottica fissa da 2.8 mm per ampio angolo di visione
- Illuminazione IR Smart fino a 30 metri
- Switch 4-in-1: HDCVI, AHD, TVI, CVBS
- Custodia in metallo resistente con grado di protezione IP67
- WDR 120dB, 3DNR, BLC, HLC per ottimizzare la qualità video
- Installazione semplice con uscita video BNC commutabile
Ulteriori dettagli
✅ Sensore CMOS:
✅ Illuminazione IR:
✅ Custodia in metallo:

Scheda tecnica
| MODEL | HAC-HDW1500TLMQ-S2 |
| Camera | |
| Image Sensor | 1/2.7 inch CMOS |
| Pixel | 5 MP |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s |
| S/N Ratio | > 65 dB |
| Min. Illumination | 0.005 Lux/F1.6, 30IRE, 0 Lux IR on |
| Illumination Distance | 30 m (98.4 ft) |
| Illuminator On/Off Control | Auto; manual |
| Illuminator Number | 1 |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8mm |
| Max. Aperture | F1.6 |
| Field of View | 132° × 111° × 58° (diagonal × horizontal × vertical) |
| Close Focus Distance | 0.9 m (3.0 ft) |
| Video | |
| Frame Rate | CVI: PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps; NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H |
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960 H (960 × 576/960 × 480) |
| Day/Night | Auto switch by ICR |
| BLC | BLC/HLC/DWDR |
| WDR | DWDR |
| White Balance | Auto; manual |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR |
| Smart IR | Yes |
| Mirror | Off/On |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Certifications | |
| Certifications | CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Port | |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Power | |
| Power Supply | 12V ±30% DC |
| Power Consumption | Max 3.2W (12V DC, IR on) |
| Environment | |
| Operating Temperature | –40°C to +60°C (–40°F to 140°F); < 95% (non-condensation) |
| Operating Humidity | –40°C to +60°C (–40°F to 140°F); < 95% (non-condensation) |
| Protection | IP67 |
| Structure | |
| Casing | Metal dome+metal cover+plastic decorative ring |
| Product Dimensions | φ109.9 mm × 88.1 mm ( φ4.33" × 3.47" ) |
| Net Weight | 0.33 kg (0.73 lb) |
| Gross Weight | 0.44 kg (0.97 lb) |
