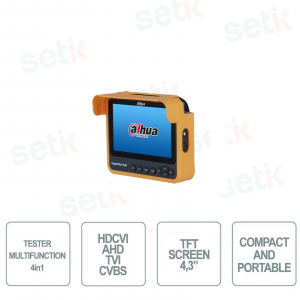

TESTER MULTIFUNZIONE 4IN1 DAHUA - TEST AUDIO - SCHERMO TFT DA 4.3 POLLICI - 8 TASTI

Tester Mutlifunzione 4in1 (HDCVI/AHD/TVI/CVBS), con schermo TFT da 4.3 pollici, 8 tasti. 3 Indicatori LED.
Dettagli prodotto

- Tester Mutlifunzione 4in1 (HDCVI/AHD/TVI/CVBS)
- Schermo TFT da 4.3 pollici
- 8 tasti
- 3 Indicatori LED
- OSD menu e PTZ control
- Test audio
- 1 entrata Audio
- 1 usb 1 micro-B
- RS 485
- Alimentazione 12V/1A DC per la telecamera
- Ricarica tramite USB
- Compatto e portatile, progettato con un cinturino da polso rimovibile
Scheda tecnica
| Model | PFM904 |
| System | |
| Operation System | Linux |
| Language | Multi-language interface |
| Operation Mode | Keyboard |
| Auto Standby/Shutdown | Yes |
| Keyboard Sound | Enable/disable |
| Screen | 4.3" TFT screen, 480 × 272 resolution |
| Keyboard |
Controlling keyboard: 8 keys Others: power button |
| LED Indicator Light | 3* 35lm lights |
| Update | Local update |
| Analog Video Test | |
| Format | HDCVI; HDTVI; AHD; CVBS (NTSC; PAL) |
| Resolution |
HDCVI: 2MP@25 fps/30 fps; 4MP@25 fps/30 fps; 5MP@20 fps; 6MP@20 fps; 4K@12.5 fps/15 fps HDTVI: 2MP@25 fps/30 fps; 4MP@25 fps/30 fps; 5MP@20 fps AHD: 2MP@25 fps/30 fps; 4MP@25 fps/30 fps CVBS: NTSC; PAL |
| Function Control | OSD menu display; PTZ |
| Video Display | Live view |
| RS–485 Control | |
| Communication Protocol | More than 30 protocols such as Pelco-D/P, Samsung, Panasonic, Lilin, and Yaan |
| Baud Rate | 150 bps; 300 bps; 600 bps; 1200 bps; 2400 bps; 4800 bps; 9600 bps; 19200 bps |
| Protection | |
| ESD |
Air discharge: ±8KV Contact discharge: ±6KV |
| Others | |
| Audio Test | 1 channel audio input test |
| Camera Power Supply | 12V/1A DC power output to the camera |
| Certifications | |
| Certifications |
CE: EN 55032 FCC: FCC Part 15 Subpart B |
| Port | |
| Power | 1 power out, 12V/1A DC |
| Audio | 1 audio input |
| USB | 1 USB micro-B, charging/data |
| RS–485 | 1 |
| Power | |
| Charging | Micro USB 5V/1A |
| Battery | 2* 18650 lithium iron batteries, up to 14.8Wh, working about 8 hours |
| Environment | |
| Operating Temperature | -10°C to +55°C (+14°F to +131°F) |
| Operating Humidity | 30%–95% (RH) |
| Structure | |
| Appearance Color | Yellow |
| Dimensions | 125.0 mm × 100.0 mm × 65.0 mm (4.92" × 3.94"× 2.56") (L × W × H) |
| Net Weight | 0.34 kg (0.75 lb) |
| Gross Weight | 0.74 kg (1.63 lb) |
