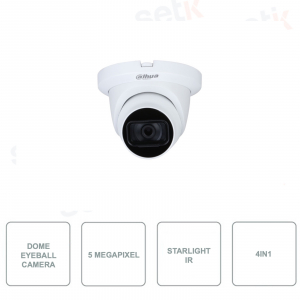

HAC-HDW1500TMQ-ZA-S2 5MP HDCVI Dome Camera with Motorized Varifocal Lens and 60m IR - Dahua

HAC-HDW1500TMQ-ZA-S2 5MP HDCVI Dome Camera with Motorized Varifocal Lens and 60m IR - Dahua
-57%

The HAC-HDW1500TMQ-ZA-S2 is an HDCVI dome camera designed for professional video surveillance systems on existing coaxial infrastructure, offering clear images in 5 MP resolution with a 16:9 format. Thanks to the 2.7–12 mm motorized varifocal lens , it allows precise framing adjustment to adapt to different distances and scenarios. It integrates Starlight and Smart IR technology up to 60 m for excellent performance even in low light conditions. The integrated microphone , support for CVI/CVBS/AHD/TVI and IP67 protection make it a reliable, flexible and ideal solution for indoor and outdoor installations. Dahua

Technical data sheet

referencia : HAC-HDW1500TMQ-Z-A-S2

brand : Dahua

EAN: 6939554950780

Disponibilità: 20

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-01-28 15:40:48 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


HAC-HDW1500TMQ-ZA-S2 | 5MP 4-IN-1 DOME CAMERA WITH 2.7-12mm VARIFOCAL LENS - IR 60m

Dahua

The Dahua HAC-HDW1500TMQ-ZA-S2 is an HDCVI dome camera designed to ensure high-definition video surveillance on existing coaxial systems, offering clear images in 5 MP resolution with a 16:9 format. The 2.7–12 mm motorized varifocal lens allows for precise framing adjustment, adapting to different application scenarios. Thanks to Starlight technology and Smart IR up to 60 m , it ensures high performance even in low light conditions. The integrated microphone , CVI/CVBS/AHD/TVI compatibility and IP67 protection make it a reliable and versatile solution for indoor and outdoor environments.

Main specifications:

- 5 MP resolution with 16:9 video output

- Motorized varifocal lens 2.7–12 mm

- Starlight and Smart IR technology up to 60 m

- Built-in microphone for audio capture

- CVI, CVBS, AHD and TVI compatibility

- IP67 protection rating for indoor and outdoor use

Further details

Varifocal optics :
The 2.7–12 mm motorized varifocal lens allows for precise adjustment of the viewing angle, allowing the framing to be adapted to different distances and scenarios, improving control of sensitive areas and installation flexibility.
Resolution:
The 5 MP (2880×1620) resolution guarantees high definition images, rich in detail and ideal for the accurate identification of people and objects, even in professional and commercial contexts.
Video :
The system supports 16:9 video output at 25 fps , HDCVI technology and Smart IR up to 60 m , ensuring smooth, stable and well-lit images both during the day and in low light conditions.
Doors:
Equipped with BNC CVI/TVI/AHD/CVBS video output and built-in microphone , it offers high compatibility with existing HD/SD DVRs and simplified management of audio and video signals over coaxial infrastructure.

Technical data sheet

MODEL HAC-HDW1500TMQ-ZA-S2
Room
Sensor
1/2.7" CMOS
Resolution
max.
2688 (H) × 1520 (V)
Pixel 5 MP
Scan Progressive
Speed
Shutter
electronic
1/25~1/100,000 s
S/N Ratio > 56 dB
Lighting
minimum
0.005 Lux/F1.6, 30IRE, 0 Lux IR on
IR range 60 m
IR On/Off Auto / manual
Illuminators
IR
2
Pan/
Tilt/
Rotation
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Optics
Typology Motorized vari-focal
Auto Focus N/A
Assembly φ14
Focal Length 2.7 mm–12 mm
Max. Openings F1.6
Field of view Diagonal: 39°~130° Horizontal: 34°~107° Vertical: 19°~55°
Iris typology Fixed
Distance
focus
0.5 m
Video
Frame Rate CVI: 5MP@25fps; 4MP@25fps; 1080P@25 fps AHD: 4 MP@25 fps TVI: 4 MP@25 fps CVBS: 960H
Resolutions 5MP (2880×1620); 4MP (2560×1440) 1080P (1920×1080); 960H (960×576 / 960×480)
Day/
Night
Auto switch ICR
BLC BLC/HLC/DWDR
WDR DWDR
Balancing
whites
Auto / manual
Gain Control Auto/Manual
Noise reduction 2D NR
Smart IR Yes
Mirror Off/On
Privacy Masking Off/On (8 rectangular areas)
Certifications
Certifications CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368- 1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Doors
Audio interface 1 channel, built-in microphone
Video output CVI/TVI/AHD/CVBS BNC connector
Energy
Diet DC 12V ±10%
Absorption Max 8.2 W (12V DC, IR on)
Environmental conditions
Temperature
exercise
–30°C~+60°C / <95% RH
Temperature
storage
–30°C~+60°C / <95% RH
Grade
protection
IP67
Structure
Body Metal dome and cover + plastic decorative ring

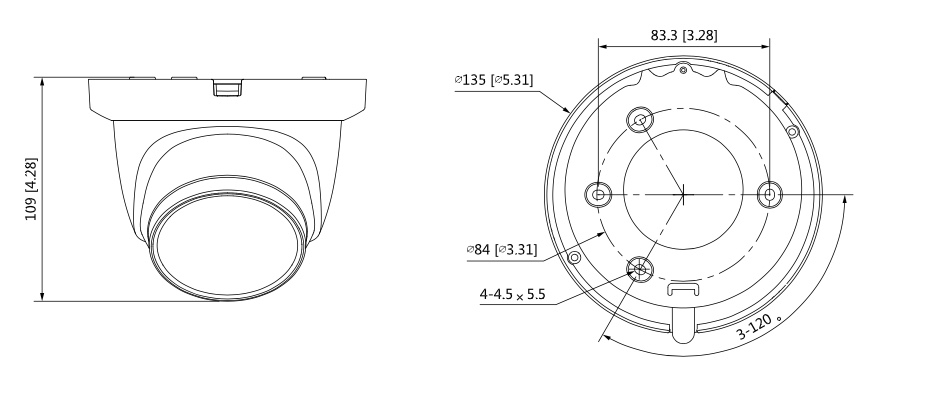

Dimensions φ135×109 mm
Net weight 0.52 kg
Weight with
packaging
0.62 kg
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
