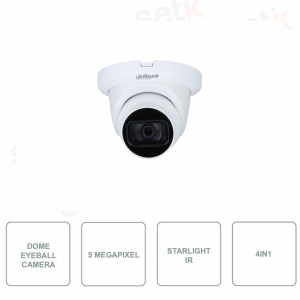

The HAC-HDW1500TMQ-ZA-S2 is an HDCVI dome camera designed for professional video surveillance systems on existing coaxial infrastructure, offering clear images in 5 MP resolution with a 16:9 format. Thanks to the 2.7–12 mm motorized varifocal lens , it allows precise framing adjustment to adapt to different distances and scenarios. It integrates Starlight and Smart IR technology up to 60 m for excellent performance even in low light conditions. The integrated microphone , support for CVI/CVBS/AHD/TVI and IP67 protection make it a reliable, flexible and ideal solution for indoor and outdoor installations. Dahua
HAC-HDW1500TMQ-ZA-S2 | 5MP 4-IN-1 DOME CAMERA WITH 2.7-12mm VARIFOCAL LENS - IR 60m

The Dahua HAC-HDW1500TMQ-ZA-S2 is an HDCVI dome camera designed to ensure high-definition video surveillance on existing coaxial systems, offering clear images in 5 MP resolution with a 16:9 format. The 2.7–12 mm motorized varifocal lens allows for precise framing adjustment, adapting to different application scenarios. Thanks to Starlight technology and Smart IR up to 60 m , it ensures high performance even in low light conditions. The integrated microphone , CVI/CVBS/AHD/TVI compatibility and IP67 protection make it a reliable and versatile solution for indoor and outdoor environments.
Main specifications:
- 5 MP resolution with 16:9 video output
- Motorized varifocal lens 2.7–12 mm
- Starlight and Smart IR technology up to 60 m
- Built-in microphone for audio capture
- CVI, CVBS, AHD and TVI compatibility
- IP67 protection rating for indoor and outdoor use
Further details
Equipped with BNC CVI/TVI/AHD/CVBS video output and built-in microphone , it offers high compatibility with existing HD/SD DVRs and simplified management of audio and video signals over coaxial infrastructure.

Technical data sheet
| MODEL | HAC-HDW1500TMQ-ZA-S2 |
| Room | |
| Sensor image |
1/2.7" CMOS |
| Resolution max. |
2688 (H) × 1520 (V) |
| Pixel | 5 MP |
| Scan | Progressive |
| Speed Shutter electronic |
1/25~1/100,000 s |
| S/N Ratio | > 56 dB |
| Lighting minimum |
0.005 Lux/F1.6, 30IRE, 0 Lux IR on |
| IR range | 60 m |
| IR On/Off | Auto / manual |
| Illuminators IR |
2 |
| Pan/ Tilt/ Rotation |
Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Optics | |
| Typology | Motorized vari-focal |
| Auto Focus | N/A |
| Assembly | φ14 |
| Focal Length | 2.7 mm–12 mm |
| Max. Openings | F1.6 |
| Field of view | Diagonal: 39°~130° Horizontal: 34°~107° Vertical: 19°~55° |
| Iris typology | Fixed |
| Distance focus |
0.5 m |
| Video | |
| Frame Rate | CVI: 5MP@25fps; 4MP@25fps; 1080P@25 fps AHD: 4 MP@25 fps TVI: 4 MP@25 fps CVBS: 960H |
| Resolutions | 5MP (2880×1620); 4MP (2560×1440) 1080P (1920×1080); 960H (960×576 / 960×480) |
| Day/ Night |
Auto switch ICR |
| BLC | BLC/HLC/DWDR |
| WDR | DWDR |
| Balancing whites |
Auto / manual |
| Gain Control | Auto/Manual |
| Noise reduction | 2D NR |
| Smart IR | Yes |
| Mirror | Off/On |
| Privacy Masking | Off/On (8 rectangular areas) |
| Certifications | |
| Certifications | CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368- 1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Doors | |
| Audio interface | 1 channel, built-in microphone |
| Video output | CVI/TVI/AHD/CVBS BNC connector |
| Energy | |
| Diet | DC 12V ±10% |
| Absorption | Max 8.2 W (12V DC, IR on) |
| Environmental conditions | |
| Temperature exercise |
–30°C~+60°C / <95% RH |
| Temperature storage |
–30°C~+60°C / <95% RH |
| Grade protection |
IP67 |
| Structure | |
| Body | Metal dome and cover + plastic decorative ring |
| Dimensions | φ135×109 mm |
| Net weight | 0.52 kg |
| Weight with packaging |
0.62 kg |
