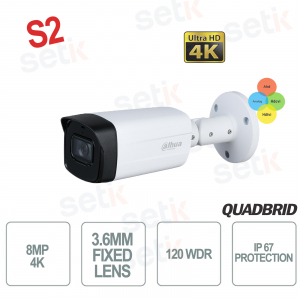

Dahua 4K HDCVI 8MP Camera with IR 80m and Starlight Technology

Dahua 4K HDCVI 8MP Camera with IR 80m and Starlight Technology
BEST PRICE -57%

HAC-HFW1801TH-I8-S2 is an 8MP HDCVI bullet camera, ideal for video surveillance in outdoor and indoor environments. Equipped with a 4K CMOS sensor and 3.6mm fixed lens, it offers detailed images even in low light conditions thanks to Starlight technology and the IR illuminator with a range of up to 80 meters . It supports CVI / TVI / AHD / CVBS video outputs, ensuring compatibility with different systems. The 120 dB WDR function ensures clear vision in scenes with strong light contrasts, while the IP67 protection makes it resistant to dust and water, suitable for installations in difficult environments. With a maximum power consumption of 6.4 W and 12 VDC power supply. Dahua

Technical Data Sheet

referencia : HAC-HFW1801TH-I8-S2

brand : Dahua

EAN: 6923172543493

Disponibilità: 13

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

HAC-HFW1801TH-I8-S2 | 4IN1 OUTDOOR CAMERA 3.6mm FIXED LENS 4K 8MP Dahua

The Dahua HAC-HFW1801TH-I8-S2 is an 8MP HDCVI bullet camera designed to deliver high-definition images in outdoor and indoor environments. Equipped with a 4K CMOS sensor and 3.6mm fixed lens, it guarantees a maximum resolution of 3840×2160 pixels at 15 fps. Starlight technology allows clear vision even in low light conditions, supported by an IR illuminator with a range of up to 80 meters. The camera offers advanced features such as WDR 120 dB, 3D NR, Smart IR and Super Adapt, ensuring clear and detailed images in different light conditions. 4-in-1 compatibility (CVI / TVI / AHD / CVBS) makes it versatile for different system configurations. With IP67 certification, it is resistant to dust and water, ideal for installations in harsh environments.

Main specifications:

- 4K Ultra HD resolution: 8MP CMOS sensor for detailed images.

- 3.6mm fixed lens: wide angle view ideal for outdoors.

- Starlight technology: excellent visibility in low light conditions.

- IR up to 80m: Infrared illuminators for clear night vision.

- IP67 protection: dustproof and waterproof, perfect for outdoor use.

Further details

3.6mm fixed optics:
It offers a wide viewing angle, ideal for monitoring outdoor areas such as entrances, parking lots or perimeters. The lens is designed to ensure image clarity and precision.
4K Resolution (8MP):
Thanks to the 1/2.7" 8 Megapixel CMOS sensor, the camera provides ultra high definition images, allowing you to capture every little detail in any scenario.

Starlight Technology:
Optimizes visibility in low light conditions, ensuring color images even in night or poorly lit environments, improving subject recognition.

Smart IR illumination up to 80 meters:
Intelligent infrared adapts to the distance of objects, avoiding overexposure and maintaining clear images even in total darkness, with a range of up to 80 meters.
IP67 Protection:
The water and dust resistant housing makes this camera perfect for outdoor use, ensuring durability even in extreme weather conditions.

HAC-HFW1801TH-I8-S2 dimensions

Technical data sheet

Model

HAC-HFW1801TH-I8-S2

Room
Pixel 8 MP
Image Sensor 4K CMOS
Max. Resolution 3840 (H) × 2160 (V)
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s
Min. Illumination 0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on)
Y/N Ratio >65dB
Illumination Distance 80 m (262.47 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (IR light)
Lens
Lens Type Fixed focal
Lens Mount M12
Focal Length 3.6mm
Max. Openings F2.0
Field of View H: 88°; V: 46°; D: 105°
Iris Control Fixed
Close Focus Distance 1.9 m (6.23 ft)
Video
Video Frame Rate CVI: PAL: 4K@15fps; 5M@25fps; 4M@25fps; 1080p@25fps NTSC: 4K@15fps; 5M@25fps; 4M@30fps; 1080p@30 fps TVI: PAL: 4K@15 fps NTSC: 4K@15 fps AHD: PAL: 4K@15 fps NTSC: 4K@15 fps CVBS: PAL: 960H NTSC: 960H
Resolution 4K (3840 x 2160); 5M (2880 x 1620); 4M (2560 x 1440); 1080p (1920 x 1080); 960H (960 x 576/960 x 480)
Day/Night Auto(ICR)/Color/B/W
BLC BLC; HLC; WDR; HLC-Pro
WDR 120dB
White Balance Auto;White balance area
Gain Control Auto/Manual
Noise Reduction 3D NR
Smart Lighting Smart IR
Defog Electronic defog
Mirror Yes
Privacy Masking Off/On (8 areas, rectangle)
Certification
Certifications

CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035 FCC: 47 CFR FCC Part 15, Subpart B; UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14

Port
Video Port Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power
Power Supply 12VDC ±30%
Power consumption Max 6.4W (12VDC, IR on)
Environment
Operating Conditions

–40 °C to +60 °C (–40 °F to +140 °F)
<95% (non-condensation)

Storage Conditions –40 °C to +60 °C (–40 °F to +140 °F)
<95% (non-condensation)
Ingress Protection IP67
Construction
Casing Metal front cover + plastic rear barrel + metal bracket
Dimensions 240.7 mm × 90.7 mm × 90.4 mm (9.48" × 3.57" × 3.56")
Net Weight 410g (0.90 lb)
Gross Weight 616g (1.36lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
