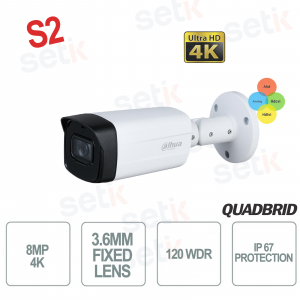

Dahua 4K HDCVI 8MP Camera with IR 80m and Starlight Technology

Dahua 4K HDCVI 8MP Camera with IR 80m and Starlight Technology
BEST PRICE -57%

HAC-HFW1801TH-I8-S2 is an 8MP HDCVI bullet camera, ideal for video surveillance in outdoor and indoor environments. Equipped with a 4K CMOS sensor and 3.6mm fixed lens, it offers detailed images even in low light conditions thanks to Starlight technology and the IR illuminator with a range of up to 80 meters . It supports CVI / TVI / AHD / CVBS video outputs, ensuring compatibility with different systems. The 120 dB WDR function ensures clear vision in scenes with strong light contrasts, while the IP67 protection makes it resistant to dust and water, suitable for installations in difficult environments. With a maximum power consumption of 6.4 W and 12 VDC power supply. Dahua

Technical Data Sheet

Reference: HAC-HFW1801TH-I8-S2

Brand: Dahua

EAN: 6923172543493

Disponibilità: 13

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

HAC-HFW1801TH-I8-S2 | 4IN1 OUTDOOR CAMERA 3.6mm FIXED LENS 4K 8MP Dahua

The Dahua HAC-HFW1801TH-I8-S2 is an 8MP HDCVI bullet camera designed to deliver high-definition images in outdoor and indoor environments. Equipped with a 4K CMOS sensor and 3.6mm fixed lens, it guarantees a maximum resolution of 3840×2160 pixels at 15 fps. Starlight technology allows clear vision even in low light conditions, supported by an IR illuminator with a range of up to 80 meters. The camera offers advanced features such as WDR 120 dB, 3D NR, Smart IR and Super Adapt, ensuring clear and detailed images in different light conditions. 4-in-1 compatibility (CVI / TVI / AHD / CVBS) makes it versatile for different system configurations. With IP67 certification, it is resistant to dust and water, ideal for installations in harsh environments.

Main specifications:

- 4K Ultra HD resolution: 8MP CMOS sensor for detailed images.

- 3.6mm fixed lens: wide angle view ideal for outdoors.

- Starlight technology: excellent visibility in low light conditions.

- IR up to 80m: Infrared illuminators for clear night vision.

- IP67 protection: dustproof and waterproof, perfect for outdoor use.

Further details

3.6mm fixed optics:
It offers a wide viewing angle, ideal for monitoring outdoor areas such as entrances, parking lots or perimeters. The lens is designed to ensure image clarity and precision.
4K Resolution (8MP):
Thanks to the 1/2.7" 8 Megapixel CMOS sensor, the camera provides ultra high definition images, allowing you to capture every little detail in any scenario.

Starlight Technology:
Optimizes visibility in low light conditions, ensuring color images even in night or poorly lit environments, improving subject recognition.

Smart IR illumination up to 80 meters:
Intelligent infrared adapts to the distance of objects, avoiding overexposure and maintaining clear images even in total darkness, with a range of up to 80 meters.
IP67 Protection:
The water and dust resistant housing makes this camera perfect for outdoor use, ensuring durability even in extreme weather conditions.

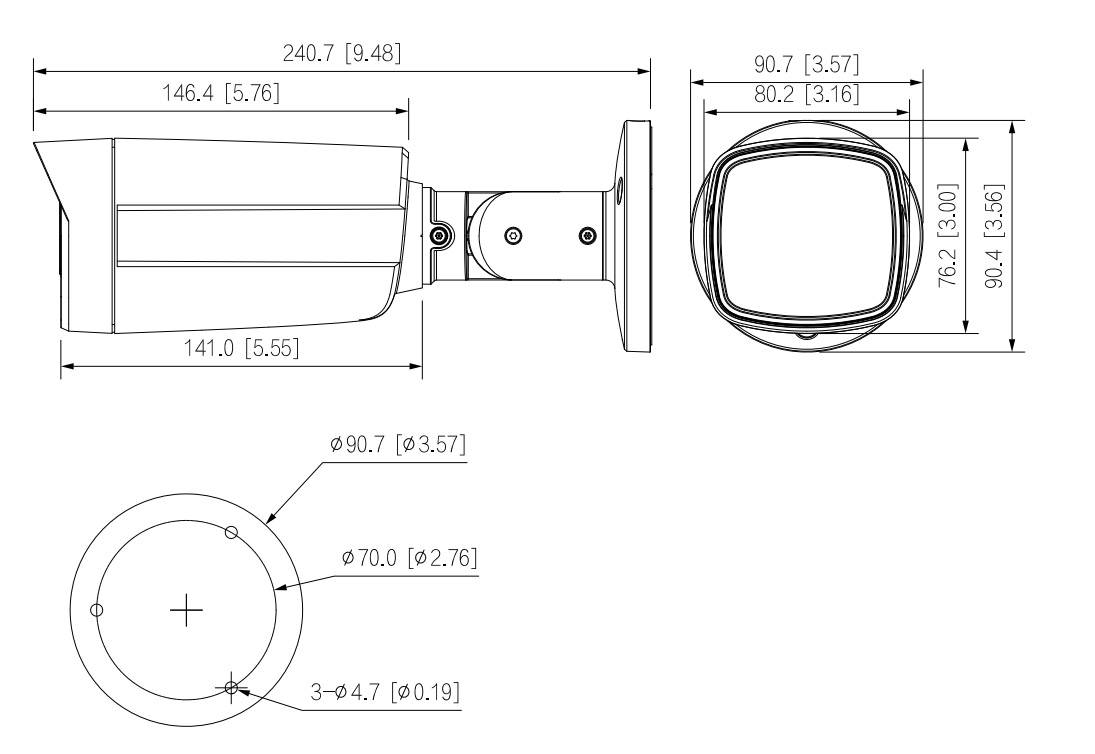

HAC-HFW1801TH-I8-S2 dimensions

Technical data sheet

Model

HAC-HFW1801TH-I8-S2

Room
Pixel 8 MP
Image Sensor 4K CMOS
Max. Resolution 3840 (H) × 2160 (V)
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s
Min. Illumination 0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on)
Y/N Ratio >65dB
Illumination Distance 80 m (262.47 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (IR light)
Lens
Lens Type Fixed focal
Lens Mount M12
Focal Length 3.6mm
Max. Openings F2.0
Field of View H: 88°; V: 46°; D: 105°
Iris Control Fixed
Close Focus Distance 1.9 m (6.23 ft)
Video
Video Frame Rate CVI: PAL: 4K@15fps; 5M@25fps; 4M@25fps; 1080p@25fps NTSC: 4K@15fps; 5M@25fps; 4M@30fps; 1080p@30 fps TVI: PAL: 4K@15 fps NTSC: 4K@15 fps AHD: PAL: 4K@15 fps NTSC: 4K@15 fps CVBS: PAL: 960H NTSC: 960H
Resolution 4K (3840 x 2160); 5M (2880 x 1620); 4M (2560 x 1440); 1080p (1920 x 1080); 960H (960 x 576/960 x 480)
Day/Night Auto(ICR)/Color/B/W
BLC BLC; HLC; WDR; HLC-Pro
WDR 120dB
White Balance Auto;White balance area
Gain Control Auto/Manual
Noise Reduction 3D NR
Smart Lighting Smart IR
Defog Electronic defog
Mirror Yes
Privacy Masking Off/On (8 areas, rectangle)
Certification
Certifications

CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035 FCC: 47 CFR FCC Part 15, Subpart B; UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14

Port
Video Port Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power
Power Supply 12VDC ±30%
Power consumption Max 6.4W (12VDC, IR on)
Environment
Operating Conditions

–40 °C to +60 °C (–40 °F to +140 °F)
<95% (non-condensation)

Storage Conditions –40 °C to +60 °C (–40 °F to +140 °F)
<95% (non-condensation)
Ingress Protection IP67
Construction
Casing Metal front cover + plastic rear barrel + metal bracket
Dimensions 240.7 mm × 90.7 mm × 90.4 mm (9.48" × 3.57" × 3.56")
Net Weight 410g (0.90 lb)
Gross Weight 616g (1.36lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
