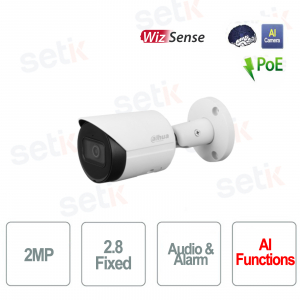

Dahua 2MP AI IP Camera with 2.8mm Lens and Starlight Night Vision - White

Dahua 2MP AI IP Camera with 2.8mm Lens and Starlight Night Vision - White
-57%

IPC-HFW2241S-S - is a 2MP AI IP bullet camera, white , with a 2.8 mm fixed lens (F1.6) and a wide 107° viewing angle, ideal for outdoor installations thanks to its IP67 protection. It integrates intelligent functions such as Perimeter Protection, Starlight Technology for night vision up to 0.002 lux, and AI algorithms for accurate detection of people and vehicles. Thanks to the 1/2.8" CMOS sensor and Smart H.265+ encoding, it guarantees clear images and optimized storage space. It supports microSD up to 256 GB, PoE power supply and a built-in microphone. Dahua

Technical Data Sheet

referencia : IPC-HFW2241S-S

brand : Dahua

EAN: 6923172539823

Disponibilità: 3

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

IPC-HFW2241S-S | 2-megapixel ONVIF® POE outdoor IP camera with artificial intelligence (AI) - white


Dahua

The Dahua IPC-HFW2241S-S is a 2MP bullet IP camera with a 2.8 mm fixed lens, designed to ensure intelligent surveillance in any lighting conditions thanks to Starlight technology and IP67 protection. Equipped with AI functions for accurate detection of people and vehicles, it integrates a microphone, night vision up to 30 m, microSD recording up to 256 GB and Smart H.265+ compression to save bandwidth and space.

Main specifications:

- Full HD 2MP resolution (1920 × 1080)

- 2.8 mm fixed optics with 107° angle

- AI with Perimeter Protection and SMD Plus

- IR night vision up to 30 meters

- IP67 protection and integrated microphone

- H.265+/H.264+ compression and PoE support

Further details

Resolution:
The camera offers a maximum resolution of 1920×1080 pixels (2MP) at 25/30 fps, ensuring smooth, high-definition images even in low light conditions thanks to the 1/2.8 CMOS sensor .
Optics :
Equipped with a 2.8mm fixed lens (F1.6), it provides a wide 107° horizontal viewing angle , ideal for monitoring large areas with a single device. The vertical field of view is 56° and diagonal 127° .
SMD Plus :
This advanced AI feature can intelligently distinguish people and vehicles from irrelevant objects (such as leaves, animals, lights), reducing false alarms in motion notifications.

Perimeter Protection:
Thanks to the integrated deep learning algorithm, Perimeter Protection enables accurate detection of intrusions and line crossings , identifying the type of subject (human or vehicle) with high precision.
Built-in microphone:
It includes an omnidirectional microphone with G.711a/G.711Mu/PCM/G.726 audio compression, which also allows you to acquire audio from the monitored scene, useful for recordings or audio-visual alarms.
PoE Power Supply:
Compatible with IEEE 802.3af PoE standard , the camera can be powered directly via network cable, simplifying installation and eliminating the need for a separate power supply .
IPC-HFW3441T-ZAS camera dimensions diagram

Technical data sheet

Model IPC-HFW2241S-S
Room
Image Sensor 1/2.” 2Megapixel progressive scan CMOS
Effective Pixel 1920 (H) ×1080 (V)
ROM/RAM 128 MB/128MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
Min. Illumination

0.002 Lux@F1.6 (color, 30 IRE)

0.0002 lux@F1.6 (black and white, 30 IRE)

0 lux (illuminator on)

S/N Ratio

> 56 dB

IR Distance 30 m (98.43 ft) (IR LED)
IR On/Off Control Auto/Manual
IR LEDs 1 (IR LED)
Pan/Tilt/Rotation Range Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Focal Length 2.8mm
Mount Type M12
Focal Length 2.8 mm
Max. Openings F1.6
Field of View Horizontal: 107°
Vertical: 56°
Diagonal: 127°
Iris Type Fixed
Close Focus Distance 0.7 m (2.30 ft)
DORI Distance
Lens Detect Observe Recognize Identify

2.8 mm

43.9 m

(144.03 ft)

17.5 m

(57.41 ft)

8.8 m

(28.87 ft)

4.4 m

(14.44 ft)

3.6 mm

58.9 m

(193.24 ft)

23.6 m

(77.43 ft)

11.8 m

(38.71 ft)

5.9 m

(19.36 ft)

Intelligence
IVS (Perimeter Protection) intrusion, Tripwire; (The two functions support the classification and accurate detection of vehicle and human)
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Compression H.265; H.264; H.264H; H.264B; MJPEG(only supported by sub stream)
Smart Codec Smart H.265+/ Smart H.264+
Video Frame Rate

Main stream (1920 × 1080@1–25/30 fps) sub stream (704 × 576@1–25 fps/704 × 480@1–30 fps)

* The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity

Streaming Capability 2 Streams
Resolution

1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control CBR/VBR
Video Bit Rate

H.264: 32 Kbps–6144 Kbps H.265: 12 Kbps–6144 Kbps

Day/Night Auto(ICR) / Color / B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaption (SSA) Yes
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto; manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Image Stabilization Electronic Image Stabilization (EIS)
Region of interest Yes (4 areas)
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 4 Areas
Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; PMC; G726;
Alarm
Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motor detector; video tampering; tripwire; intrusion; SMD; voltage detection; security except

Network
Ethernet RJ-45 (10/100 Base-T)
SDK and API Yes
Protocol

IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP; RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP; Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP

Cyber Security

Video encryption; Firmware encryption; Configuration encryption; Digests; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrades

Interoperability ONVIF®(Profile S/Profile G);CGI;P2P;Milestone;Genetec
User/Host

6 (Total bandwidth: 36 M)

Edge Storage FTP; SFTP; Micro SD Card (support max. 256G); NAS
Browser IE, Chrome Firefox
Management Software DSS, DMSS
Smartphone iOS, Android
Certification
Certifications CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power
Power Supply 12V DC/PoE (802.3af)
Power Consumption

Basic: 2.1W (12VDC); 2.4W (PoE)

Max. (ICR + H.265 + max. resolution + main stream + IR intensity + WDR +IVS): 4.2 W (12 VDC); 5.1W (PoE)

Environment
Operating Conditions -40°C to +60°C (-40°F to +140°F)
Operation Humidity ≤95%
Storage Conditions -40°C to +60°C (-40°F to +140°F)
Ingress Protection IP67
Structure
Casing Metal
Dimensions 166.2 mm × 70.0 mm × 70.0 mm (6.54" × 2.76" × 2.76") (L × W × H)
Net Weight 480 g (1.06 lb)
Gross Weight 590 g (1.30 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
