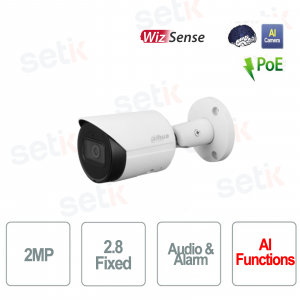

IPC-HFW2241S-S | TELECAMERA IP ONVIF® POE DA ESTERNO - 2 MEGAPIXEL CON INTELLIGENZA ARTIFICIALE - COLORE BIANCO

La Dahua IPC-HFW2241S-S è una telecamera bullet IP da 2MP con ottica fissa da 2.8 mm, progettata per garantire sorveglianza intelligente in qualsiasi condizione di luce grazie alla tecnologia Starlight e alla protezione IP67. Dotata di funzioni AI per la rilevazione accurata di persone e veicoli, integra microfono, visione notturna fino a 30 m, registrazione su microSD fino a 256 GB e compressione Smart H.265+ per risparmio banda e spazio.
Specifiche principali:
- Risoluzione Full HD 2MP (1920 × 1080)
- Ottica 2.8 mm fissa con angolo di 107°
- AI con Perimeter Protection e SMD Plus
- Visione notturna IR fino a 30 metri
- Protezione IP67 e microfono integrato
- Compressione H.265+/H.264+ e supporto PoE
Ulteriori dettagli
✅ Perimeter Protection:

Scheda tecnica
Model | IPC-HFW2241S-S | |||||||||||||||
Camera | ||||||||||||||||
Image Sensor | 1/2.” 2Megapixel progressive scan CMOS | |||||||||||||||
Effective Pixel | 1920 (H) ×1080 (V) | |||||||||||||||
ROM/RAM | 128 MB/128MB | |||||||||||||||
Scanning System | Progressive | |||||||||||||||
Electronic Shutter speed | Auto/Manual, 1/3~1/100000s | |||||||||||||||
Min. Illumination |
0.002 Lux@F1.6 (colore, 30 IRE) 0.0002 lux@F1,6 (bianco e nero, 30 IRE) 0 lux (illuminatore acceso) |
|||||||||||||||
S/N Ratio |
> 56 dB |
|||||||||||||||
IR Distance | 30 m (98.43 ft) (LED IR) | |||||||||||||||
IR On/Off Control | Auto/ Manual | |||||||||||||||
IR LEDs | 1 (IR LED ) | |||||||||||||||
Pan/Tilt/Rotation Range | Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360° | |||||||||||||||
Lens | ||||||||||||||||
Lens Type | Fixed-focal | |||||||||||||||
Focal Length | 2.8mm | |||||||||||||||
Mount Type | M12 | |||||||||||||||
Focal Length | 2.8 mm | |||||||||||||||
Max. Aperture | F1.6 | |||||||||||||||
Field Of View | Horizontal: 107° Vertical: 56° Diagonal: 127° |
|||||||||||||||
Iris Type | Fixed | |||||||||||||||
Close Focus Distance | 0.7 m (2.30 ft) | |||||||||||||||
DORI Distance |
|
|||||||||||||||
Intelligence | ||||||||||||||||
IVS (Perimeter Protection) | intrusion, Tripwire; (The two functions support the classification and accurate detection of vehicle and human) | |||||||||||||||
Smart Serch | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos | |||||||||||||||
Video | ||||||||||||||||
Compression | H.265; H.264; H.264H; H.264B; MJPEG(only supported by sub stream) | |||||||||||||||
Smart Codec | Smart H.265+/ Smart H.264+ | |||||||||||||||
Video Frame Rate |
Main stream (1920 × 1080@1–25/30 fps) sub stream (704 × 576@1–25 fps/704 × 480@1–30 fps) * The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total enconding capacity |
|||||||||||||||
Streaming Capability | 2 Streams | |||||||||||||||
Resolution |
1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
|||||||||||||||
Bit Rate Control | CBR/VBR | |||||||||||||||
Video Bit Rate |
H.264: 32 Kbps–6144 Kbps H.265: 12 Kbps–6144 Kbps |
|||||||||||||||
Day/Night | Auto(ICR) / Color / B/W | |||||||||||||||
BLC | Yes | |||||||||||||||
HLC | Yes | |||||||||||||||
WDR | 120 dB | |||||||||||||||
Scene Self-adaption (SSA) | Yes | |||||||||||||||
White Balance | Auto/natural/street lamp/outdoor/manual/regional custom | |||||||||||||||
Gain Control | Auto; manual | |||||||||||||||
Noise Reduction | 3D NR | |||||||||||||||
Motion Detection | OFF/ON (4 areas, rectangular) | |||||||||||||||
Image Stabilization | Electronic Image Stabilization (EIS) | |||||||||||||||
Region Of interest | Yes (4 areas) | |||||||||||||||
Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) | |||||||||||||||
Mirror | Yes | |||||||||||||||
Privacy Masking | 4 Areas | |||||||||||||||
Audio | ||||||||||||||||
Built-in MIC | Yes | |||||||||||||||
Audio Compression | G.711a; G.711Mu; PMC; G726; | |||||||||||||||
Alarm | ||||||||||||||||
Alarm Event |
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; moton detecton; video tampering; tripwire; intrusion; SMD; voltage detection; security excepton |
|||||||||||||||
Network | ||||||||||||||||
Ethernet | RJ-45 (10/100 Base-T) | |||||||||||||||
SDK and API | Yes | |||||||||||||||
Protocol |
IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP; RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP; Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP |
|||||||||||||||
Cyber Security |
Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
|||||||||||||||
Interoperability | ONVIF®(Profile S/Profile G);CGI;P2P;Milestone;Genetec | |||||||||||||||
User/Host |
6 (Total bandwidth: 36 M) |
|||||||||||||||
Edge Storage | FTP; SFTP; Micro SD Card (support max. 256 G); NAS | |||||||||||||||
Browser | IE, Chrome Firefox | |||||||||||||||
Management Software | DSS, DMSS | |||||||||||||||
Smartphone | IOS, Android | |||||||||||||||
Certification | ||||||||||||||||
Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 | |||||||||||||||
Power | ||||||||||||||||
Power Supply | 12V DC/PoE (802.3af) | |||||||||||||||
Power Consumption |
Basic: 2.1W (12VDC); 2.4W (PoE) Max. (ICR + H.265 + max. resolution + main stream + IR intensity + WDR +IVS): 4.2 W (12 VDC); 5.1 W (PoE) |
|||||||||||||||
Environment | ||||||||||||||||
Operating Conditions | -40°C to +60°C (-40°F to +140°F) | |||||||||||||||
Operation Humidity | ≤95% | |||||||||||||||
Storage Conditions | -40°C to +60°C (-40°F to +140°F) | |||||||||||||||
Ingress Protection | IP67 | |||||||||||||||
Structure | ||||||||||||||||
Casing | Metal | |||||||||||||||
Dimensions | 166.2 mm × 70.0 mm × 70.0 mm (6.54" × 2.76" × 2.76") (L × W × H) | |||||||||||||||
Net Weight | 480 g (1.06 lb) | |||||||||||||||
Gross Weight | 590 g (1.30 lb) |
