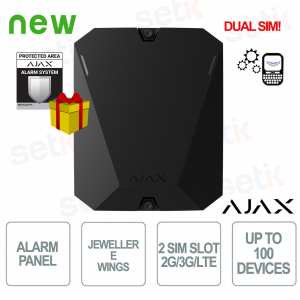

Ajax Hub BP Jeweller Black: Wireless Alarm Control Panel with Long Battery Life and Maximum Security

Ajax Hub BP Jeweller Black: Wireless Alarm Control Panel with Long Battery Life and Maximum Security

 

149623.263.BL1 # 149623 | The black Ajax Hub BP Jeweller ensures continuous security even without a power supply, thanks to its fully battery-powered operation and secure Jeweller and Wings radio communication. It supports up to 100 wireless devices, two 2G/3G/LTE SIM cards, and offers instant alarm notifications with photo delivery in just 9 seconds. The communication range reaches 2,000 m in open space, with advanced protection against jamming and spoofing. The compact black design blends into any environment, ensuring high performance in remote installations. In Battery Saver mode, it can operate for months while maintaining reliable monitoring, authentication, and event sending. Ajax

Technical Data Sheet

>> FREE AJAX STICKER SIGN

referencia : 149623.263.BL1

brand : Ajax Systems

EAN: 4823114055690

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Establecido en 2011, Ajax Systemconstruye sistemas inalámbricos de incendio y alarma con la tecnología inalámbrica JEWELLER que le permite monitorear de manera segura todos los dispositivos de red conectados. Ajax System ofrece soluciones para el hogar, la oficina o las actividades comerciales, gestionables a través de la App, siempre actualizadas y compatibles con los sistemas iOS y Android. Los sistemas de alarma de Ajax System son fáciles de instalar, de hecho sólo toma 15 segundos conectar la unidad de control a los sensores. Además, pueden integrarse con las cámaras de vigilancia, tienen un margen de error casi nulo y, en caso de peligro, en menos de 150 milisegundos envían una notificación (sms, push o call).

[short_description] =>

Ajax SystemsAjax Systems


Los sistemas de alarma Ajax system utilizan la última tecnología inalámbrica que hace que todos los productos sean fiables y estén siempre conectados. Además de su excelente rendimiento, los sistemas de alarma Ajax se distinguen por su diseño moderno y elegante.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Sistemas de incendio y alarma de última generación - Ajax System [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

CARTEL GRATUITO DE TVCC×

Con todos >> KITS AJAX

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

149623.263.BL1 | WIRELESS CONTROL UNIT WITH PHOTO VERIFICATION SUPPORT - CONNECTABLE VIA WI-FI, ETHERNET, AND TWO SIM CARDS (2G/3G/LTE)

>> FREE AJAX STICKER SIGN


Ajax

The Ajax Hub BP Jeweller, 149623.263.BL1, black, is a wireless alarm control panel designed to ensure continuous security even in remote sites without a power supply, thanks to battery operation and the encrypted Jeweller and Wings protocols that ensure immediate delivery of alarms and photos. With a communication range of up to 2,000 m in open space, dual 2G/3G/LTE SIM slots, and advanced anti-jamming protection, it offers professional reliability in any condition. Battery Saver mode extends battery life for months, maintaining constant monitoring, device authentication, and instant event sending. Ideal for installations where continuity and performance are crucial.

Main specifications:

- Secure and encrypted radio communication with Jeweller and Wings protocols

- Operating range up to 2,000 m in open space

- Dual micro SIM slot (2G/3G/LTE) for network continuity

- Alarm notifications, jamming and first photos in about 9 seconds

- Battery Saver mode with up to 23 months of battery life (NB batteries)

- Support up to 100 devices, 50 users and 50 rooms

- Simple installation, stable operation without external power supply

Further details

✅ Capacity:
The system supports up to 100 wireless devices , 50 users, 50 rooms, and 9 security groups, enabling scalable management of even complex systems. This capability allows for the integration of sensors, sirens, and additional modules while maintaining centralized and optimized management.
✅ Jeweler Communication :
Jeweller radio technology ensures ultra-reliable transmission of alarms, events, and measurements up to 2,000 m in open space, with advanced encryption and device authentication to prevent spoofing. The system performs regular polling to constantly monitor the operational status of each connected device.
✅ Wings Communication :
The Wings protocol is dedicated to the transmission of photos and large data packets up to 1,700 m, ensuring rapid delivery — first photo in about 9 seconds — thanks to optimized upload algorithms, delivery confirmation and automatic backup in the event of communication interruption.
✅ Communication channels :
 Control is via a dual 2G/3G/LTE SIM slot, ensuring redundancy and network continuity even in areas with unstable coverage. The system can also use an external antenna to boost reception and always ensure an active channel to the central monitoring station (CMS).
✅ Photo verification:
Thanks to the Wings protocol and compatible detectors, the system offers immediate photo verification in the event of an alarm, allowing the user or the control panel to quickly distinguish a real event from a false alarm. Rapid image delivery optimizes response times and improves the effectiveness of intervention.
✅ Monitoring:
The Hub sends real-time notifications via app, SMS, or CMS, always keeping an eye on device and system status. Constant polling cycles ensure continuous updates even in Battery Saver mode, offering reliable and uninterrupted monitoring.
✅ Anti-sabotage:
The system integrates advanced protections against jamming, spoofing attempts, and communication loss, immediately notifying any interference or tampering. Encrypted radio communication and authentication controls make the entire ecosystem resistant to attacks and reliable even in critical scenarios.

Technical data sheet

149623.263.BL1
Capacity
Wireless Ajax devices up to 100
Specifically, up to 10 sirens or keypads with a built-in siren and up to 5 range extenders.
Ajax NVRs up to 36
Ajax cameras up to 224 via Ajax NVRs and up to 492 standalone
Third-party IP cameras up to 10 when using RTSP via SDK
up to 224 when using ONVIF via Ajax NVRs
Users up to 50
  • Any number of admin users within the hub limit.
  • PRO accounts for installers.
  • PRO accounts for installation and monitoring companies.
  • Access management for users.
Automation scenarios up to 32
  • By alarm
  • By schedule
  • By arming/disarming
  • By temperature, humidity, CO2 concentration
  • By pressing Button
  • By touching LightSwitch.
Security groups up to 9
Rooms up to 50
Event log up to 1,000 events
Events are saved on the non-volatile onboard flash memory.
Wireless communication
Jeweler communication technology Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Radio frequency bands 866.0 - 866.5 MHz
868.0 - 868.6 MHz
868.7 - 869.2 MHz
905.0 - 926.5 MHz
915.85 - 926.5 MHz
921.0 - 922.0 MHz
Depence on the sales reaction
Maximum effective radiated power (ERP) < 25 mW
Featured automatic power control to reduce power consumption and noise interference.
Radio signal modulation GFSK
Wings communication range Up to 2,000 m
Up to 6,500 ft
Between the hub and connected devices (in an open space).
Maximum range depends on the connected device.
Polling interval from 12 to 300 s
Adjusted by PRO or user with admin rights in the Ajax apps.
Encrypted radio communication All the data stored and transmitted are protected by block encryption featuring a dynamic key.
Radio frequency hopping To prevent radio interference and radio signal interception.
Wings communication technology Proprietary wireless communication technology to transmit photo verifications.
Key features:
  • Two-way communication.
  • Block encryption featuring a dynamic key.
  • Advanced anti-sabotage.
  • Package re-uploading in case of transmission errors.
  • Photo delivery check.
Radio frequency bands 866.0 - 866.5 MHz
868.0 - 868.6 MHz
868.7 - 869.2 MHz
905.0 - 926.5 MHz
915.85 - 926.5 MHz
921.0 - 922.0 MHz
Depence on the sales reaction
Maximum effective radiated power (ERP) < 25 mW
Featured automatic power control to reduce power consumption and noise interference.
Radio signal modulation GFSK
Radio signal range Up to 2,000 m
Up to 6,500 ft
Between the hub and connected devices (in an open space). Maximum range depends on the connected device.
Encrypted radio communication All the data stored and transmitted are protected by block encryption featuring a dynamic key.
Radio frequency hopping To prevent radio interference and radio signal interception.
Recommendations Hub BP Jeweler is designed for indoor use only.
Communication channels
Cellular 2 micro-SIM slot
Cellular bands 2G
GSM900/DCS1800 (B3/B8)
3G
WCDMA 850/900/2100 (B1/B5/B8)
4G (LTE)
FDD B1/B3/B5/B7/B8/B20
Automatic switching between communication channels between SIM cards — up to 4 minutes
Communication channels prioritization 1. Micro SIM slot 1
2. Micro SIM slot 2
Auto APN The APN auto select feature allows setting access point automatically based on the installed SIM card.
External antenna connectors Jeweler
Wings
4G (LTE)
The system will notify of the damaged antenna. Ajax ExternalAntenna is sold separately.
Alarm transmission system categories SP5
Control panel operation method pass-through
Signaling security S2
Substitution security.
Information security I2
Notifications
Supported notification types
  • Push notifications
  • SMS
  • Calls
Event types
  • Alarms
  • Malfunctions
  • Security Mode Change
  • System Events
  • Non-security Alerts
  • Automation Devices
Notification types are configured individually for each user. Notifications can be customized for A–D schemes according to EN 50131 requirements.
Photo verification
Photo verification types
  • Photo by alarm
  • Photo by scenarios
  • Photo on demand
  • Photo by schedule
The Photo by Schedule feature is available for hubs with OS Malevich 2.19 firmware version or later
Photo delivery time up to 9 s
by default.
Photo resolution up to 640 × 480 pixels
Depends on the detector.
Number of photos in a series: from 1 to 5 pictures
Monitoring
Supported protocols
  • SIA (DC-09)
  • SurGard (Contact ID)
  • ADEMCO 685
  • Other proprietary protocols
Event types
  • System alarms and events
  • Panic button coordinates
  • Photo verification
Power Supply
External 4.2–16 V⎓, up to 2 A
Zinc-air battery or external power source.
Internal 4.2–16 V⎓, up to 2 A
Rechargeable lead-acid and LiFePO4 batteries (not included). Non-rechargeable LTC batteries (not included).
Device operating DC voltage range 3.5–16 V⎓
Autonomous operation
On external battery in full function mode up to 18 months
On a 12 V⎓, 600 Ah, zinc-air non-rechargeable external battery (not included).
On external battery in Battery saving mode more than 5 years
On a 12 V⎓, 600 Ah, zinc-air non-rechargeable external battery (not included).
On internal battery in a Battery saving mode up to 17 months
On at 7.2 V⎓, 95 Ah, LTC non-rechargeable Internal battery NB (7.2V/95Ah) (not included).
up to 4 months
On at 6.4 V⎓, 27 Ah, LiFePO4 rechargeable Internal battery RB (6.4V/27Ah) (not included).
up to 2 months
On at 12 V⎓, 7 Ah, lead-acid rechargeable internal battery (not included).
Sabotage protection
Tamper alarm Notifications on attempts to detach the device from the surface or remove it from the mounting panel.
Protection against spoofing devices' authentication
Frequency hopping The hub sends notifications to all users and the security company of jamming or losing connection with the devices.
Jamming alert Hub BP Jeweler analyzes the channel's noise level and the quality of communication with added devices and sends an alert in 30 seconds.
Enclosure
Color Black
Dimensions 196 × 238 × 100 mm
7.72″ × 9.37″ × 3.94″
Weight 1,010 g
5.63 oz
Operating temperature range from −10°C to +40°C
from 14°F to 104°F
Operating humidity up to 75%
Casing protection class IP40
Complete set Hub BP Jeweler
Casing
Installation kit
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
