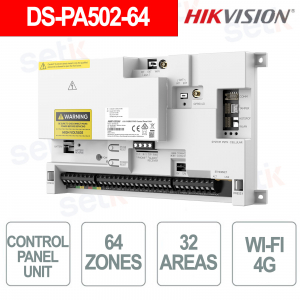

DS-PA502-64 AX Hybrid PRO G2 Alarm Control Panel 64 Zones Wi-Fi LAN EN50131 Grade 2 - Hikvision

DS-PA502-64 AX Hybrid PRO G2 Alarm Control Panel 64 Zones Wi-Fi LAN EN50131 Grade 2 - Hikvision

 
ANUNCIOS -35%

DS-PA502-64 - AX Hybrid PRO G2 is a professional intrusion control panel designed for wired and hybrid security systems, with management of up to 64 zones, 64 outputs and 32 areas . It supports dual RS-485 bus with up to 32 devices per bus, as well as keypads, expanders, wireless receivers and dedicated power supplies. It integrates 10/100 Mbps LAN and 2.4 GHz Wi-Fi connectivity, with optional PSTN, GPRS and 4G/LTE modules, dual-path notifications to ARC and ISUP, SIA DC-09, Contact ID and OTAP protocols. It also offers video verification of up to 4 1080p channels , 256 automation scenarios, management of up to 100 operators and 4950 recordable events. Compliant with the EN 50131 Grade 2 standard, it represents a complete and scalable solution for professional alarm systems and advanced security infrastructures. Hikvision

Technical Data Sheet

referencia : DS-PA502-64

brand : Hikvision

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

DS-PA502-64 – HYBRID INTRUSION CONTROL PANEL - 64 ZONES

Hikvision

The Hikvision DS-PA502-64 AX Hybrid PRO G2 is a professional intrusion control panel designed for wired and hybrid security systems, with management of up to 64 zones, 64 outputs and 32 areas . It supports dual RS-485 bus with up to 32 devices per bus, up to 16 keypads, expanders, wireless receivers and 256 automation scenarios. It integrates 10/100 Mbps LAN and 2.4 GHz Wi-Fi , with optional PSTN, GPRS and 4G/LTE modules, as well as dual-path communication towards ARC. The control panel offers video verification of up to 4 1080p channels , support for 32 network cameras, 4950 event recordings and management of up to 100 operators . Compatible with ISUP, SIA DC-09, Contact ID, CSV-IP and OTAP protocols, it complies with the EN 50131 Grade 2 standard for professional security applications.

Main features:

  • Zones/Exits: 64 / 64
  • Areas: 32
  • Bus: dual RS-485
  • Connectivity: LAN and Wi-Fi
  • Optional modules: PSTN, GPRS, 4G/LTE
  • Video verification: 4 channels 1080p
  • Automations: 256 scenarios
  • Users: up to 100 operators
  • Standard: EN 50131 Grade 2

Further details

✅ Areas:
The Hikvision DS-PA502-64 control panel manages up to 64 zones and 64 outputs , with 8 integrated zones , 2 PGM outputs, 2 relay outputs, auxiliary output and output dedicated to the siren, offering high system expandability.
✅ Areas :
 It supports up to 32 independent areas , allowing you to divide and organize the intrusion system into multiple sectors for flexible management of residential, commercial and professional environments.
✅ Bus :
It has 2 Half-Duplex RS-485 buses , each capable of managing up to 32 devices , with a range of up to 500 m and extension up to 7.5 km via bus extenders , supporting different connection topologies.
✅ Connectivity :
It integrates 10/100 Mbps LAN/Ethernet and 2.4 GHz Wi-Fi 802.11 b/g/n , as well as dual-path communication to ARC and support for ISUP, SIA DC-09, CSV-IP and OTAP protocols.
✅ Optional modules :
 It can be expanded with GPRS DS-PC501G, 4G/LTE DS-PC502S and PSTN DS-PM2-P communicators, increasing communication possibilities and ensuring greater flexibility in the transmission of alarm events.
✅ Video verification :
It supports up to 32 IP cameras and video verification of up to 4 channels of 1080p , with 7-second clips and 2 or 5-second pre-recording for more effective visual verification of events.
✅ Automations :
It allows you to configure up to 256 automation scenarios , offering a high level of customization of the system functions based on the specific needs of the security system.
✅ Users:
 It allows the management of 1 administrator, 1 installer and up to 100 operators , as well as 64 Cloud users, 64 remote controls and 100 tags for structured and scalable system access control.
✅ Standard:
Compliant with EN 50131 Security Grade 2 and Environmental Class II , with CE and CB electrical compliance, it is designed for professional intrusion systems with certified security requirements.

Technical data sheet

DS-PA502-64
Inputs (Zones)
Max. Zones 64
On-board zones 8
Bus PIR cameras 24
Outputs
Max. outputs 64
On-board PGM outputs 2
On-board relay outputs 2
Auxiliary Power Output 1
On-board sounder output 1
Areas
Area 32
Peripherals
Keypads 16
8-zone expanders 8
8-relay expanders 16
Wireless receivers 8
Power supply units 15
Video verification
Network camera channels

32
Video verification network camera channels

Up to 4 (1080p)
Video verification clip duration

7 seconds
Pre-record

2 or 5 seconds
Programming
Automation scenarios 256
Event Log
Event log records 4950 including 1000 mandatory in flash memory
User
Admin 1
Installer 1
Max. operators 100
User (Cloud) 64
Authorization devices
Keyfobs

64
Tags

100

Bus interconnection
Bus ports 2
Bus technology Half-Duplex RS-485
Bus wiring 4-Core Alarm Cable (at least 2 × 0.5 mm² + 2 × 0.22 mm²)
Bus topologies Daisy Chain, Cascade, Star, Ring
Range per Bus Up to 500m (Up to 7.5km with bus-extenders, Up to 4km in loop mode, Up to 1km in compatible mode)
Bus extenders for buses Up to 15 pcs, 500m in between
Devices per Bus 32
Communication interfaces
LAN/Ethernet 10/100 Mbps self-adaptive
Wi-Fi 802.11b/g/n (2.4GHz)
GPRS Compatible with DS-PC501G(Optional)
4G/LTE Compatible with DS-PC502S (Optional)
PSTN Compatible with DS-PM2-P(Optional)
ARC connectivity
ARCs 4
Signaling protocols ISUP, Contact ID(PSTN), SIA DC-09, CSV-IP, OTAP
Ack. operation Pass-through
ATS Categories SP3, DP2 (with optional GPRS/4G communicator)
3rd party communicator Compatible with FSK, RDC, IDS modules
Power supply - general
PS type Type A
Quiescent current 130 mA @15VDC (when on battery)
Power supply - primary power supply
Mains Input 100-240VAC 50/60Hz, 0.3A
Power supply capacity 15.3 VDC 2.5 A (0.5 A dedicated to battery)
Power supply - auxiliary power supply
Battery pack 1 × rechargeable sealed lead-acid (SLA) battery (not included by default)
Battery capacity 12VDC, up to 7Ah (≥ 5600 mAh in charged state)
Recommended battery OUTDO OT7-12 (7Ah), Yuasa NP7-12FR (7Ah)
Battery standby Up to 12 hours
Recharge period 24 hours to 80% (5600 mAh)
Floating voltage 13.8VDC
Low energy voltage 11.60±0.5 V (Restore when rise above 11.74±0.5 V)
Cut-off voltage 11.0 VDC for deep-discharge protection
Power supply - auxiliary power output
Output capacity Nominal 14.5VDC 1.5A, range 10.7-15 VDC with up to 120 mV ripple (Vpp)
Output protection 1.7 A resettable eFuse
Power supply - bus power output
Output capacity Nominal 14.5VDC, range 10.7-15 VDC with up to 120 mV ripple (Vpp), max. 20W (shared AUX power output)
Output protection (Shared AUX power output)
Power supply - sounder power output
Output capacity Nominal 14.5VDC 1.0A, range 10.7-15 VDC with up to 120 mV ripple (Vpp)
Output protection 1.3 A resettable eFuse
PGM output
Output capacity 0 VDC with switched (NPN output)
Max. current 200 mA per output
Relay output
Relay output 3A 30VDC, 1A 250VAC
Environmental
Operating temperature -10°C to 50°C (14°F to 122°F), indoor use only
Storage temperature -20°C to 60°C (-4°F to 140°F)
Relative humidity 10% ~ 90% non-condensing
Physical
Dimensions (W × H × D) 231 × 133 × 44 mm
Weight 488 g
Compliance
Electrical compliance CE, CB
EN 50131 Security Grade 2, Environmental Class II
