125732.315.WH | WIRELESS FIRE CONTROL UNIT (CIE) SUPPORTING INTRUSION PROTECTION DEVICES


Ajax

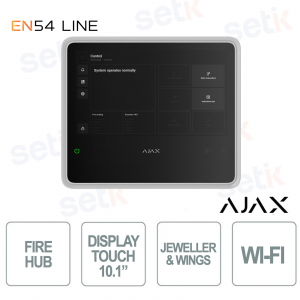

The Ajax EN54 Fire Hub Jeweler, 125732.315.WH , is a wireless fire alarm control panel with a 10.1” touchscreen designed for integrated security management, combining fire detection, intrusion protection, and automation. Compliant with EN 54 standards and certified for reliability, it offers wireless communication up to 1,800 m, management of up to 200 devices, and real-time notifications via the Ajax app. Thanks to advanced features such as visual alarm verification, tamper protection, and detailed event logging, it ensures professional security and maximum responsiveness in any scenario .

Main specifications:

- 10.1" IPS touch screen (1024 × 600 px)

- Wireless connection up to 1,800 m

- Support up to 200 devices

- Visual alarm verification with photos and videos

- Integrated sabotage protection

- Complies with EN 54-2, EN 54-4, EN 54-13, EN 54-21, EN 54-25

Further details

Capacity:
It supports up to 200 Ajax devices in any ratio, with up to 5 repeaters, 10 sirens, and multiple keypads or control panels. It manages up to 100 fire zones and can be configured for residential, commercial, and industrial applications.
Communication :
It uses Jeweller, Wings, and TurboWings radio protocols with a range of up to 1,800 m in open terrain. It includes firmware update transmission, error-reloading, and photo-verification support.
Communication channels :
Ethernet up to 100 Mbps, Wi-Fi up to 72 Mbps, dual SIM slot for 2G/4G (LTE) networks, with instant automatic switching and configurable priority between channels.
Monitoring:
Integration with Ajax apps and compatibility with alarm receiving centers via SurGard (Contact ID) and SIA DC-09 (IP) protocols. Offers real-time notifications, event history, and remote management.
Anti-sabotage protection:
Disassembly detection, device authentication, counterfeit protection, radio jamming detection and communication loss reported in 36 seconds.
Photo verification:
Support for visual verification of alarms via Ajax MotionCam devices and compatible cameras, with sending images or clips for quick assessment of the emergency.
Screen:
10.1" IPS touchscreen display with 1024x600 resolution, 50,000-hour backlight life, and a configurable multilingual interface. Provides system status, notifications, and direct control.
EN54 Standard:
Complies with EN 54-2, EN 54-4, EN 54-13, EN 54-21 and EN 54-25 standards, with European certifications for professional fire protection systems and advanced safety.

Technical data sheet

125732.315.WH

Capacity
Devices up to 200
Supports Ajax devices from the EN54 product line, wireless intrusion devices, and resettable buttons for manual fire alarm activation. Specifically, up to 10 intrusion sirens or keypads with a built-in buzzer and up to 5 EN54 Fire ReX Jeweler devices.
Fire zones up to 40
Alerts about fire in separate zones. Every zone may include multiple rooms.
Ajax NVRs up to 36
Ajax cameras up to 224 via Ajax NVRs and up to 492 standalone
Third-party IP cameras up to 10 when using RTSP via SDK
up to 224 when using ONVIF via Ajax NVRs
Users up to 200
  • Any number of admin users within the CIE limit.
  • PRO accounts for installers
  • PRO accounts for installation and monitoring companies
  • Access management for users
Automation scenarios up to 64
  • By alarm
  • By schedule
  • By arming/disarming
  • By temperature, humidity, CO2 concentration
  • By pressing Button
  • By touching LightSwitch
Rooms up to 80
Event log up to 5,000 events
Fire alarm system events. Can be viewed on the CIE display. Events are saved on the non-volatile onboard flash memory.
up to 500 events
Fire alarm, intrusion, and other system events. Can be viewed in the events feed in Ajax apps.
Communication
Jeweler communication technology Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication
  • Advanced sabotage protection
  • Block encryption featuring a dynamic key
  • Instant notifications
  • Remote control and configuration in Ajax apps
Frequency bands 866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
Depends on the sales region.
Maximum effective radiated power (ERP) up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation GFSK
Radio communication range up to 1,800 m
up to 5,900 ft
Between the CIE and connected devices (in an open space). Maximum range depends on the connected device.
Encrypted communication All stored and transmitted data are protected by block encryption featuring a dynamic key.
Frequency hopping To prevent radio interference and jamming.
Wings communication technology Proprietary wireless communication technology to transmit photo verifications and update firmware.
Key features:
  • Two-way communication
  • Advanced sabotage protection
  • Block encryption featuring a dynamic key
  • Data packages reload in case of transmission errors.
  • Photo delivery check.
Frequency bands 866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
Depends on the sales region.
Radio communication range up to 1,800 m
up to 5,900 ft
Between the CIE and connected devices (in an open space). Maximum range depends on the connected device.
Encrypted communication All stored and transmitted data is protected by block encryption featuring a dynamic key.
Frequency hopping To prevent radio interference and jamming.
Communication channels
Ethernet 1 8P8C socket
Up to 100 Mbps.
Cellular 2 micro-SIM slots
Cellular frequencies 2G: GSM900/DCS1800 (B3/B8)
4G (LTE): FDD B1/B3/B5/B7/B8/B20

Wi-Fi 802.11 b/g/n module up to 72 Mbps.
Automatic switching between communication channels Instant switching between Ethernet, Wi-Fi, and SIM.
Instant switching between 4G (LTE), 3G, and 2G networks of one SIM.
Switching between SIMs takes up to 4 minutes.
Communication channels prioritization Ethernet
Wi-Fi
Cellular connection
Communication channels work in parallel to increase the system's reliability.
Most of the data is transmitted via Ethernet.
Notifications
Supported notification types
  • Push notifications
  • SMS
  • Calls
Event types
  • Alarms
  • Video alerts
  • Faults (for fire alarm devices)
  • Malfunctions (for other Ajax devices)
  • Security state change
  • System events
  • Non-security alerts
  • Automation devices
  • Smart lock events
  • Doorbell ringing
The notification types are configured individually for each user.
Monitoring
Supported protocols
  • SIA (DC-09)
  • SurGard (Contact ID)
Event types
  • System alarms and events
  • Panic button coordinates
  • Photo verification
Fire alarm system management
Indication of fire alarms and faults
  • display
  • LED indicators
  • sound
LEDs on the front panel of the CIE and the built-in buzzer notify users of fire alarms in zones, faults, and system states. In case of fire, the CIE also activates visual alarm devices and fire alarm sounders. The CIE display also shows system states and detailed alarm information.
Fire alarm control
  • start evacuation
  • reset
  • mute buzzer
  • silence / resound sounders
  • Override delays (coming soon)
  • indication test
Users with appropriate rights can manage the fire alarm system via these options.
Fire alarm system settings Users with appropriate rights can configure all fire alarm system settings via the CIE.
Event log Stores a detailed log of fire alarms and system events. Capacity: up to 5,000 events.
Photo verification
Photo verification types
  • Photo by alarm
  • Photo by scenario
  • Photo on demand
  • Photo by schedule
  • Photo by arming/disarming
Photo delivery time

up to 9 s
By default.

Photo resolution up to 960 × 720 pixels
Depends on the detector.
Number of photos in a series from 1 to 5 pictures
Additional features
User authorization To manage the fire alarm system via the CIE touch screen, the user must log in by entering a code or presenting a personal access device.
Control
  • codes
  • Tag key fobs (coming soon)
  • Pass cards (coming soon)
Contactless access DESFire® EV1, EV2
ISO14443-A (13.56 MHz)
Access codes up to 200 codes
One code for each user. Defines user access level to security and fire alarm system management.
Duress codes up to 200 personal codes
One code for each user.
Built-in buzzer volume at least 60 dB at a distance of 1 m
volume at least 60 dB at a distance of 3.3 ft
Sound alerts of fire alarms.
volume at least 50 dB at a distance of 1 m
volume at least 50 dB at a distance of 3.3 ft
Sound alerts of faults.
LED indication red
For fire alarms.
yellow
For device faults, tests, and disablements.
green
For power supply status.
Special tool (key) The special tool is used to unlock the housing and replace the internal battery or dismantle the device from the SmartBracket mounting panel. The battery is not included in the CIE complete set.
Display
Diagonal 10.1"
Matrix type IPS
Resolution 1024 × 600 px
Sensor capacitive
Backlight settings Manually adjustable in the CIE on-screen settings
Backlight lifetime 50,000 hours
Guaranteed at 80% brightness
User interface appearance
  • dark
  • light
Interface language Configurable via the CIE touch screen or in the CIE settings in Ajax apps
Outputs
Output 1 Relay output for alerting the monitoring company in case of a system fault. Contact state is normally closed (NC) by default.
Output 2 Relay output for alerting the monitoring company in case of a fire alarm. Contact state is normally open (NO) by default.
Operating mode bistable
External power supply 10–30 V⎓
The relay does not supply power to connected devices.
Energy consumption up to 60 W
In standby mode.
Maximum resistive load up to 2 A at 30 V⎓
Maximum inductive/capacitive load up to 2 A at 30 V⎓
Installation recommendations
The device is designed for indoor use only.
Use GlandBox if power and signal cables are not routed inside the wall.
The device operating voltage is 110–240 V~.
Sabotage protection
Tamper button Notifications about the fault on attempts to detach the device from the surface or remove the mounting panel.
Protection against spoofing device authentication
Connection loss detection after 36 s
Detection time depends on Jeweler settings.
Power supply
External 110–240 V, 50/60 Hz
Up to 0.48 A of mains power consumption.
Internal 7.4 V⎓, 5 Ah/10 Ah
On Rechargeable Li-ion battery not included in the complete set: EN54 Internal Battery (24h) or EN54 Internal Battery (72h).
Autonomous operation
On internal battery up to 24 hours
On EN54 Internal Battery (24h) not included in the complete set. Battery life is based on display activation only when tapped, using W-Fi, Ethernet, and cellular (LTE) communication channels.
up to 72 hours
On EN54 Internal Battery (72h) not included in the complete set. Battery life is based on display activation only when tapped, using W-Fi, Ethernet, and cellular (LTE) communication channels.
Enclosure
Dimensions 263 × 223 × 54 mm
10.35" × 8.78" × 2.11"
Weight 1,526 g
3.36 lbs
Operating temperature range from -10 °C to +40 °C
from 14 °F to 104 °F
Operating humidity up to 75% non-condensing
Protection class IP20
Flammability rating UL 94 V-0
Color White
Complete set EN54 Fire Hub Jeweler
SmartBracket mounting panel
Installation kit
Ethernet cable
Special tool (key)
Quick start guide
Warranty 24 months
