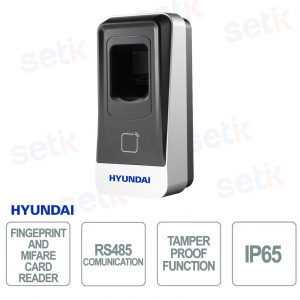

HYU-645 – IP65 Biometric Fingerprint and Mifare Card Reader for Access Control

HYU-645 – IP65 Biometric Fingerprint and Mifare Card Reader for Access Control

nuevo

The HYU-645 is a biometric fingerprint and Mifare card reader for access control, designed to ensure maximum security and reliability for both indoor and outdoor environments. It supports up to 5,000 fingerprints, card reading at a distance of 3–10 cm, and various authentication modes (card only, fingerprint only, or combined). Equipped with RS485 communication with a secure CRC protocol, it stores data in encrypted form and integrates a high-precision CMOS optical module. Thanks to IP65 protection, an anti-sabotage tamper switch, and temperature resistance from -40°C to +70°C, it offers high performance in any condition.

Technical Data Sheet

referencia : HYU-645

brand : Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Fundada en Corea, Hyundai Corporation es un fabricante líder de productos digitales y se destaca en el mercado mundial por su amplia gama de productos industriales, eléctricos y electrónicos. Hyundai Corporation ha entrado en el mundo de la videovigilancia desarrollando y diseñando sistemas de seguridad como cámaras y grabadoras de alta tecnología y diseño. El principal objetivo que persigue la empresa coreana es garantizar la protección y la seguridad de las personas en los hogares, las oficinas y los transportes.

Todos los sistemas de videovigilancia de Hyundai son apreciados y recomendados por los profesionales del sector, sobre todo porque la mayor parte de la gama se basa en la tecnología Hikvision, por lo que son totalmente compatibles.

Los distribuidores oficiales de Hyundai Seguridad son pocos porque hay pocas realidades, como Setik, autorizadas a distribuirlo. En la base de esta política está la voluntad de proteger y salvaguardar la marca, evitando así las elecciones agresivas de los canales.

CATALOGO HYUNDAI: DOWNLOAD

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Productos de seguridad Hyundai para la protección y la seguridad de las personas que se instalen en el hogar, las oficinas y el transporte.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Security,Videosorveglianza Hyundai,Sicurezza Hyundai,Hyundai NEXTGEN,Telecamere Hyundai,Dvr Hyundai [meta_description] => Hyundai Security diseña y desarrolla sistemas de videovigilancia ofreciendo soluciones innovadoras y avanzadas tanto en tecnología como en diseño. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

HYU-645 | BIOMETRIC FINGERPRINT READER AND MIFARE CARD READER FOR ACCESS CONTROL

Dahua

The HYU-645 is a biometric fingerprint and Mifare card reader for access control, ideal for ensuring advanced security in indoor and outdoor environments. With a capacity of up to 5,000 fingerprints and card reading at a range of 3–10 cm, it offers multiple authentication modes and broad compatibility thanks to RS485 communication. Built with IP65 protection and resistant to extreme temperatures, it ensures reliable and long-lasting performance.

Main specifications:

- Biometric reader + Mifare cards

- Capacity up to 5,000 fingerprints

- Authentication mode: card, fingerprint or combined

- Secure RS485 communication with CRC protocol

- IP65 protection and resistance from -40°C to +70°C

- Anti-sabotage tamper and audible warnings

Further details

Authentication method:
It supports multiple login options, including card only, fingerprint only, or card + fingerprint combination, providing flexibility based on your security needs.
RS485 communication :
It uses a stable and secure connection with 19200bps transmission speed and CRC protocol, ensuring secure integration with access control systems.
Anti-sabotage tamper:
Protection system that detects tampering attempts and sends an immediate alarm, safeguarding the integrity of the device.
Card reading range:
Compatible with Mifare cards, it allows a reading distance of between 3 and 10 cm, ensuring quick and reliable identification.

Technical data sheet

HYU-645
Specifications
High-performance 32-bit processor
Fingerprint capacity: Up to 5,000 fingerprints
Footprint comparison mode: 1:1 and 1:N
Comparative impression time: 1:1 <1 sec="" 1:3000="" 1="" 5="" td="">
FAR (False Acceptance Rate): ≤0.001%
FRR (False Rejection Rate): ≤0.01%
Fingerprint recognition: optical module
The built-in card reader supports Mifare cards
Card reading range: 3~10cm
Communication interface: RS485
Transmission rate: 19200bps-N-8-1
LED indicators for power and communication
Incorporate sound alerts
Anti-sabotage tamper
IP65 protection rating
Power supply: 12V DC (±10%)
Operating temperature -40°C ~ +70°C
Operating humidity: 10% ~ 90%, non-condensing
Dimensions: 62 x 132 x 44 mm
Surface mounting
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
